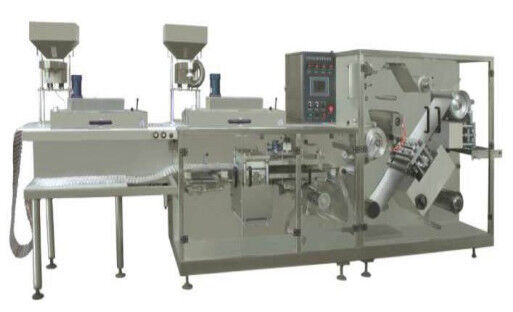

• DPH-260 High Speed Aluminum Aluminum Blister Packing Machine With CE and FDA approved
DPH-260 High Speed Aluminum Aluminum Blister Packing Machine With CE and FDA approved

DPH-260 High Speed Aluminum Aluminum Blister Packing Machine With CE and FDA approved

Product Details:

Place of Origin: Zhejiang Province,China
Brand Name: LTPM CHINA
Certification: CE, GMP, SGS, BV
Model Number: DPH-260

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD46,000
Packaging Details: Wooden Case
Delivery Time: 25 workiing days
Supply Ability: 45 sets/month
Get Best Price Contact Now

Detail Information

Color: Silver Material: SS304
Weight: 2500kg Installed Power: 380V 50Hz
Warranty: 1 Year
High Light:

pharmaceutical process equipment


pharma machinery

Product Description

DPH-260 High Speed Aluminum Aluminum Blister Packing Machine With CE and FDA approved



Product Description


DPH-260 blister packing machine is a machine adopts in the lead position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.
DPH-260 combines the advantages of good forming of flat pattern packing machine and high speed of roller pattern machine. The forming could be done in low speed through reasonable speed matching. And the sealing station, compressing station and punching station could achieve a speed of 120 cutting per minute. High speed is with perfect function
This series machine is at high precise and the latest roller and plate type blister packing machine, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronically area. It is suitable for packing capsules, tablets, milk pieces, candy, electronically element and similar material, with sealing packing in aluminum PVC, paper PVC Blister Package.





Performance & Characteristics:
1.Adopt domestic newest high-power conveying system, using chains row to moving conveying shaft to prevent the mistakes and noise of other gear conveying.
2.This machine is composed of two subsystems: one includes PVC forming unit, feeding unit and hot-sealing unit and cutting unit., in order to easy to enter into lift or split purification workshop, connect the two parts by bolt, easy to fitting.
3.Mould adopt keyway positioning, pressing plate clamping.
4.Photoelectric control system, PVC, PTP and tropic aluminum feeding unit, scrap reclaiming unit are equipped to insure the synchronization of the stations under long distance.
5.Main motor adopt frequency control of motor speed; (the punching frequency: 20-35 time/min) which according to the journey’s length and Ease and Difficulty of filling the medicine.
6.Adopt the mechanism hand to traction, smooth running, exact synchronization; the length of tracking can easy to adjust from 30-120mm
7.Closed and open of forming heating boarding in auto, it can delay to start the machine when closed the forming heating broad, in order to limit the waste material in one board.
8.Air cushion heating sealing: chequered plate has goes up by cylinder in auto when stop the machine. It eliminate the deformations of blister by heat radiation when stop the machine, easy to clean the chequered plate and cushioning the over pressure, which prolong the machine’s life.
9.Up and down chequered board mating to heating sealing, it means that pros and cons of chequered board are point sealing chequered (also can line sealing),owing to the stress in even, it can make the board more smooth and improve the performance of sealing.
10.Match with twofold-gang feeder: improve the rate of filling for abnormity tablet and when high speed running.(suit for Alu/Pvc)
11.Auto alarm and stop to run when PVC is lack and fragment and match with urgent safe device, improve the operation safely when adjust and change the mould.
12.All parts contact with material adopt stainless steel material and meet “GMP” requirements.


Technical Data


MODEL: 260
Blanking frequency (cutting): 40-120
Sheet's quantity of one blanking (sheets): 1-8(depends to your blister size)
Capacity (blisters/min): Capsules:11-17 ten thousand/h
Tablets:15-30 ten thousand/h
PTP Aluminum Foil
Thickness0.02 X Width ≤260(mm)
Dia of Reel Core:φ70~76(mm)
PVC Non-toxic PVC Thickness (0.25-0.35) Width≤260(mm)
Capacity of air compressor(m3/min): ≥0.5
Power supply (KW): 220V AC, 30 Hz, Three Phase (Depend on your requirement.
Weight (kg): 2500Kg
