Semi Automatic Cartoning Machine

Semi Automatic Cartoning Machine

cosmetics box cartoning packing machine

automatic cartoning machine

Place of Origin:

China

Brand Name:

LEADTOP

Certification:

CE.ISO

Model Number:

ZH-50

Contact Us

Request A Quote
Product Details
Product Name:
Semi Automatic Cartoning Machine
Usage:
Blister Tube Sachet Bottle Cartoning
Packing Speed:
20-50cartons Per Min
Dimension:
1100*1500*1900MM
Weight:
450Kg
Warranty:
1 Year
Air Pressure:
0.5-0.8Mpa
Driven Type:
Electric
Feature:
Easy Operation
Model:
ZH-50
Power Supply:
220V 50HZ Single Phase
Product Description

High Speed Semi Linear Automatic Box Cartoning Packing Machine For Cosmetics

APPLICATION :Round bottled medicine, food-stuff, cosmetic, etc. packing into square box.


OPTION :Leaflet Inserting , Hot Glue, Hot Ribbon Date Code , Embossed date Code


FEATURES:
1.It is specially design to pack small quantities multi size box.
2.With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple
function and require a short time to change mould.
3.304 stainless steel case
4.Advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel ,can easily set and change the packing
parameters.


Packing Process:
1.Push box into star wheel.
2.Fold box lower small flap.
3.Press both lower big flaps.
4.Flatten both big flaps.
5.Product fall into box.
6.Fold box upper small flap.
7.Press both upper big flaps.
8.Flatten both big flaps.
9.Product push out



Main Technical Data



Model ZH-50
Packing speed 20-50 Cartons/min
Carton size range L(40-125)mm×W(12-80)mm×H(12-80)mm
Carton gram requirements 250-350g/m3
Motor power 1.5KW
Power supply Three phase 380V 50Hz
Machine noise ≤80dB
Air pressure 0.5-0.8 Mpa
Air consumption 150L/min
Dimension 1100×1500×1900 mm
Weight 250Kg

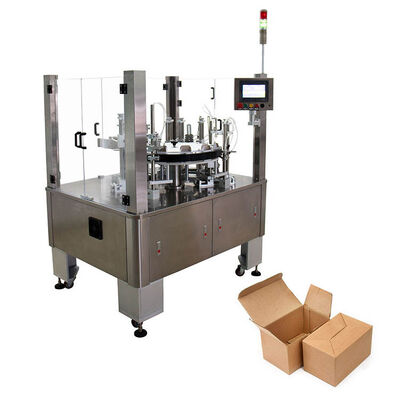

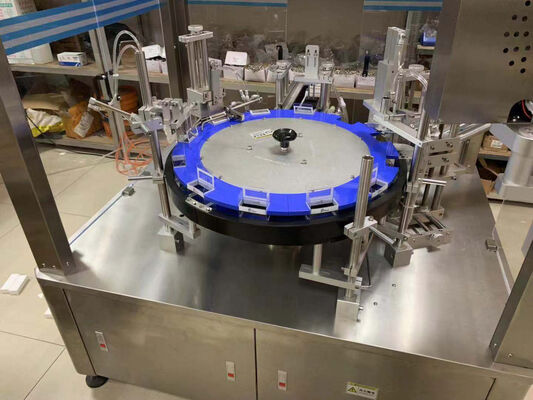

Semi Automatic Cartoning Machine 0Semi Automatic Cartoning Machine 1
