Automatic Pharmaceutical Processing Machines Hepatic Portal Suppository Packing
Product Details:
| Place of Origin: | ZHEJIANG |
| Brand Name: | LTPM |
| Certification: | CE |
| Model Number: | HY-U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD30,000-75,000/Set |
| Packaging Details: | HY-U Automatic Suppository Packing forming Filling Equipment wrapped by strech film packed into Export Standard anti moisture wooden case can afford long |
| Delivery Time: | 40 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Place Of Origin: | Zhejiang, China | Brand Name: | LTMP CHINA |
|---|---|---|---|
| Application: | Hepatic Portal Suppository Packing | Type: | Hepatic Portal Suppository Packing |
| Suppository Shape: | Bullet, Torpedo, Duck-mouth Ect | Dose Per Unit: | 0.5-5ml |
| Deviation: | <±2% | Adapting Base: | Emi-synthesis Fatty Acid Lipo-glycerol |
| High Light: | pharmaceutical equipment,pharma machinery |
||
Product Description

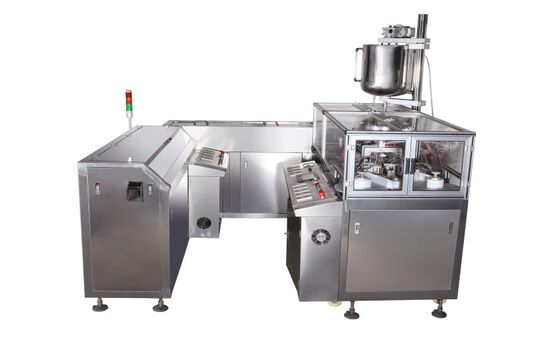

HY-U Automatic Hepatic portal Suppository Packing forming Filling Machine
HY-U Automatic Suppository Packing forming Filling Equipment Use PVC/PE through clamp structure and pass into molding district to preheat mould ——>making shape mould ——>air filling mould——>membrane making shape.
Triangle knife side cut dotted line cutting.
1.PLC checking function: through PLC online checking function to self-checking and alarm for running stoppage, and show the reason of stoppage in order that the operator remedy it in time.
2.Filling part within free static electricity system.
3.Agitation vat speed adjustment system .
4.Cooling speed adjustment system .
5.Cutting gains speed adjustment system
Notice: end product grains can be set 4/5/6/7gains. The machine can product PVC/PE
| Model | HY-U |
| Production capacity | 8000-12000 pieces/hour |
| Dose per unit | 0.5—5ml |
| Deviation | <±2% |
| Suppository shape | Bullet, torpedo, duck-mouth ect,. |
| Adapting base material |
Emi-synthesis fatty acid lipo-glycerol, glycerol gelatin, carbon wax |
| Volume of storing vessel | 50L |
| Air pressure | 0.6Mpa |
| Air consumption | 1.5m3 |
| Water consumption | 50kg per circle |
| Voltage | 3PH380V |
| Total power | 7.5KW |
| contour dimension | 3200mm×3000mm×2300mm |
| Total weight | 2000kg |
