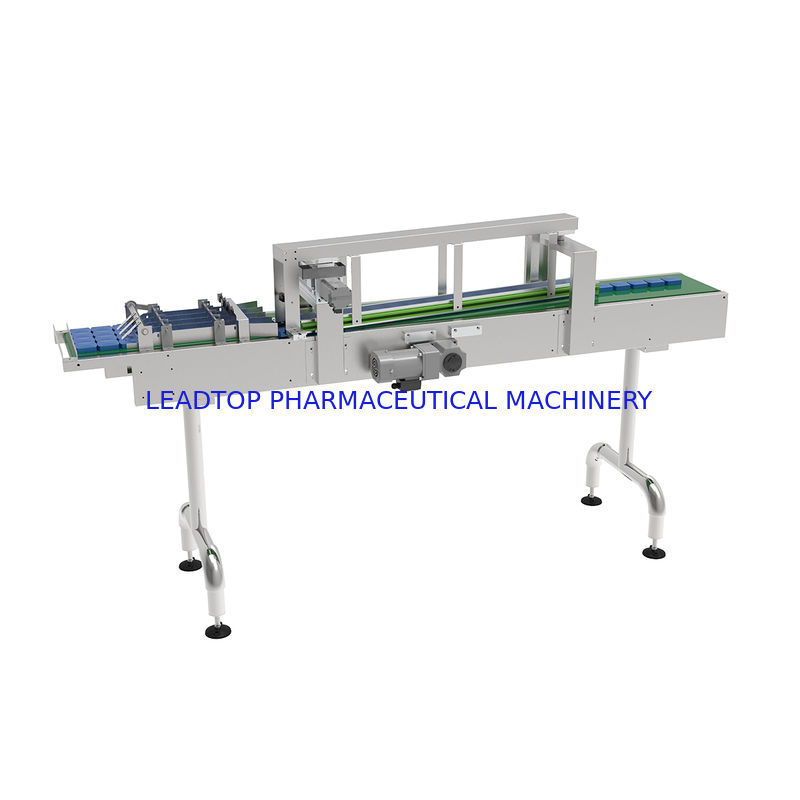

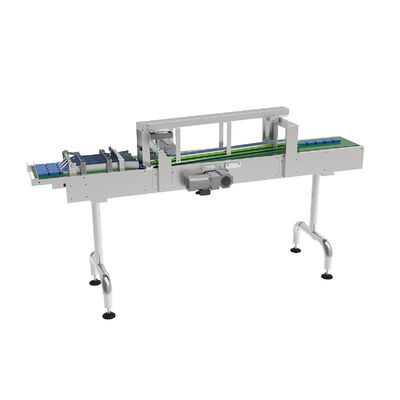

Efficient Multi Lane Separator System With Pneumatic Clamping And Anti-interference Sensors For Precise Material Handling

Brand Name:	LTPM CHINA
Model Number:	MTB-4
MOQ:	1
Price:	18000
Payment Terms:	30% TT as deposit and 70% before shipping
Supply Ability:	25 sets/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Conveying Materials:

Round Bottle/square Bottle/square Box, Etc

Grade Separation Entrance:

Trigger Clamping Action & Total Material Count

Outlet Per Output Strip:

Independent Channel Counting (counting After Channelization)

Fully Equipped Throughout The Process:

Clamping Positioning, Photoelectric Counting, Etc

Warranty:

5 Years

Voltage:

220V/380V

Packaging Details:

Wooden Case

Supply Ability:

25 sets/ month

Highlight:

Pneumatic clamping multi lane separator

Efficient multi lane separator system

Precise Multi Lane Separator System

Product Description

This Multi-Lane Conveyor System utilizes advanced servo-driven technology to dynamically distribute materials from a single input conveyor to multiple output lanes. The system features high-precision photoelectric sensors and a touch-screen programmable control interface, enabling dynamic lane distribution based on preset quantity or time rules. Key features include:
• Servo motor-driven screw module and swing arm mechanism for lane splitting (switching speed ≤0.5s)
• Pneumatic clamping and positioning device to eliminate material inertia deviation
• Anti-interference photoelectric sensors supporting high-speed counting (≥120 pieces/min)
• Modular design for quick adjustment and easy maintenance

1.Clamping and positioning device is located in the front part of the lane switching exit and is pneumatically driven. The material enters into the channeling area instantly clamping and positioning, eliminating inertia offset, ensuring the stability of the material attitude when servo channeling.

2.The counting adopts anti-interference photoelectric sensor, adapting to high-speed counting (≥120 pieces/minute).

Placement	Functionality
Grade Separation Entrance	Trigger Clamping Action & Total Material Count
Outlet Per Output Strip	Independent channel counting (counting after channelization)

3.Touch screen Human Machine Interface (HMI) with programmable counting rules:
Split lanes by quantity (example: 3 pieces left → 5 pieces right → cycle)
Split channels by time (timed channel switching)
Triggered by external signal (linked robot/scanner gun command)
Counts for each channel, servo status, alarm log
Hierarchical password protection parameter modification
