DPH-260 Silver Aluminum Plastic Pharmaceutical Processing Machines for Tablet
|Place of Origin:||Zhejiang Province,China|
|Brand Name:||LTPM CHINA|
|Certification:||CE, GMP, SGS, BV|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden Case|
|Delivery Time:||25 workiing days|
|Supply Ability:||45 sets/month|
|Cutting Speed(3 Gears):||40～120times/min||Installed Power:||380V 50Hz|
pharmaceutical process equipment,

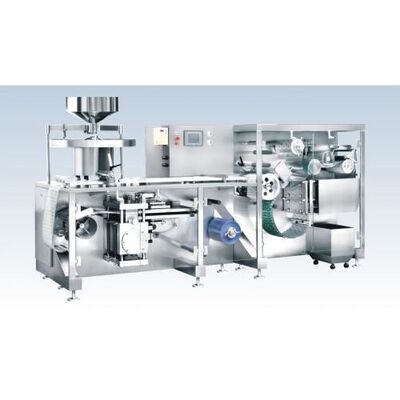

DPH-260 Silver Aluminum Plastic Blister Packing Machine for Tablet
DPH-260 blister packing machine is a machine adopts in the lead position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.
DPH-260 combines the advantages of good forming of flat pattern packing machine and high speed of roller pattern machine. The forming could be done in low speed through reasonable speed matching. And the sealing station, compressing station and punching station could achieve a speed of 120 cutting per minute. High speed is with perfect function
This series machine is at high precise and the latest roller and plate type blister packing machine, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronically area. It is suitable for packing capsules, tablets, milk pieces, candy, electronically element and similar material, with sealing packing in aluminum PVC, paper PVC Blister Package.
This model machine can be designed in addition with following unit according to customer requirements:
1.hot/cold forming system
2.product hopper with automatic universal feeding device or special feeding device
3.PLC Human-machine interface control system
4.Safety cover with alarm and machine stop
5.Batch numbers & expiry date embossing printing station on blister
6.Perforation station ( break line on blister)
7.Linkage station to cartoning machine
1.Plate-type universal feeder although easy and not high effective, it is very extensively applied and suitable for large size and small size capsule, various tablets and pills.
2.High speed vibrating feeding. The feeder can suitable for any speed of the machine. Our Vibration Feeder adopts Stainless Steel tube for feeding, Suitable for GMP Standard.
3.High-precise servo stepping. The machine adopts Servo Motor for Running. So the speed adjusting and running will be more accuracy.
4.The machine is equipped Double Sealing makes the Sealing Perfect, no air run trough the seal.
5.Whole Body Stainless steel with Flexi Glasses. Better Appearance.
|Blanking frequency (cutting):||40-120|
|Sheet's quantity of one blanking (sheets):||1-8(depends to your blister size)|
|Capacity (blisters/min):||Capsules:11-17 ten thousand/h
Tablets:15-30 ten thousand/h
|PTP Aluminum Foil
PVC & PTP
|Thickness0.02 X Width ≤260(mm)
Dia of Reel Core:φ70~76(mm)
|PVC Non-toxic PVC||Thickness (0.25-0.35) Width≤260(mm)|
|Capacity of air compressor(m3/min):||≥0.5|
|Power supply (KW):||220V AC, 30 Hz, Three Phase (Depend on your requirement.|
