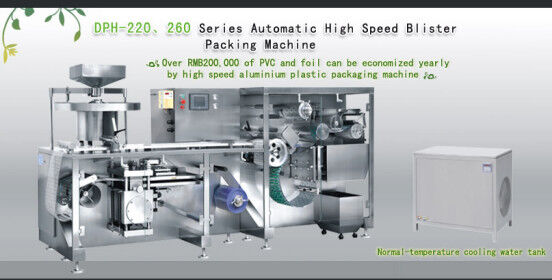

DPH-260 High Speed Pharmaceutical AL/PL Blister Packaging Machine
DPH-260 blister packing machine is a machine adopts in the lead position of quality, good capability, all-round function, good reliability and high productivity. It adopts auto-controlling technology and uses new material, new craft, and new technology to make the structure more reasonable.
DPH-260 combines the advantages of good forming of flat pattern packing machine and high speed of roller pattern machine. The forming could be done in low speed through reasonable speed matching. And the sealing station, compressing station and punching station could achieve a speed of 120 cutting per minute. High speed is with perfect function
This series machine is at high precise and the latest roller and plate type blister packing machine, developed by our company. It applies to pharmaceutical industry, food industry, medical appliance and electronically area. It is suitable for packing capsules, tablets, milk pieces, candy, electronically element and similar material, with sealing packing in aluminum PVC, paper PVC Blister Package.
1.Plate-type universal feeder although easy and not high effective, it is very extensively applied and suitable for large size and small size capsule, various tablets and pills.
|Blanking frequency (cutting):||40-120|
|Sheet's quantity of one blanking (sheets):||1-8(depends to your blister size)|
|Capacity (blisters/min):||Capsules:11-17 ten thousand/h
Tablets:15-30 ten thousand/h
|PTP Aluminum Foil
PVC & PTP
|Thickness0.02 X Width ≤260(mm)
Dia of Reel Core:φ70~76(mm)
|PVC Non-toxic PVC||Thickness (0.25-0.35) Width≤260(mm)|
|Capacity of air compressor(m3/min):||≥0.5|
|Power supply (KW):||220V AC, 30 Hz, Three Phase (Depend on your requirement.|
