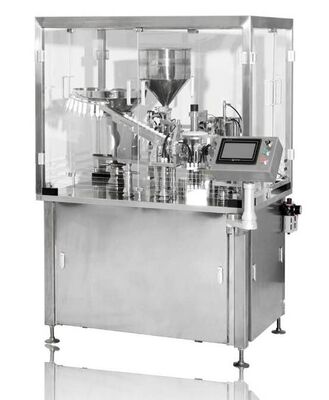

2.1kw Pharmaceutical Processing Machines , High Precision Syringe Pre-filled and Closing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | LTPM CHINA |
| Certification: | CE Certificate |
| Model Number: | LTSL-30N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD60000-62000/set |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C, MoneyGram, Western Union,Cash |
| Supply Ability: | 20 Sets per Month |
|
Detail Information |
|||
| Item Name: | Syringe Pre-filled And Closing Machine | Model No.: | LTSL-30N |
|---|---|---|---|
| Syringe Volume: | 0.5-100ml | Filling Volume: | 0.05-100ml |
| Filling Accuracy: | Smaller Than 0.3% | Filling Nozzles: | 1 Pc |
| Speed: | 1200-2200 Pcs Per Hour | Total Power: | 2.1kw |
| Compressed Air: | 0.55-0.75Mpa 20L/S | Dimension: | 1200*800*1800mm |
| Weight: | 750kgs | ||
| High Light: | pharmaceutical process equipment,pharmaceutical equipment |
||
Product Description
2.1kw Pharmaceutical Processing Machines , High Precision Syringe Pre-filled and Closing Machine
Introduction
LTSL-30N Plastic Syringe Filling and Plugging Machine is the main equipment of Syringe production line. It is for plasticdisposable pharmaceutical syringes. It suits for filling water-based solution,poultice, viscous liquid and gel, etc. The machine meet for GMP standard.
The Functionsand features
1. The machine will automatically sort the syringes.
2. The machine will automatically load syringes
3. The machine will do filling automatically
4. The machine will sort the caps automatically
5. The machine will put the caps automatically
6. This machine can be used as individual machine, alsocan form as production line with labeling machine
Technical parameter
|
Type |
LTSL-30N |
|
Syringe volume |
0.5-100ml |
|
Filling volume |
0.05-100ml |
|
Filling accuracy |
≤±0.3% |
|
Filling nozzles |
1 pc |
|
Speed |
1800-3000 pcs per hour |
|
Total power |
2.1kw |
|
Compressed air |
0.55-0.75Mpa 20L/S |
|
Dimension |
1200×800×1800mm |
|
Weight |
750kgs |

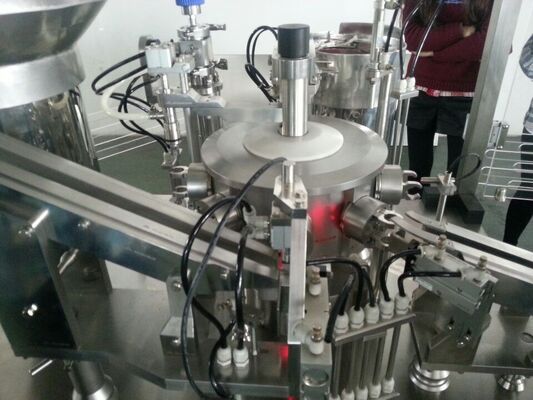

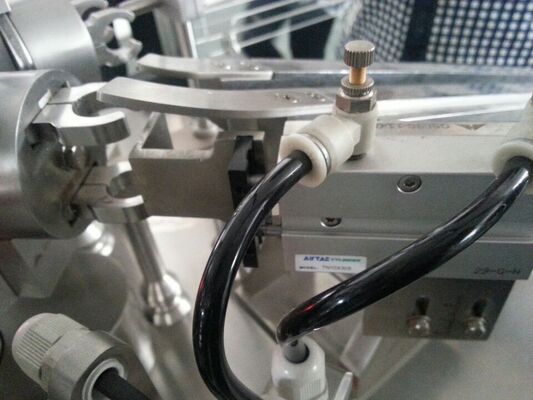

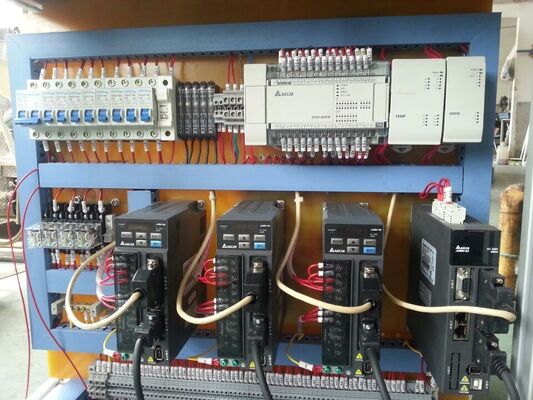

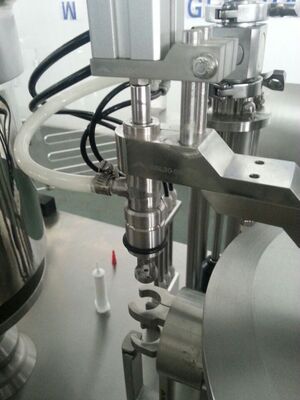

Machine Details:
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
