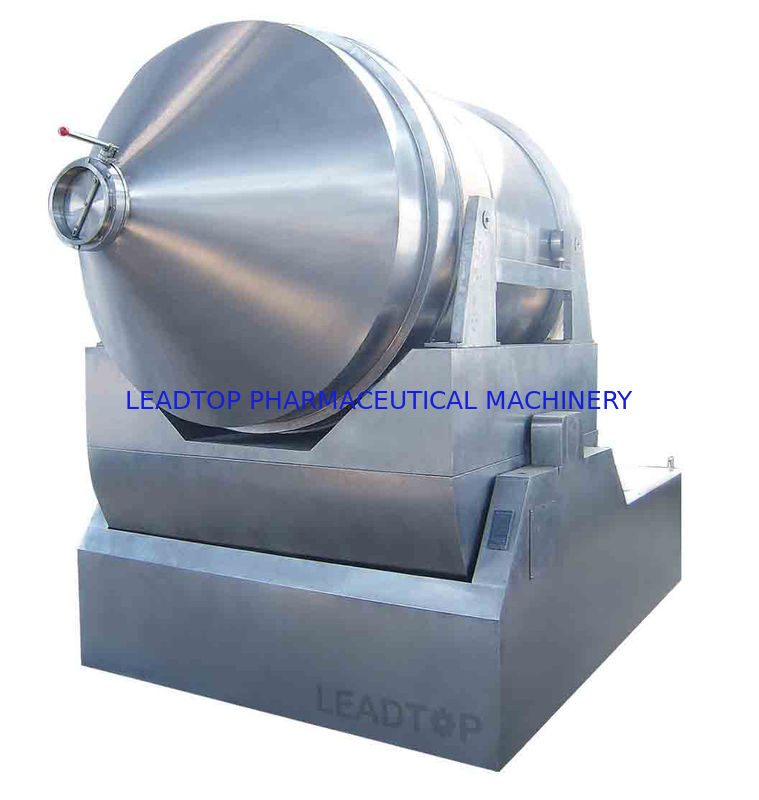

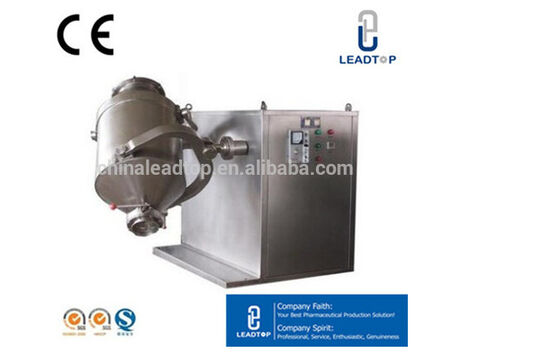

SYH Series Pharmaceutical Processing Machines , Stainless Steel Motion Powder Mixer
Product Details:
| Place of Origin: | China |
| Brand Name: | LTPM China |
| Certification: | CE, GMP |
| Model Number: | SYH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export standard wooden case |
| Delivery Time: | 25days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 25sets/month |
|
Detail Information |
|||
| Model Number:: | SYH Series | Name:: | 3D Lab Dry Powder Mixer |
|---|---|---|---|
| Type:: | Mixing Machine | Capacity: | 0.8-800L |
| Total Weight: | 50-2500 Kg | Certificate: | CE Certificate |
| High Light: | pharmaceutical equipment,pharma machinery |
||
Product Description
SYH Series Pharmaceutical Processing Machines , Stainless Steel Motion Powder Mixer
Quick Detail:
Quick Detail:
Model No.: SYH
Capacity: 0.8-800L
Material: Stainless steel 304
Total Weight: 50-2500 kg
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate
Description:
The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specific gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is up to 100%. The machine is the desired product in various mixers at present.
The barrel material charge rate is big. The Maximum rate can be up to 90%(the common mixer has only 40% charge rate). It is high in efficiency and short in the mixing time.
The barrel uses the curve connection. The barrel has passed the fine polish treatment.
Applications:
The machine is used for mixing the powder state and grain state material with the high uniformity in the pharmacy, chemical, food, light-industry, electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.
Specifications:
| Model | SYH1 | SYH5 | SYH15 | SYH50 | SHY100 | SYH200 | SYH400 | SYH600 | SYH800 | SYH1000 |
| Barrel capacity(L) | 1 | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 |
|
Max loading |
0.8 | 4 | 12 | 40 | 80 | 160 | 320 | 480 | 640 | 800 |
|
Max loading |
0.5 | 2.4 | 7.5 | 25 | 50 | 100 | 200 | 300 | 400 | 600 |
| Speed of driving shaft(r/min) | 30-15 | 30-15 | 0-8 | 0-8 | 0-8 | 0-8 | 0-8 | 0-8 | 0-8 | 0-8 |
| Motor power(kw) | 0.12 | 0.25 | 0.37 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 |
|
Overall |
500*600 |
600*1000 |
700*1000 |
500*600 |
1000*1400 |
1200*1700 |
1400*1800 |
1900*2100 |
2200*2400 |
2250*2600 |
| Total weight(kg) | 50 | 150 | 200 | 300 | 500 | 800 | 1200 | 1500 | 2000 | 2500 |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahor
