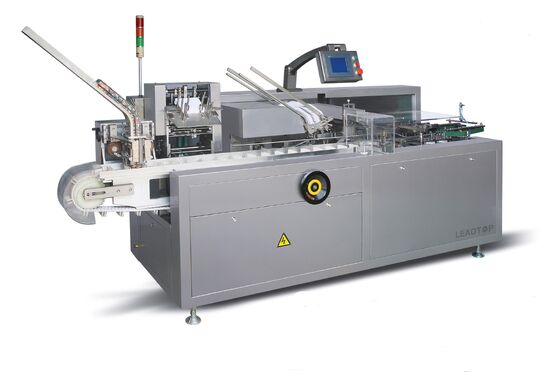

Siemens Controlling System Automatic Cartoning Machine for packing bottles

Siemens Controlling System Automatic Cartoning Machine for packing bottles

pharmaceutical process equipment

pharmaceutical equipment

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP, SGS, BV

Model Number:

ZH-100

Contact Us

Request A Quote
Product Details
Product Description



Siemens Controlling System Automatic Cartoning Machine for packing bottles





Quick Detail:





1. Electric Power: AC380V 50HZ 2.5KW (It is required by you)

2. Capacity: 50-100cartons/min

3. Volume of consumption: 20m3/h(presure0.5-0.8MPa)

4. Noise: less than 80dB (A)





Description:





This machine is suitable for packing AL/PL Blister, bottle, cosmetic playing card and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing tec processes. (Options hot-glue device extra)

The machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.





Applications:





The cartooning suitable for packing: Alu/Alu or Alu/PVC Blister Plate, Bottles, Vial, Ampoule, Soap, toothpaste, poker, bags, etc.





Specifications:





Main Technical Data

Electric Power AC380V 50HZ 2.5KW (It is required by you)
Capacity 50-100cartons/min
Volume of consumption 20m3/h(presure0.5-0.8MPa)
Noise less than 80dB (A)
Packing Material Weight 250-300g/m2
Max Size 200*80*50mm (L*H*W)
Mini Size 50*20*14mm (L*H*W)
Leaflet Weight 55-65g/m2
Max Size 260*190mm (L*W)
Mini Size 100*100mm (L*W)
Overall Dimension 3250*1450*1550mm
Optional Device

1. Gluing Folding System

2. Bottle Feeding System

3. Sachet Feeding System





Competitive Advantage:





1. Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.

2. When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.

3. Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.

4. Vibrating material categorizing and feeding mechanism is stable and reliable.

5. Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.

6. It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.

7. Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.

8. Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure
