Place of Origin:

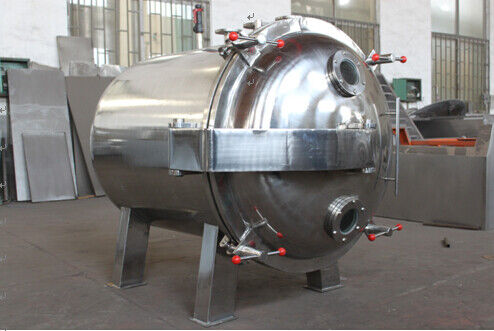

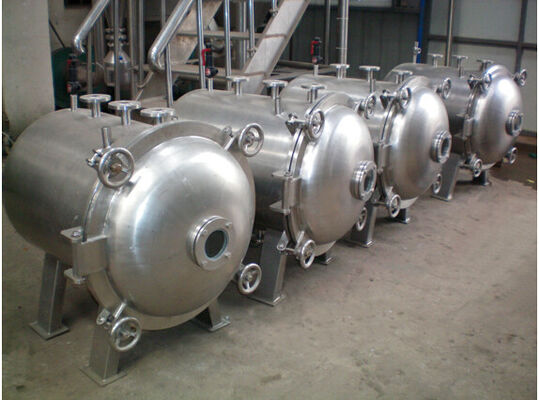

Low Temperature Pharmaceutical Processing Machine , Vacuum Drying Machine
Water Evaporation Rate (kg/h): 7.2kg/sqm.h
Heating Temperature ℃: 35—150
Inner Size(mm): 600*97mm
Outter Size (mm): 1135*810*1020mm
Tray Holder Layers: 4
Distance between layers: 81
Tray Size (mm): 310*600*45mm
1. This machine special for drying of the raw materials which are easily damaged under high temperature. Because the machine is low temperature in vacuum situation drying.
2. If sterilized before drying, there will never get other object or bacteria contains in raw materials.
3. The machine adopts vacuum pump for sucking the air and moisture from the inner machine, make the raw materials are under vacuum situation for heating and fast drying.
This machine is widely used in Chemical, pharmaceutical, food and electronic industry, because of its low temperature drying never destroy raw materials.
|Outter Size (mm)||1135*810*1020mm|
|Tray Holder Layers||4|
|Distance between layers||81|
|Tray Size (mm)||310*600*45mm|
|Inner pressure (MPa)||＜0.784|
|Heating Temperature ℃||35—150|
|Vacuum Rate (MPa)||≤0.097|
|Water Evaporation Rate (kg/h)||7.2kg/sqm.h|
|Vacuum Pump and Power||
SK-3 1.5kw (without condenser)
2kw (with condenser)
