    Product Details:

    Place of Origin: Zhejiang china
    Brand Name: LTPM CHINA
    Certification: CE
    Model Number: DPP-250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: USD14,800-25,800/set
    Packaging Details: packed in wooden case with stretch film wraping anti moisture during long time sea shipment.
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    MODEL: DPP-250A Blanking Frequency (cutting): 15-45
    Sheet's Quantity Of One Blanking (sheets): 1-6 Capacity (blisters/min): 5-400
    Adjustable Scope Of Feed Travel: (mm): 10-120 Max Forming Depth (mm) PVC: 270×120×25
    Capacity Of Air Compressor(m3/min): ≥0.36



    DPP -250 Auto Candy Blister Sealing Machine , Capsule Blister Packing Machine



    Application

    DPP-250A machine is Flat type Aluminum Plastic Tablet Blister Packing Machine both for Alu Alu and Alu PVC, which is improved based on customer's requirements. It's suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quantity and various kinds of products.



    Main Technical Data:

    SPECIFICATIONS FOR DPP-250A BLISTER PACKING MACHINE
    Model

    DPP-250A
    Blamking Frequency
    25-50 cuttings/min
    Adjustable scope of feed travel
    10-120mm
    Max. forming Area
    270*110*15mm

    Wrapping Material Specification
    PVC: Width 10-270mm
    PTP Alu foil: Width 10-270mm
    Cold forming Alu: Width 10-270mm
    Overall Dimensions
    2800*650*1800mm
    Power Supply
    380V 50Hz /220V 60Hz
    Weight
    1200Kg


    Feature:
    Travel scope can be adjusted.
    Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
    The material is fed automatically. The mould and feeder can be designed as user’s requirements.
    Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
    Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
    Stepping motor drives and tow materials.
    The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
    Mechanical Part:
    The advanced machine has been equipped Four Adjusting wheel in every mould Position. And the Main Motor has been equipped Stop Machine. It means you can not only use PLC and Step Motor for adjusting running length, but also using Mechanical part for adjusting.

    Table of Comparison between Old and New

    No. Improved DPP-250A Original (other type)
    1 The machine will stop automatically when material is exhausted.. Same
    2 Each operation post is equipped trimmer hand wheel. There were only two.
    3 There are hold-down nuts for each operation post avoiding the pre-adjustment removed. There were only two
    4 Previous code disc is replaced by new encoder, which will control the air supply of blistering, cooling and towing length of step-motor.(There are 360 pulses which control this function). Previous code disc controls the air supply of blistering of pneumatic clip by 360 orifices. If code disc moves slightly, the pneumatic clip will become unstable.
    5 The heating mould will be hoisted by cylinder if operation is stopped so as to avoid PVC film burned. The heating mould will not be hoisted if operation is stop and PVC film will be easily burned.
    6 There is PLC interface which controls all the functions and operations of the machine. No
    7 Photo-electrical matching (register): photocell eye will follow the color points and feed back the data to the PLC, which controls towing length of step-motor. The accuracy of photocell eye tracking can reach to ±0.02mm. No
    8 Step-motor: The exchange of length of medicine board is controlled by the speed of step-motor, which is driven by PLC or operating its touching interface. You can turn off or stop machine at anytime, but the position of packing materials will not move, while the PVC or aluminum foil is forwarding, not matter whether there is air or not. Pneumatic clip towing:The length of medicine board is adjusted by screw and it will be loose if without air, making the position of PVC and aluminum foil moved.
    9 Type 74 gear speed reducer 74 with brake will be back to the starting point at any time when machine stops. Cycloid motor has no brake function so it is instable when machine stops.



    Other Useful Information for Blister Packing Machine

    Nowadays material for packing and time for working are expensive. The machine runs one hour it will take almost a rolling PVC and one third rolling Aluminum Foil. It means for Standard Blister Sheet(80*57mm), you have cost 0.01(price for one plate)* 4(one cut for 4 plate)*15-50(one minute for 15-50 cuttings)*60(one hour)=36-120RMB/hour. When you start the machine in the morning, 30minutes for heating the machine (you need pay salary in this time), If the material has been moved becaues of loosed pneumatic clip and stoped urgency yesterday, you need to adjust again. So the cost will be waste.

    A blister Packing machine you can use for at least five years, But the waste of material you can buy another two or three new machines. This was their seriouse problem for pharmaceutical factory using other type machines. But now I really thanks for the wonderful suggestion that we have improved the machine in Step Motor and Stop Machine Green and Save Type Blister Packer.



    Detailed Images

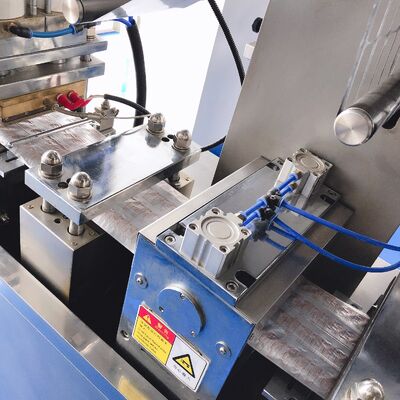

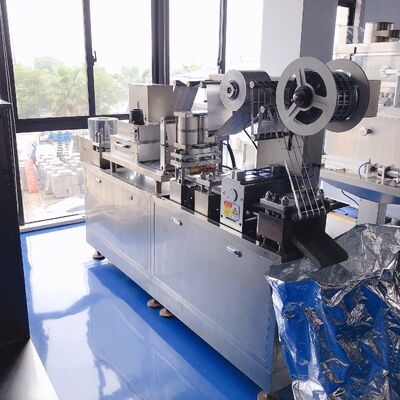

    CE Flat Type Pharmaceutical Processing Machines For Tablets And Capsules
    CE Flat Type Pharmaceutical Processing Machines For Tablets And Capsules
    CE Flat Type Pharmaceutical Processing Machines For Tablets And Capsules
    CE Flat Type Pharmaceutical Processing Machines For Tablets And Capsules
    CE Flat Type Pharmaceutical Processing Machines For Tablets And Capsules
    CE Flat Type Pharmaceutical Processing Machines For Tablets And Capsules
