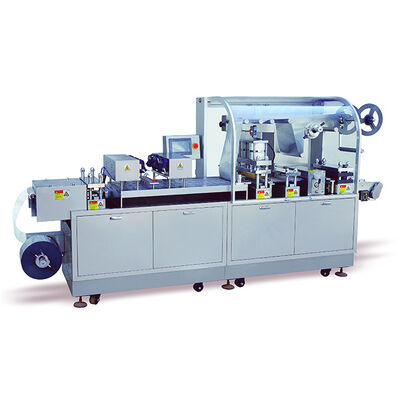

Super Pharmaceutical Processing Machines Alu PVC And Alu Alu Blister Packing Machine

Super Pharmaceutical Processing Machines Alu PVC And Alu Alu Blister Packing Machine

    • Super Pharmaceutical Processing Machines Alu PVC And Alu Alu Blister Packing Machine
    • Super Pharmaceutical Processing Machines Alu PVC And Alu Alu Blister Packing Machine
    • Super Pharmaceutical Processing Machines Alu PVC And Alu Alu Blister Packing Machine
  • Super Pharmaceutical Processing Machines Alu PVC And Alu Alu Blister Packing Machine

    Product Details:

    Place of Origin: Zhejiang china
    Brand Name: LTPM CHINA
    Certification: CE
    Model Number: DPP-250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: USD14,800-25,800/set
    Packaging Details: packed in wooden case with stretch film wraping anti moisture during long time sea shipment.
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    MODEL: DPP-250A Blanking Frequency (cutting): 15-45
    Sheet's Quantity Of One Blanking (sheets): 1-6 Capacity (blisters/min): 5-400
    Adjustable Scope Of Feed Travel: (mm): 10-120 Max Forming Depth (mm) PVC: 270×120×25
    Capacity Of Air Compressor(m3/min): ≥0.36







    Application:

    The machine is assembled with three parts and can be packed and transported separately. Under control of PLC, the machine can complete separately all procedures including warm-up, blister forming, automatic feeding, heat sealing and synchronous adjustment of Aluminum-Plastic strip, empty-detecting, hard Aluminum forming, second heat sealing, batch number printing, blanking and scrap-collecting, etc.

    The machine is suitable for blister packing with Aluminum-Plastic, Aluminum-Aluminum and Aluminum-Plastic-Aluminum.

    Main Technical Data:

    Model: DPP-250S DPP-350F
    Punch Speed: 10-50 time/min 10-35time/min
    Forming Area: Alu PVC:250*120*18mm Alu PVC:350*120*25mm
    Alu Alu: 250*120*15mm Alu Alu: 320*120*15mm
    Travel Range: 10-120mm 10-120mm
    Compressed Air: 0.4MPA-0.6MPA
    Power: 380V 50Hz 9Kw
    Wrapper Specification: Aluminum Foil:(0.02-0.035)*250mm Aluminum Foil:(0.02-0.035)*350mm
    Tropical Aluminum: Tropical Aluminum:
    (0.09-0.15)*250mm (0.09-0.15)*350mm
    PVC: (0.15-0.5)*250mm PVC: (0.15-0.5)*350mm
    Overall dimensions (mm): 3690×650×1650 3890*7150*1700
    Weight (kg): 1800Kg 2000kg



    Feature:

    l Travel scope can be adjusted.

    l Mould is located by locating groove so that it’s easy to change mould. Adopt the moulds of pressing-and-frothing and cool-forming.

    l The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.

    l Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.

    l Adopt photoelectric empty-detecting equipment and waster-eliminating equipment.

    l Servo motor drive wheel to grip and tow wrapper, synchronize accurately. And it will be not waste of time and material for adjusting when restart the machine.

    l The machine equipped Camera Cell for sensor, make the length in an accurate number.

    l The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.







    +1_10

    Q: What price terms you offer?

    A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.



    Q: What payment terms you take?

    A: TT, LC, other terms are also workable.



    Q: Will you help with installation and stuff training?

    A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.



    Q: How can I visit your factory?

    A: Our factory is located in Ruian city Zhejiang Province. Just let us know your scheduel in advance and we will arrange everything for you!
    Any other doubts about our machine, please feel free to contact with us.
