Rotary Blister Cartoning Machine

Rotary Blister Cartoning Machine

Pharmaceutical cartoning machine

vertical cartoning machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Semi Automatic Cartoning Machine
Blister Tube Sachet Bottle Cartoning
Packing Speed:
20-50cartons Per Min
1 Year
Air Pressure:
Driven Type:
Easy Operation
Power Supply:
220V 50HZ Single Phase
Product Description

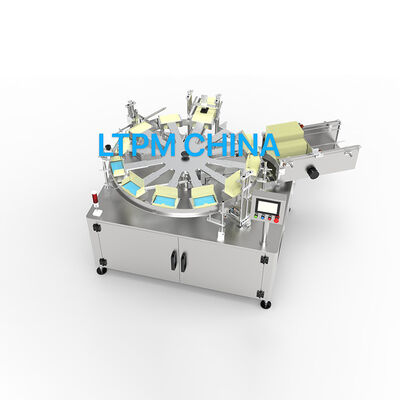

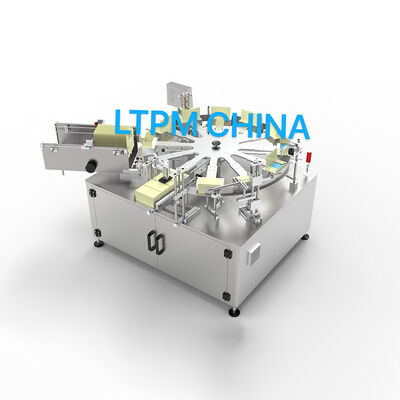

ZH-50 Multifunctional Pharmaceutical Blister Sachet Bottle

Tube Vertical Rotary Semi Automatic Cartoning Machine

ZH-50 model rotary cartoning machine Its specially design to pack small quantities multi size box. With low cost and only require small area. It is suitable for various sizes of box. Machine is vertical type, multiple functionand require a short time to change mould. It is widely used in pharmaceutical, food and cosmetic industries. Like the medicine bottles, blister board, tubes, tea bag sachets, biscuits, soap, perfume, puff cake, lamp bulb, etc. S.S304 framework, advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel, can easily set and change the technical parameters.


Working process:
1. Push box into star wheel
2. Fold box lower small flap.
3. Press both lower big flaps.
4. Flatten both big flaps.
5. Product falls into box.
6. Fold box upper small flap.
7. Press both upper big flaps.
8. Flatten both big flaps.
9. Product be pushed out.


Applicable Industry:
1.Tea coffee bag automatic carton box packing machine
2. Condom plaster sachet cartoning machine
3. E-cigarette/Pod cartoning packaging machine
4. Cosmetic facial eye Mask cartoning box packing machine
5. Food Milk fruit vegetable biscuits automatic cartoner cartoning machine
6. Cosmetic Perfume Bottles automatic cartoning machine
7. Ointment eye drop plastic bottle carton box package machine
8. toothpaste tube automatic carton machine
9. Pharmacutical tablet capsule blister cartoning box packing machine



Main Technical Data


Model ZH-50
Packing speed 20-50 Cartons/min
Carton size range L(40-125)mm×W(12-80)mm×H(12-80)mm
Carton gram requirements 250-350g/m3
Motor power 1.5KW
Power supply Three phase 380V 50Hz
Machine noise ≤80dB
Air pressure 0.5-0.8 Mpa
Air consumption 150L/min
Dimension 1100×1500×1900 mm
Weight 250Kg
