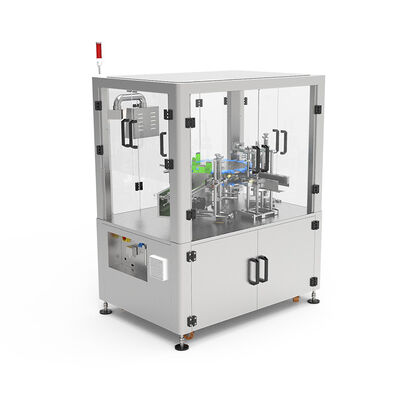

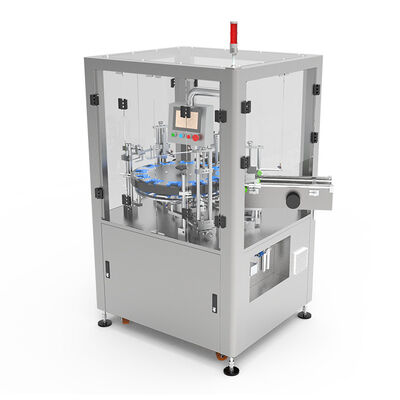

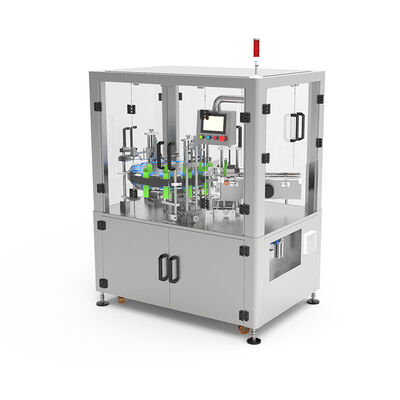

Food Cylinder Shaped Tube Cartoning Machine

Food Cylinder Shaped Tube Cartoning Machine

Product Details:

Place of Origin: China
Brand Name: LEADTOP
Certification: CE.ISO
Model Number: ZH-50

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD12000-15000 per set
Packaging Details: standard export wooden case packing
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Product Name: Semi Automatic Cartoning Machine Usage: Blister Tube Sachet Bottle Cartoning
Packing Speed: 20-50cartons Per Min Dimension: 1100*1500*1900MM
Weight: 450Kg Warranty: 1 Year
Air Pressure: 0.5-0.8Mpa Driven Type: Electric
Feature: Easy Operation Model: ZH-50
Power Supply: 220V 50HZ Single Phase
High Light:

bottle cartoning machine


high speed cartoning machine

Product Description

Food Cylinder Shaped Tube Cartoning Machine

2020 New Supplier Food Cylinder Shaped Tube Vertical

Semi Automatic Cartoning Machine

Capacity and Characteristic:
1.Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.
2.When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
3.Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
4.Vibrating material categorizing and feeding mechanism is stable and reliable.
5.Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6.It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
7.Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
8.Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure

1.Rejection automatically if no product, nonstandard height or lack of leaflet.
2.Stop automatically if incorrect position of products into carton.
3.Stop automatically if no cartons or out of leaflet continues.
4.Easy to change to different products.
5.Protecting automatically for overloading.
6.Automatically display device for speed and finished products counting.




Main Technical Data


Model ZH-50
Packing speed 20-50 Cartons/min
Carton size range L(40-125)mm×W(12-80)mm×H(12-80)mm
Carton gram requirements 250-350g/m3
Motor power 1.5KW
Power supply Three phase 380V 50Hz
Machine noise ≤80dB
Air pressure 0.5-0.8 Mpa
Air consumption 150L/min
Dimension 1100×1500×1900 mm
Weight 250Kg
