High Productivity Plastic Pouch Food Coffee Bean Pet Food Rice Filling Horizontal multifunctional packaging machine

Brand Name:	LTPM CHINA
Model Number:	HorizonTop--Series
MOQ:	1 Set
Price:	Consultation and detailed discussion
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	25sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang，China

Certification:

CE,ISO

Packaging Type:

Stand-up Pouch, Bags, Film, Pouch, Sealing

Automatic Grade:

Automatic

Voltage:

380 V/220V

Filling Material:

Powder, Paste, Granule, Liquid, Solid

Application:

Food,Beverage,Commodity,Chemical,Machinery & Hardware,Apparel,Textiles,Cigarettes,Pharmaceutical

Warranty:

5 Years

Packaging Details:

Export Standard Wooden Case

Supply Ability:

25sets/month

Highlight:

horizontal plastic pouch packaging machine

multifunctional coffee bean packaging machine

automated pet food filling machine

Product Description

Products Description

This machine is applicable for packing powder, granule, liquid in form of stand up pouch, with different patterns of sealing,which include processes of stand up pouch forming, product dosing, filling and sealing.

Applicable Pouches

Stand up pouches, Flat pouches, or other irregular shape pouches.

Applicable Products

Configure with different dosing devices, capable to pack with liquid, powder or granule, such as juice, curry, jam, tomato sauce,mayonnaise, nuts, detergent, etc.

Machine Data

Model	HorizonTop--210	HorizonTop--250	HorizonTop--360	HorizonTop--450	HorizonTop--500
Speed	30-50 bags/min	30-45 bags/min	15-35 bags/min	40-80 bags/min	3-15 bags/min
Accuracy	± 1.5%	± 1.5%	± 1.5%	± 1.5%	± 1.5%
Bag width	55-200mm	80-250mm	120-350mm	100~200mm	120-400mm
Bag height	100-280mm	100-280mm	100-280mm	100~280mm	150-500mm
capacity	1-5kg	1-5kg	1-5kg	1-5kg	1-15kg
Power	4kw	4kw	4kw	6kw	4kw
Gas consumption	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min
Air pressure value	0.6MPa	0.6MPa	0.6MPa	0.6MPa	0.6MPa
Weight	1450kg	1700kg	2200kg	2000kg	800kg
Size(mm)	290010001390	350010001390	390010001390	380010001200	230010001390
Warranty	5 years	5 years	5 years	5 years	5 years

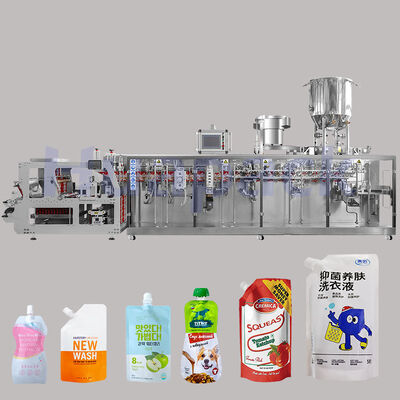

High Productivity Plastic Pouch Food Coffee Bean Pet Food Rice Filling Horizontal multifunctional packaging machine 1

* HMI Display includes instruction manual and troubleshooting

* Parallel motion of the top sealing bars enables for improved sealing quality and easier maintenance.

* Adcanced Walking beam: transport system consisting of beams and grippers. They hold the pouches and transport them through the

different stations, from the pouch forming to the pouch closing.

* Multiple steps of hot and cold sealing are needed to guarantee sealing quality

* filling : allow hot and cold filling

Packing Process

1.Film Unwinding 2.Bottom Holes Punching 3.Bag Forming 4.Film Guide 5.Bottom Sealing 6.Vertical Seal I 7.Vertical Seal II 8.Tear Notch 9.Photocell 10.Servo Advance 11.Cutting 12.Pouch Catching 13.Pouch Opening 14.Air Flushing 15.Filling I 16.Filling II 17.Spout Seal 18.Vibrator 19.Top Seal I 20.Top Seal II 21.Finished Product 22.Outlet

Focus On Details

1. Ensure good control of film tensile force;

2. More flexible for film roll width or pouch specification;

3. Digital specification switching, simple and convenient;

4. Big torquemoment of pouch advance, suitable for big volume

1. Reduce filling time by half;

2. Improved filling accuracy;

3. Can filling 2 products simultaneously.

1.coding	cold press code or touch code form, date QR code, bar code can be realized
2.easy notch	easy notch cutting
3 Hanging hole	round hole or euro hole
4.independent film frame	Independent doypack bag forming advice
5.film align(optional)	align film automatically
6.top spout (optional)	adding top spout inserting station
7.corner spout (optional)	adding corner spout inserting station
8.double time filling	increase the speed by double-head filling for big package
9.bag support	adding bag support for big package
10 conveyor	select the finished product conveyor belt to transport
