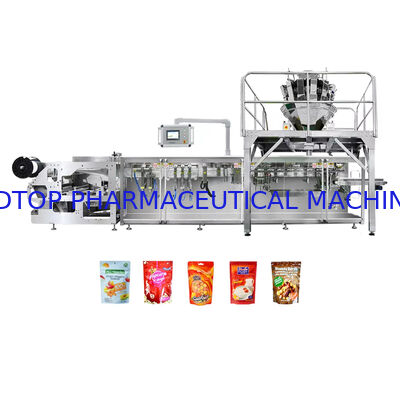

Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine

Name: Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine
Brand: Leadtop Pharmaceutical Machinery
SKU: HorizonTop--Series
Price: 32,509.00 USD
Availability: InStock

Brand Name:	LTPM CHINA
Model Number:	HorizonTop--Series
MOQ:	1 Set
Price:	Consultation and detailed discussion
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	25sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang，China

Certification:

CE,ISO

Packaging Type:

Stand-up Pouch, Bags, Film, Pouch, Sealing

Automatic Grade:

Automatic

Voltage:

380 V/220V

Filling Material:

Powder, Paste, Granule, Liquid, Solid

Application:

Food,Beverage,Commodity,Chemical,Machinery & Hardware,Apparel,Textiles,Cigarettes,Pharmaceutical

Warranty:

5 Years

Packaging Details:

Export Standard Wooden Case

Supply Ability:

25sets/month

Highlight:

automatic horizontal packaging machine

stand up doypack packaging machine

multihead weigher granule packaging machine

Product Description

Products Description

HorizonTop--Series multi-functional HFFS pouch packing machine is designed for doypack with zipper, with functions of making hanging hole or special shapes.

HorizonTop--Series packaging machine can complete pouch forming, feeding, measuring, filling, sealing, date printing, nitrogen filling, counting, and finished product delivery. It is suitable for filling different products such as powder, granule, liquid, cream and other non free-flowing liquid when equipped with feeding and measuring devices.

Machine Data

Model	HorizonTop--210	HorizonTop--250	HorizonTop--360	HorizonTop--450	HorizonTop--500
Speed	30-50 bags/min	30-45 bags/min	15-35 bags/min	40-80 bags/min	3-15 bags/min
Accuracy	± 1.5%	± 1.5%	± 1.5%	± 1.5%	± 1.5%
Bag width	55-200mm	80-250mm	120-350mm	100~200mm	120-400mm
Bag height	100-280mm	100-280mm	100-280mm	100~280mm	150-500mm
capacity	1-5kg	1-5kg	1-5kg	1-5kg	1-15kg
Power	4kw	4kw	4kw	6kw	4kw
Gas consumption	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min
Air pressure value	0.6MPa	0.6MPa	0.6MPa	0.6MPa	0.6MPa
Weight	1450kg	1700kg	2200kg	2000kg	800kg
Size(mm)	290010001390	350010001390	390010001390	380010001200	230010001390
Warranty	5 years	5 years	5 years	5 years	5 years

Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine 2

1.Zipper Release 2.Film Unwind 3.Bottom Holes Punching 4.Bag Forming 5.Film Guide

6.Horizontal Zipper Seal 7.Bottom Seal 8.Vertical Zipper Seal 9.Vertical Seal I 10.Vertical Seal II

11.Tear Notch 12.Photocell 13.Servo Advance 14.Cutting 15.Pouch Catching

16.Pouch Opening 17.Air Flushing 18.Filling I 19.Filling II 20.Top Seal I 21.Top Seal II 22.Finished Product 23.Outlet

Premade Pouch Stand Up Doypack Granule Nuts Multihead Weigher Automatic Horizontal multifunctional packaging machine 3

The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.

A. Powder Packing Solution

Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder etc.

B. Liquid Packing Solution

Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.

C. Solid Packing Solution

Combination multi-head weigther is specialized for solid filling such as candy, nuts, pasta, and dried fruit etc.

D. Granule Packing Solution

Volumetric Cup Filler is specialized for granule filling such as salt, sugat, and seasonings etc.

E. More Packing Solution

For more solution, welcome to contact us.

Focus On Details

Independent Film Unwind Unit

1. Ensure good control of film tensile force;

2. More flexible for film roll width or pouch specification;

3. Better doypack forming;

Servo Advance System

1. Digital specification switching, simple and convenient;

2. Stable pouch advance with less deviation;
3. Big torquemoment of pouch advance, suitable for big volume

Dual Filling Station

1. Reduce filling time by half;

2. Improved filling accuracy;
3. Can filling 2 products simultaneously.

Zipper Function

1.Independent zipper unwind device;

2. Stable zipper tensile force control;
3.Even zipper seal.
