100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine

Brand Name:	LTPM CHINA
Model Number:	HorizonTop--Series
MOQ:	1 Set
Price:	Consultation and detailed discussion
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	25sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang，China

Certification:

CE,ISO

Packaging Type:

Stand-up Pouch, Bags, Film, Pouch, Sealing

Automatic Grade:

Automatic

Voltage:

380 V/220V

Filling Material:

Powder, Paste, Granule, Liquid, Solid

Application:

Food,Beverage,Commodity,Chemical,Machinery & Hardware,Apparel,Textiles,Cigarettes,Pharmaceutical

Warranty:

5 Years

Packaging Details:

Export Standard Wooden Case

Supply Ability:

25sets/month

Highlight:

100ml standup pouch packaging machine

automatic horizontal doypack machine

multifunctional top spout packaging machine

Product Description

Products Description

Equipped with servo motor filler,LTPMCHINA powder packaging machines could realize high filling accuracy, fast packing speed, easy to operate and adjust. It is widely applied in Pharmaceutical, food, Daily chemical etc. industries all over the world like United State, Europe, Southeast Asia, South Africa etc.with CE certification and tech. Patents.

Machine Data

Model	HorizonTop--210	HorizonTop--250	HorizonTop--360	HorizonTop--450	HorizonTop--500
Speed	30-50 bags/min	30-45 bags/min	15-35 bags/min	40-80 bags/min	3-15 bags/min
Accuracy	± 1.5%	± 1.5%	± 1.5%	± 1.5%	± 1.5%
Bag width	55-200mm	80-250mm	120-350mm	100~200mm	120-400mm
Bag height	100-280mm	100-280mm	100-280mm	100~280mm	150-500mm
capacity	1-5kg	1-5kg	1-5kg	1-5kg	1-15kg
Power	4kw	4kw	4kw	6kw	4kw
Gas consumption	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min
Air pressure value	0.6MPa	0.6MPa	0.6MPa	0.6MPa	0.6MPa
Weight	1450kg	1700kg	2200kg	2000kg	800kg
Size(mm)	290010001390	350010001390	390010001390	380010001200	230010001390
Warranty	5 years	5 years	5 years	5 years	5 years

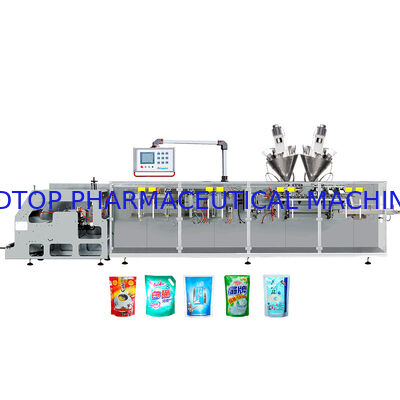

100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine 1

1.Zipper Release 2.Film Unwind 3.Bottom Holes Punching 4.Bag Forming 5.Film Guide 6.Horizontal Zipper Seal 7.Bottom Seal 8.Vertical Zipper Seal 9.Vertical Seal I 10.Vertical Seal II 11.Tear Notch 12.Photocell 13.Servo Advance 14.Cutting 15.Pouch Catching 16.Pouch Opening 17.Air Flushing 18.Filling I 19.Filling II 20.Pouch Stretching 21.Top Seal I 22.Top Seal II 23.Finished Product 24.Outlet

100ml Standup Pouch Roll Film Top Spout Doypack Automatic Horizontal multifunctional packaging machine 2

Focus On Details

Light Walking Beam

1. Faster working speed
2. Longer operational life span

Servo Advance System

1. Easy computerized specification change

2. Stable pouch advance with less deviation

3. Big torquemoment of pouch advance, suitable for big volume

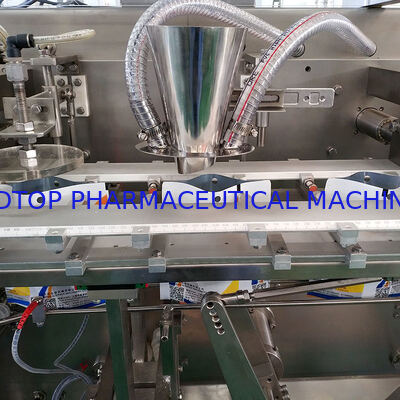

Dual Filling Station

1. Reduce filling time by half
2. Improved filling accuracy
3. Can filling 2 products simultaneously
