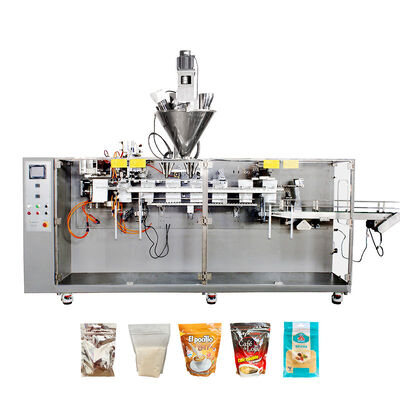

Food Grade Sea Salt Brown Sugar 1kg 2kg Pouch Filling Automatic Horizontal multifunctional packaging machine

Food Grade Sea Salt Brown Sugar 1kg 2kg Pouch Filling Automatic Horizontal multifunctional packaging machine

Brand Name: LTPM CHINA
Model Number: HorizonTop--Series
MOQ: 1 Set
Price: Consultation and detailed discussion
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25sets/month
Detail Information
Place of Origin:
Zhejiang,China
Certification:
CE,ISO
Packaging Type:
Stand-up Pouch, Bags, Film, Pouch, Sealing
Automatic Grade:
Automatic
Voltage:
380 V/220V
Filling Material:
Powder, Paste, Granule, Liquid, Solid
Application:
Food,Beverage,Commodity,Chemical,Machinery & Hardware,Apparel,Textiles,Cigarettes,Pharmaceutical
Warranty:
5 Years
Packaging Details:
Export Standard Wooden Case
Supply Ability:
25sets/month
Highlight:

food grade horizontal packaging machine

,

automatic pouch filling machine

,

multifunctional sea salt packaging machine

Product Description

Products Description

Ce Certified Factory Price Premade Bag Frozen Food Fruits Frozen Dumpling Packing Machine
Equipped with stable filler, LTPMCHINA granule packaging machines could realize high filling accuracy, fast packing speed, easy to operate and adjust. It is widely applied in Pharmaceutical, food, Daily chemical etc. industries all over the world like United State, Europe, Southeast Asia, South Africa etc.with CE certification and tech. Patents.
Food Grade Sea Salt Brown Sugar 1kg 2kg Pouch Filling Automatic Horizontal multifunctional packaging machine 0

Machine Data
Model
HorizonTop--210
HorizonTop--250
HorizonTop--360
HorizonTop--450
HorizonTop--500
Speed
30-50 bags/min
30-45 bags/min
15-35 bags/min
40-80 bags/min
3-15 bags/min
Accuracy
± 1.5%
± 1.5%
± 1.5%
± 1.5%
± 1.5%
Bag width
55-200mm
80-250mm
120-350mm
100~200mm
120-400mm
Bag height
100-280mm
100-280mm
100-280mm
100~280mm
150-500mm
capacity
1-5kg
1-5kg
1-5kg
1-5kg
1-15kg
Power
4kw
4kw
4kw
6kw
4kw
Gas consumption
0.6m3/min
0.6m3/min
0.6m3/min
0.6m3/min
0.6m3/min
Air pressure value
0.6MPa
0.6MPa
0.6MPa
0.6MPa
0.6MPa
Weight
1450kg
1700kg
2200kg
2000kg
800kg
Size(mm)
2900*1000*1390
3500*1000*1390
3900*1000*1390
3800*1000*1200
2300*1000*1390
Warranty
5 years
5 years
5 years
5 years
5 years



Food Grade Sea Salt Brown Sugar 1kg 2kg Pouch Filling Automatic Horizontal multifunctional packaging machine 1

1.premade Pouch Stack 2.Flip-Out Pouch-Picking Unit 3.Pouch opening 4.Opening Assistance 5.Air Flushing 6.First Filling 7.Second Filling 8.Pouch Stretching 9.Top Seal I 10.Top Seal II 11.Outlet

Food Grade Sea Salt Brown Sugar 1kg 2kg Pouch Filling Automatic Horizontal multifunctional packaging machine 2

The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.


A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.

Food Grade Sea Salt Brown Sugar 1kg 2kg Pouch Filling Automatic Horizontal multifunctional packaging machine 3



Focus On Details
Food Grade Sea Salt Brown Sugar 1kg 2kg Pouch Filling Automatic Horizontal multifunctional packaging machine 4

Light Walking Beam

1. Faster working speed
2. Longer operational life span

Food Grade Sea Salt Brown Sugar 1kg 2kg Pouch Filling Automatic Horizontal multifunctional packaging machine 5

Servo Advance System

1. Easy computerized specification change

2. Stable pouch advance with less deviation

3. Big torquemoment of pouch advance, suitable for big volume

Food Grade Sea Salt Brown Sugar 1kg 2kg Pouch Filling Automatic Horizontal multifunctional packaging machine 6

Dual Filling Station

1. Reduce filling time by half
2. Improved filling accuracy
3. Can filling 2 products simultaneously
