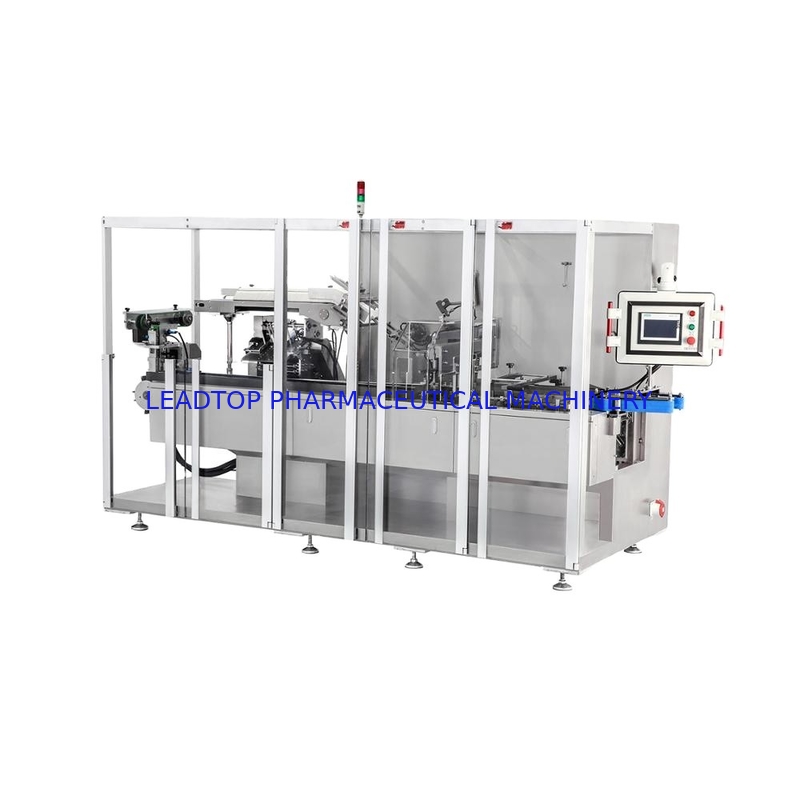

Horizontal Automatic Carton Box Packing Machine 1400*900*1200

horizontal cartoning machine is the latest product developed by our company. It has the advantages of wide application range, high production efficiency and multi-function. At the same time, it can be used online with aluminum plastic, aluminum-aluminum and other packaging machines to achieve the best results. It can also meet the requirements of GMP., which is National Standard for Quality Control of Pharmaceutical Production, This machine can pack all kinds of regular items such as tablets, traditional Chinese medicine products, ampoules, cillin bottles and small long bodies. At the same time, it is suitable for food packaging, cosmetic packaging and packaging in related industries, and has a wide range of applications. The product can be replaced regularly according to different user requirements, and the adjusting time of the mould is short. The assembly and debugging are simple. The outlet of the cartoning machine can be matched with various types of medium-box film packaging equipment. It is not only suitable for the production of single variety in large quantities, but also can satisfy the production of multiple varieties in small quantities for users.

Performance characteristics:
1. The cartoning machine is designed intermittently and controlled by PLC. Its structure is simple and easy to maintain. The machine automatically completes the following processes: feeding box, open box, folding instructions, packing (instructions) and sealing.
2. The whole machine has high packing speed, low mechanical wear, high output and low mechanical running speed.
3. This machine adopts VT4.4 vacuum pump, automatic vacuum box taking, large angle box opening, to ensure the accuracy of box opening.
4. Adopt German GUK manual automatic folding system and transmission device (optional).
5. The manual adopts the wheel-type box-entry system controlled by PLC, which avoids the sliding of the manual caused by the asynchronism of the traditional box-entry mechanism. The system can also realize the adjustment of the folding length of the manual box-entry.
6. The carton-loading system operates intermittently and has the function of pushing overload protection to protect the safe carton-loading of products and instructions.
7. It is more convenient to adjust and maintain the machine. Various ways of closing boxes and other devices can be selected. Replacement of cartons of different sizes does not need to change the mould, just adjust the positioning according to the size of the box.
8. There are enough strength and stiffness between the frame and the plate. The frame is equipped with the main drive motor and clutch brake of the machine. The plate is equipped with various transmission systems. Torque overload protector can realize the separation of the main drive motor and the transmission parts under the condition of overload, so as to protect the machine parts from damage.
9. Safety:
Cardboard-free boxes: no boxes; automatic shutdown and sound alarm.
No instructions: empty box is removed and sound alarm is issued.
No products: cartons and instructions waiting and sound alarm.
10.Equipped with a steel typewriter system, it can also be accessed to the jet printer for collaborative completion.
