Automatic Bottle Cartoner Quick Change Mold Plates Precise Lateral Movement For High-speed Cartoning

Brand Name:	LTPM CHINA
Model Number:	ZH-100B
MOQ:	1
Price:	70000
Payment Terms:	30% TT as deposit and 70% before shipping
Supply Ability:	25 sets/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Type:

Automatic

Product Name:

Automatic Cartoning Machine

Operation System:

Touch Screen

Dimension:

2850*1250*1650mm

Air Pressure:

0.7Mpa

Voltage:

220V/380V

Packaging Accuracy:

≤±1mm

Packaging Size:

L:50-200mm, W:20-100mm, H:15-60mm

Packaging Details:

Wooden Case

Supply Ability:

25 sets/ month

Highlight:

High-Speed Bottle Cartoner

Automatic Bottle Cartoner

Precise Lateral Movement Bottle Cartoner

Product Description

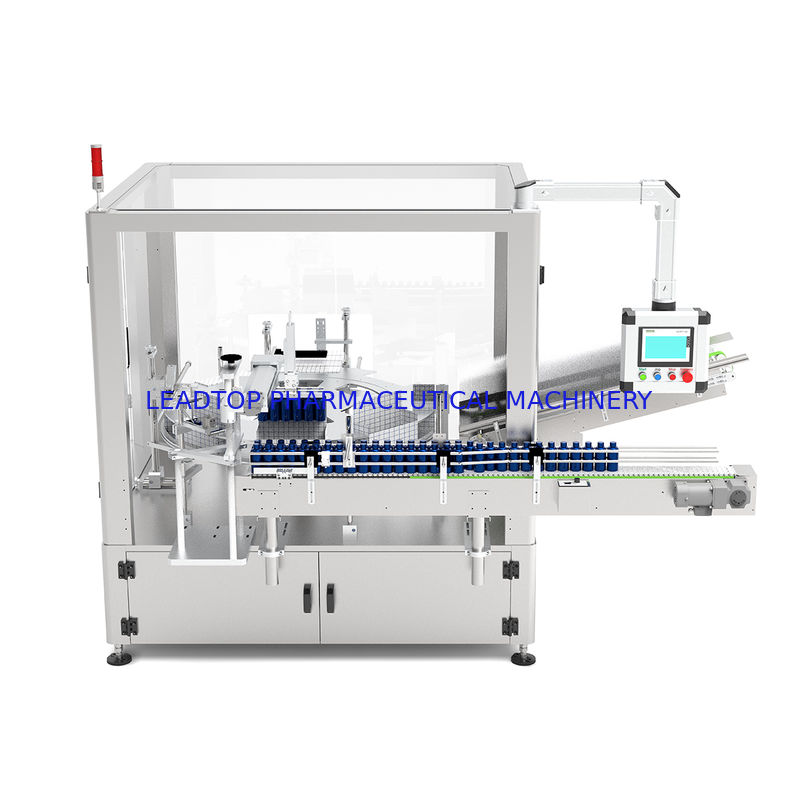

Automatic Bottle Cartoner Quick Change Mold Plates Precise Lateral Movement For High-speed Cartoning 0

Product Introduction

The Automatic Bottle Cartoner is a versatile packaging solution that combines efficiency and flexibility. It is equipped with a precision lateral movement mechanism driven by servo motors, ensuring accurate bottle placement with minimal error. The machine's dual-row diversion system effectively manages single-row bottle flows, converting them into double rows for efficient cartoning. The quick-change mold plates enable rapid adjustments for different bottle sizes and shapes, supporting multi-species small batch production. This cartoner is capable of processing up to 30 boxes per minute, making it suitable for high-demand packaging environments. Its robust design and advanced features ensure consistent performance and reliability in various industrial applications.

System Core Functions and Processes

Clamping mechanism: servo-driven screw module to realize high-precision lateral movement (positioning ±0.1mm), adapting to different cartoning position requirements. Clamping adopts parallel jaw cylinder, compatible with different bottle types.

Bottle Characteristics	Essentials of Mold Design	Case Adaptation
Amphora	V-Groove Silicone Liner	Mineral Water Bottle/ Glass Infusion Bottle
Square Bottle	Flat Plywood + Non-slip Texture	Daily Detergent Bottle
Shaped Bottle	3D Printed Profiling Soft Claws	Cosmetic Curve Bottle
Fragile Bottle	Adaptive Clamping Jaws with Air Bags	Ampoules/Vaccine Vials

Convenient specification switching: only need to adjust the parameters of the manipulator (e.g., pitch, speed) or replace the gripper parts, no need for large-scale modification of the equipment, support for multi-species small batch production.
Single- and double-row compatibility: the same system can handle different packaging needs through the logical control of side push cylinders and manipulators.
Continuous operation: non-stop feeding design maximizes equipment utilization.
