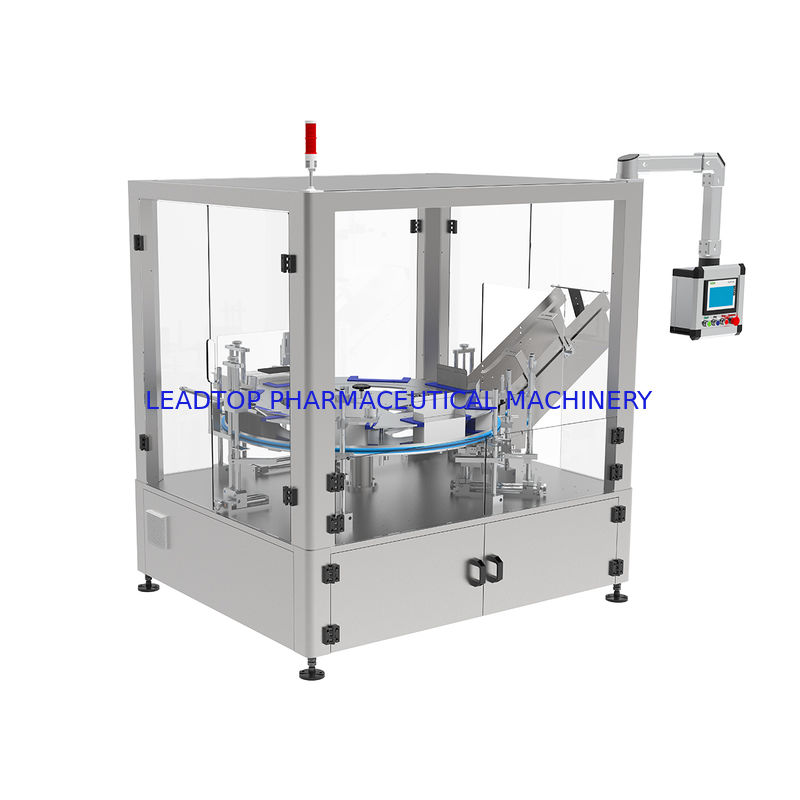

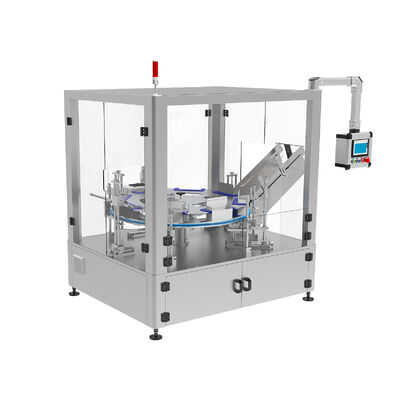

Name: Customized Cartoning Machine With 8-station Design And Quick-change System For High-speed Top Loading Packaging
Brand: Leadtop Pharmaceutical Machinery
SKU: ZH-100/8
Price: 20000 USD
Availability: InStock

Home > products > Automatic Cartoning Machine >

Customized Cartoning Machine With 8-station Design And Quick-change System For High-speed Top Loading Packaging

8 Station Cartoning Machine

Quick Change System Cartoning Machine

Customized Cartoning Machine

Place of Origin:

China

Brand Name:

LTPM CHINA

Certification:

Model Number:

ZH-100/8

Request A Quote

Product Details

Type:

Automatic

Product Name:

Automatic Cartoning Machine

Operation System:

Touch Screen

Dimension:

2850*1250*1650mm

Air Pressure:

0.7Mpa

Voltage:

220V/380V

Packaging Accuracy:

≤±1mm

Packaging Size:

L:50-200mm, W:20-100mm, H:15-60mm

Multi Bottle Cartoning Machine With Servo-driven Clamps And Dual-row Diversion For Efficient Packaging Of Various Bottle Types

Get Best Price

Big Size Cartoner With 8-station Quick-change System For Fast Packaging Of Large Boxes Up To 200x130mm

Get Best Price

Customized Cartoning Machine With 8-station Design And Quick-change System For High-speed Top Loading Packaging

Get Best Price

1450KG Automatic Cartoning Equipment With Touch Screen Packaging Size H15-60mm

Get Best Price

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Contact Now

Product Description

Customized Cartoning Machine With 8-station Design And Quick-change System For High-speed Top Loading Packaging 0

Product Introduction

Automatic Vertical Cartoning Machine (box folding→filling→packing) It is specially design to automatic pack small quantities’ multi size box. With low cost and only require small area. The whole equipment is made of stainless steel 304, made of aluminum alloy with anode treatment. Rust proof long service life and easily clean.

Product application:

This machine is applicable for cylinder-shaped, tubular and Irregular shape products. And it is used for cosmetic, bottles,blister packs, pouches, sachets or tube etc. packing into square box.

( There are more products that can be packaged than the ones in the picture. )

Core Design Highlights

Characterization	Realization of the program	User value
Streamlining of Workstations	8-station (traditional 12-station simplified)	Reduced mechanical complexity and 40% lower failure rate

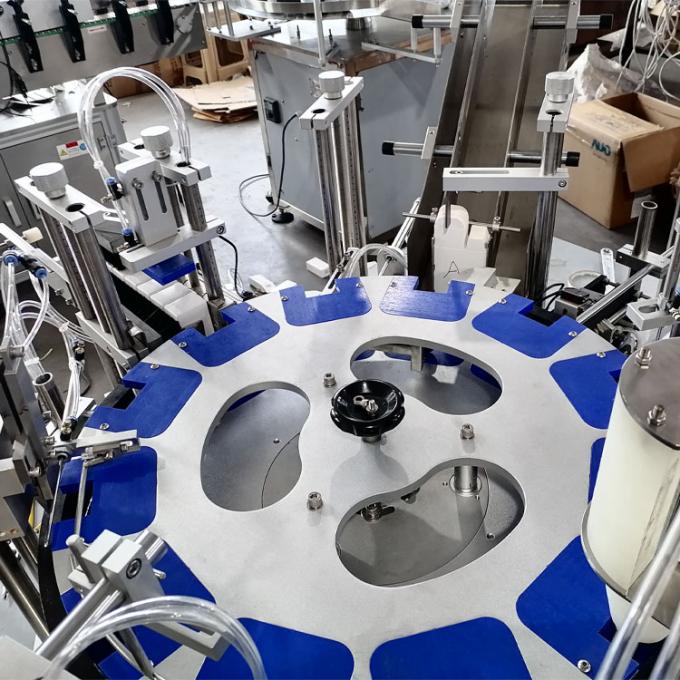

Single-level Turntable	One-piece aluminum alloy turntable (φ930mm)	No stacking mechanism, 50% reduction in changeover adjustment time
Quick-change System	Modular station mold plate	Replacement specification in just 15 minutes
Interface	Standard mechanical/electrical docking ports (ISO 9409)	Seamless integration of front-end charging/back-end labeling, laminating, etc.

1.Cam splitter drive system
Model: 80DE-8-120-2R-S3-S3-VW1 (for 8-station)
Large box load-bearing program: turntable selection of high-strength aviation aluminum alloy (single station load-bearing ≥ 5kg)

2.Safety Protection Configuration (Optional)
Class A encoder: Safe guarding of cartoning stations (detection height 400 mm, in accordance with ISO 13849)
Door lock linkage: access door open → splitter brake immediately (response time ≤50ms)
Double protection:
Emergency stop button (mushroom head type, IP67 protection)
Torque overload protection (automatic clutching of splitter overload)
