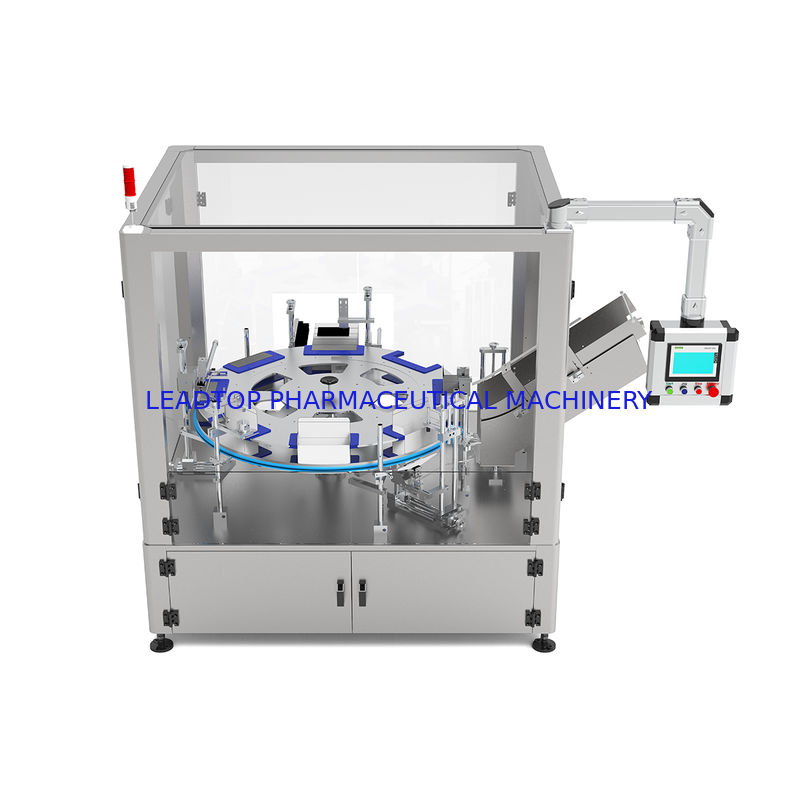

Big Size Cartoner With 8-station Quick-change System For Fast Packaging Of Large Boxes Up To 200x130mm

Brand Name:	LTPM CHINA
Model Number:	ZH-100/8
MOQ:	1
Price:	20000
Payment Terms:	30% TT as deposit and 70% before shipping
Supply Ability:	25 sets/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Type:

Automatic

Product Name:

Automatic Cartoning Machine

Operation System:

Touch Screen

Dimension:

2850*1250*1650mm

Air Pressure:

0.7Mpa

Voltage:

220V/380V

Packaging Accuracy:

≤±1mm

Packaging Size:

L:50-200mm, W:20-100mm, H:15-60mm

Packaging Details:

Wooden Case

Supply Ability:

25 sets/ month

Highlight:

8-Station Cartoner

Quick Change System Cartoner

Big Size Cartoner

Product Description

Product Introduction

This customized cartoning machine is engineered for high-efficiency top-loading packaging operations. Featuring an 8-station configuration (optimized from traditional 12 stations), it reduces mechanical complexity while improving reliability—achieving 40% lower failure rates. The single-piece aluminum alloy turntable (φ930mm) enables rapid format changes, saving 50% adjustment time compared to conventional designs.

Key advantages include

✔ Quick-change system with modular mold plates for fast specification switching (15-minute setup)
✔ ISO 9409 standard interfaces for seamless integration with upstream/downstream equipment
✔ Precision cam-driven mechanism (80DE-8-120-2R-S3-S3-VW1 model) ensuring stable operation
✔ Safety features like Class A light curtains and emergency stop protection

Ideal for packaging automatic bottom boxes (200x130xH50-150mm) at speeds of 15-30 boxes/minute, this machine supports versatile applications in food, pharmaceuticals, and consumer goods industries. The compact yet robust design (1kW power consumption) makes it suitable for both small-batch and continuous production environments.

Characterization	Realization of the program	User value
Streamlining of Workstations	8-station (traditional 12-station simplified)	Reduced mechanical complexity and 40% lower failure rate
Single-level Turntable	One-piece aluminum alloy turntable (φ930mm)	No stacking mechanism, 50% reduction in changeover adjustment time
Quick-change System	Modular station mold plate	Replacement specification in just 15 minutes
Interface	Standard mechanical/electrical docking ports (ISO 9409)	Seamless integration of front-end charging/back-end labeling, laminating, etc.

Big Size Cartoner With 8-station Quick-change System For Fast Packaging Of Large Boxes Up To 200x130mm 0
