Home > products > Automatic Cartoning Machine >

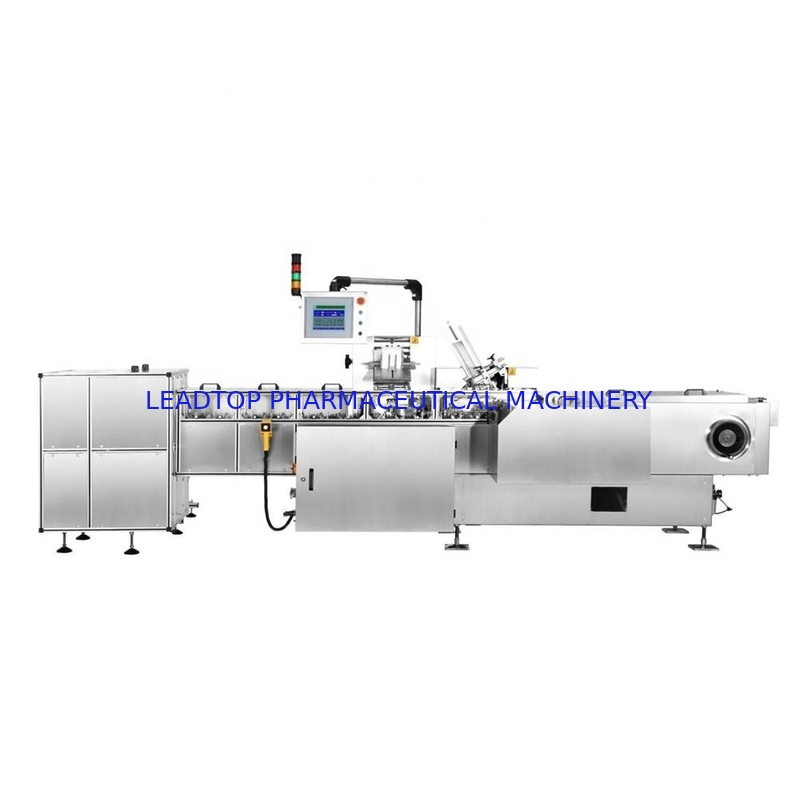

Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder

Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder

Multifunction Automatic Carton Machine

Automatic Small Sachet Chocolate Carton Machine

1.5KW Automatic Carton Machine

Place of Origin:

China

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

ZH-Series

Contact Us

Request A Quote
Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder
Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder
Product Details
Demension:
4300×1600×1620mm
Max Speed:
180cartons/min
Electric Power:
380V 50HZ
Power:
1.5KW
Leaflet Size(L×W):
130×130~170×260mm2
Air Consumption:
0.5 Mpa, Rate Of Flaw≥0.6m³/min
Weight:
2000KG
Paper Weight:
55-65g
RELATED PRODUCTS
Good price Touch Screen Automatic Cartoning Machine For 15-60mm Packaging Size online

Touch Screen Automatic Cartoning Machine For 15-60mm Packaging Size

Get Best Price
Good price Electric Automatic Carton Packaging Machine 0.7Mpa 2.5KW Touch Screen PLC online

Electric Automatic Carton Packaging Machine 0.7Mpa 2.5KW Touch Screen PLC

Get Best Price
Good price 25-55boxes/Min Automatic Cartoning Machine 2850*1250*1650mm Photoelectric Sensor online

25-55boxes/Min Automatic Cartoning Machine 2850*1250*1650mm Photoelectric Sensor

Get Best Price
Good price Automatic Cartoning Equipment For Plastic/Aluminum Foil Packaging With Touch Screen online

Automatic Cartoning Equipment For Plastic/Aluminum Foil Packaging With Touch Screen

Get Best Price
Contact Us
86-0577-65158955
info@chinaleadtop.com
86-0577-65158944
Contact Now
Product Description

Automatic Cartoning Machine Can complete the following functions automatically: Feeding, Leaflet folding, Carton opening, Blister inserting, Leaflet inserting, Batch number on cartons, Cartons sealing, etc.

Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder 0



Technical Parameter



Max Speed 180cartons/min
Carton size(L×W×H) 78×33×15~170×70×60mm3
Leaflet size(L×W) 130×130~170×260mm2
Power

Supply: 380V/3-Phase / AC /50Hz

or according to the customers’ requirements

Consumption: About 4kw
Air

Pressure: 0.6-0.9Mpa

Consumption: <5m³/h
Dimension(L×W×H) 4300×1600×1620mm
Weight About 2000 kg
Noise < 85dB

Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder 1

Packing ranges

Blisters, bottles, and little things etc.



Special functions

Double pushers, one is for inserting blisters, the other is for inserting leaflets. This design can guarantee the safety of products.

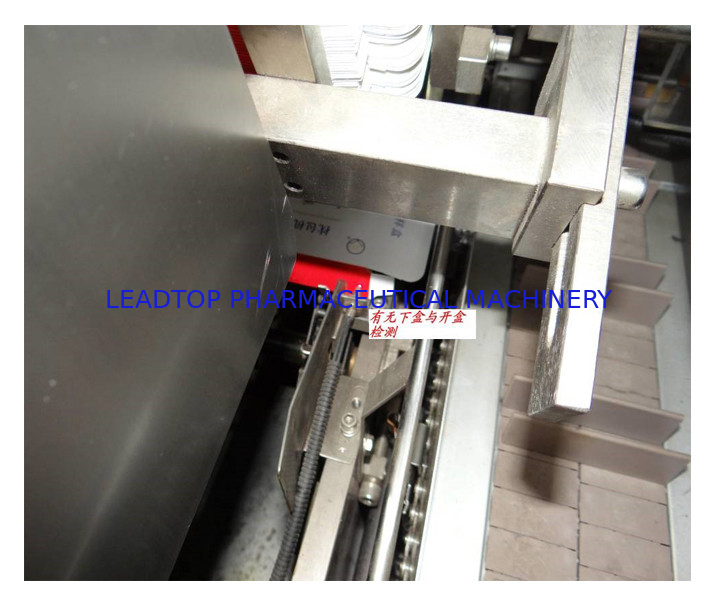

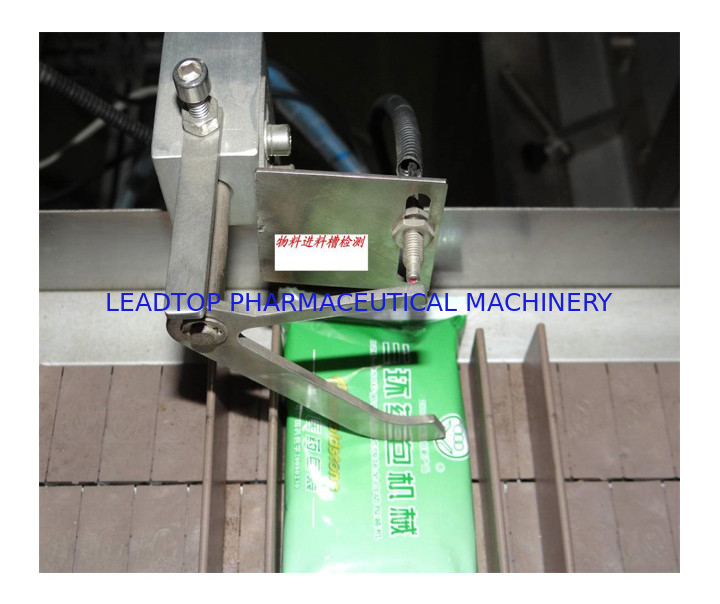

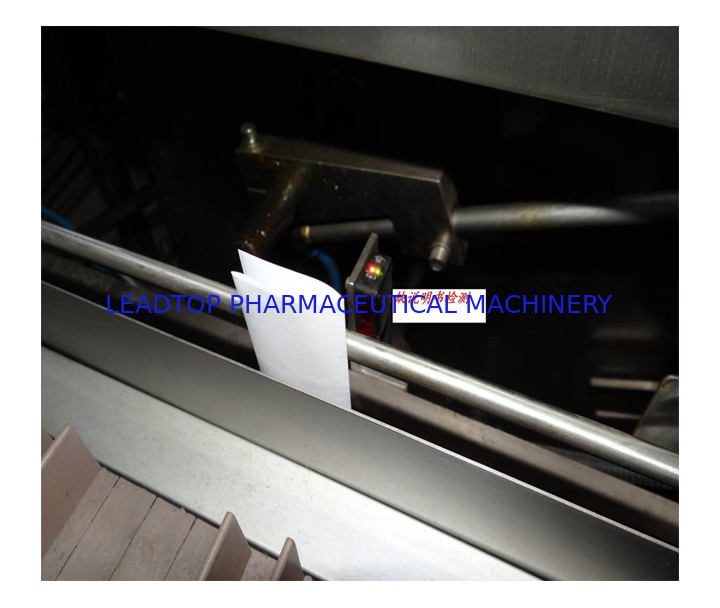

Advanced detection system

If no blister, will no leaflet. If no leaflet, will no cartons sucked. If no carton, will no pushing of the pushers.

Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder 2

Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder 3

Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder 4



Company Profile
Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder 5
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models. - LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Multifunction Automatic Cartoning Box Packaging Machine Small Sachet Chocolate Powder 6
Our Workshop
FAQ
Q: What is the warranty period for your machine?
A: 5 years free warranty.

Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.

Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.

Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
