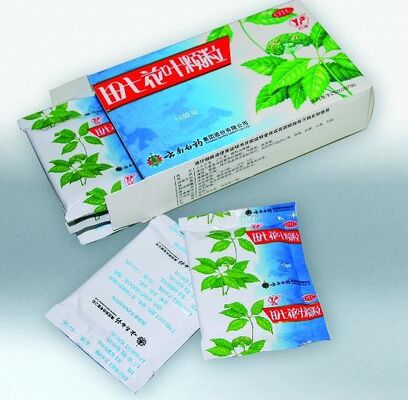

Vertical Type Automatic Cartoning Machine For Powder Sachet Packaging
1.Air consumption: 120-160L/min
2.Compressed Air Pressure: 0.6MPa
3.Power consumption in KW: 0.75
4.Steady production speed: 50-100 cartons/min
5.Noise: <70 dB
6.Weight in kg: 1100

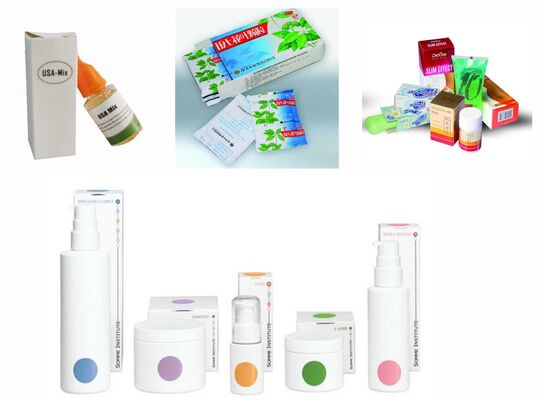

This machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes. (Options hot-glue device extra)
The machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.
1) Continuous mechanical feeding materials and carton, and working of each function part are in harmony, stable and reliable.
2) When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.
3) Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
4) Vibrating material categorizing and feeding mechanism is stable and reliable.
5) Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
6) It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
7) Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
8) Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure
|Weight in kg||1100|
|Steady production speed||50-100 cartons/min|
|Size range||(80-250) ×(90-170)mm (L×W)|
|Fold range||(1-4 )fold|
|Notice: The leaflet can be folded by the machine|
|Carton Size mm||(65-125)×(30-85)×(12-50)mm|
|Standard power supply||220V – 50Hz|
|Power consumption in KW||0.75|
|Compressed Air Pressure||0.6MPa|
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore
