Small Automatic Single Punch Rotary Tablet Press Machine For Chemical / Foodstuff

Small Automatic Single Punch Rotary Tablet Press Machine For Chemical / Foodstuff

rotary tablet compression machine

rotary tableting machine

Place of Origin:


Brand Name:

LTPM China



Model Number:


Contact Us

Request A Quote
Product Details
Product Description


Small Automatic Rotary Tablet Press Machine , Pill Press Machine



Quick Detail:


Station:5 Unit

The Max Diameter Of The Tablet: 13mm

Max Thickness Of The Tablet: 6mm

Model No.: ZP-5D

Capacity: 10,000 pcs/hour

Material: Stainless steel 304

Thickness Of Die: 28mm

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate





1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.

3. It is adopts the import Frequency Timing with Electromagnetism Clutch.

4. The system of Hydraulic Pressure keep the working pressure under steady, when the pressure over-loading, it will be stopped the machine automatically.

5. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.

6. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust





This machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.




Stations (unit) 5
Maximum compression (KN) 80
Max. Diameter of tablet to be produced (mm) 13
Max. Filling depth (mm) 22
Max. Thickness of tablet (mm) 6
Diameter of the upper/lower shank (mm) 32
Length of the upper shank (mm) 175
Length of the lower shank (mm) 183
Diameter of the die (mm) 36
Thickness of the die (mm) 28
The diameter of the circle of the central pitch of upper &lower punches on the turret 320mm
Rotary speed of the turret (rpm) 10-40
Capacity of the tablets (max ten thousand tablets/hour) 2.5
Area to occupy (mm 2 ) 930x950
Height of the machine (mm) 1550
motor power (kw) 2
Net weight of the machine (kg) 800


Competitive Advantage:


1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)

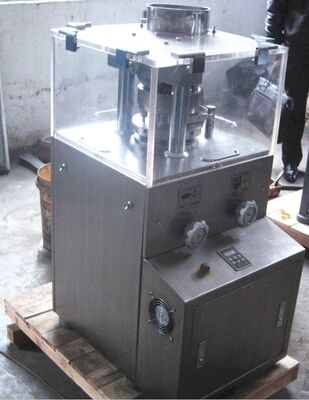

Small Automatic Single Punch Rotary Tablet Press Machine For Chemical / Foodstuff 0

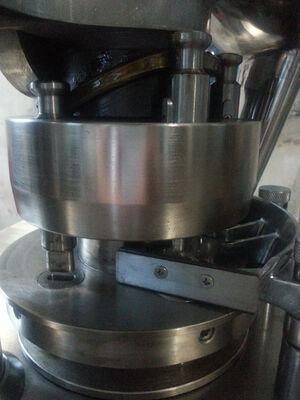

Small Automatic Single Punch Rotary Tablet Press Machine For Chemical / Foodstuff 1
