CE Paracetamol Double Rotary Tablet Press Machine For Large Capacity

CE Paracetamol Double Rotary Tablet Press Machine For Large Capacity

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE
Model Number: ZP-31D

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: In 25 days after receiving the deposit
Payment Terms: 30% TT as deposit and 70% before shipping
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Capacity: 45,000-110,000tablets/hour Material Consist: Painted Matel
Max. Thickness: 6mm Max.Diameter: 12mm
Max.Pressure: 40KN Power: 2.2Kw
High Light:

rotary tablet compression machine


rotary tableting machine

Product Description

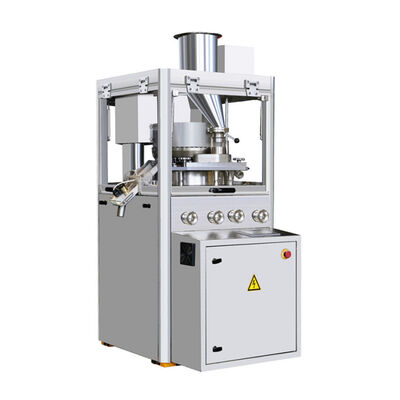

CE China Rotary Paracetamol Double Layer Tablet Press Machine


High quality machines are based on advanced and reasonable design. New design GZPK370 series high speed tablet press is developed on the basis of years manufacture expertise with it’s excellent standardization and modularity in series.


Main Application
The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece ,be carved characters ,special shapes and double color piece prescription .It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry ,foods,electronics.(Note: when manufacturing double color piece ,it only need replacing components and adding powder absorbing apparatus which greatly lowers the cost .


Structure Features

1. The cover is made of stainless steel with close type.The inner tablet surface is also applied with stainless steel materials which could keep surface luster and prevent from being polluted crossly, comply with GMP requirement.

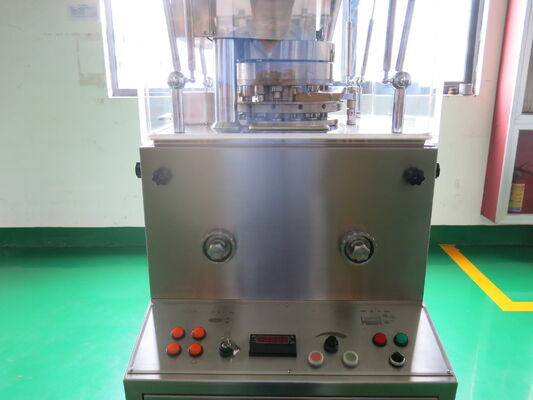

2. Equipped with plexiglass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain.
3. All monitors and operating components are in good order.
4. Applying with frequency changing, speed regulating apparatus to do electricity regulation.The convenient operation and smooth revolving are safe and correct.
5. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.

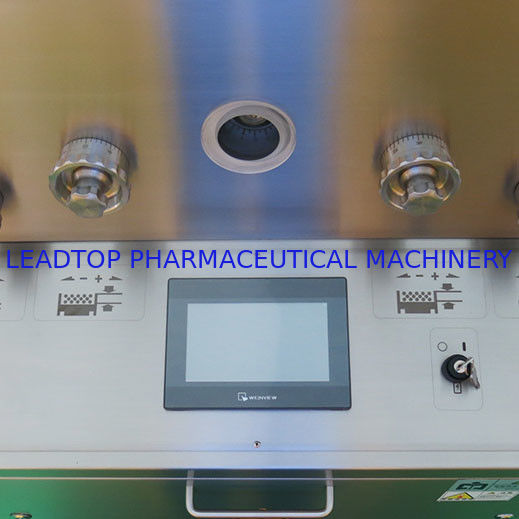

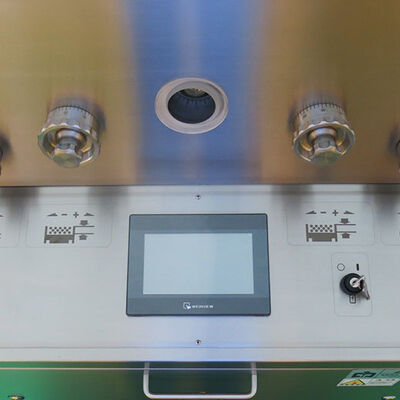

6. Combining machine with electricity, equipped with touching key and screen.
7. The first of its kind to use semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
8. Ransmitting system is sealed in the oil box under the main machine which is a separate component .No pollution and easy to send out heat and resist grinding.
9. Powder-absorbing apparatus could absorb the powder in the piece-pressing room.

Main Technical Data:
Stations (unit) 31 Thickness of the die (mm) 28
Maximum compression (KN) 80 The diameter of the circle of the central pitch of upper &lower punches on the turret 320mm
Max. Diameter of tablet to be produced (mm) 13 Rotary speed of the turret (rpm) 10-35
Max. Filling depth (mm) 15 Capacity of the tablets (tablets/hour) 150,000
Max. Thickness of tablet (mm) 6 Area to occupy (mm 2 ) 1500*1300*1650mm
Diameter of the upper/lower shank (mm) 32 Height of the machine (mm) 1650
Length of the upper shank (mm) 175 motor power (kw) 3
Length of the lower shank (mm) 183 Net weight of the machine (kg) 1.8
Diameter of the die (mm) 36
