    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE
    Model Number: ZP-17D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: In 25 days after receiving the deposit
    Payment Terms: 30% TT as deposit and 70% before shipping
    Supply Ability: 25 sets/Month
    Contact Now
    Detailed Product Description
    Production Capacity: 37700 Tablets/hour Max. Pressure(KN): 60
    Max. Tablet Thickness(mm): 15 Max. Tablet Diameter(mm): 20
    Voltage: 380V 50Hz Power(W): 2.2 KW

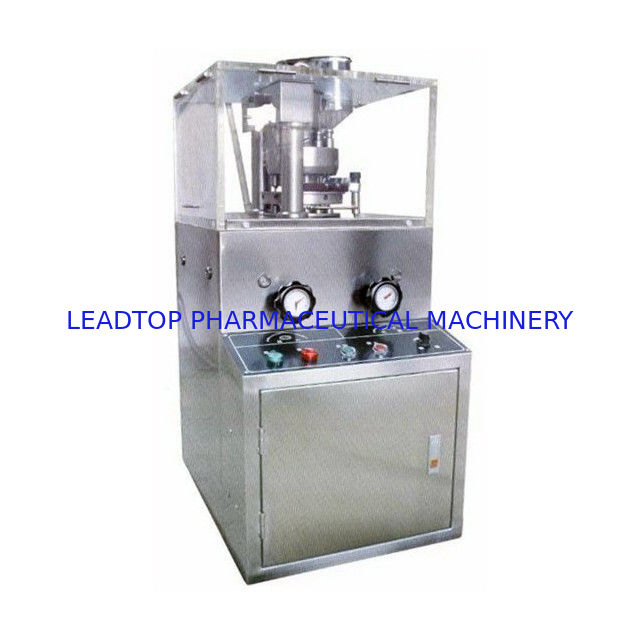

    Pharmaceutical Equipment Rotary Tablet Press Machine For Dishwsher Salt Tablets

    Product Description

    This machine is suitable for samll scale tablet production. Tablets formed twice by main pressing and pre-pressing. All of the parts are easy to be fixed, disassembled and cleaned. The machine is easy to operate and maintenance. The machine running stably and durably. The machine meets GMP requirements. It can press round tablets, engraved tablets and irregular tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.



    Feature:
    1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

    2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.

    3. It is adopts the import Frequency Timing with Electromagnetism Clutch.

    4. The system of Hydraulic Pressure keep the working pressure under steady, when the pressure over-loading, it will be stopped the machine automatically.

    5. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.

    6. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust.

    Pharmaceutical Equipment Rotary Tablet Press Machine For Dishwsher Salt Tablets

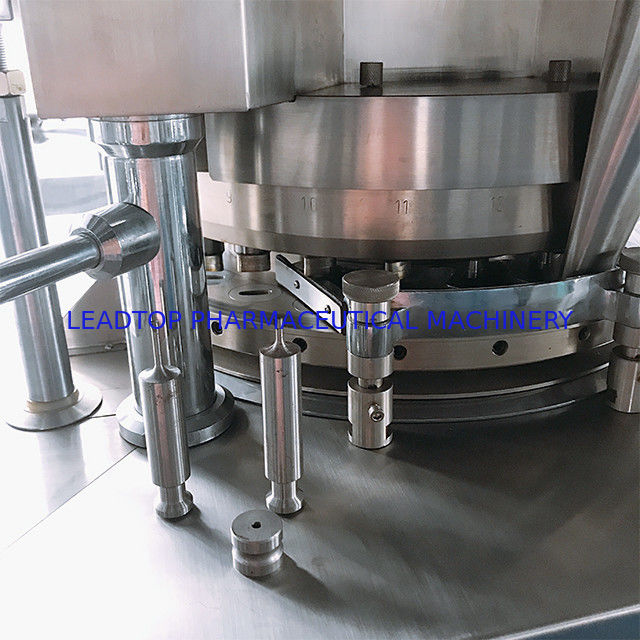

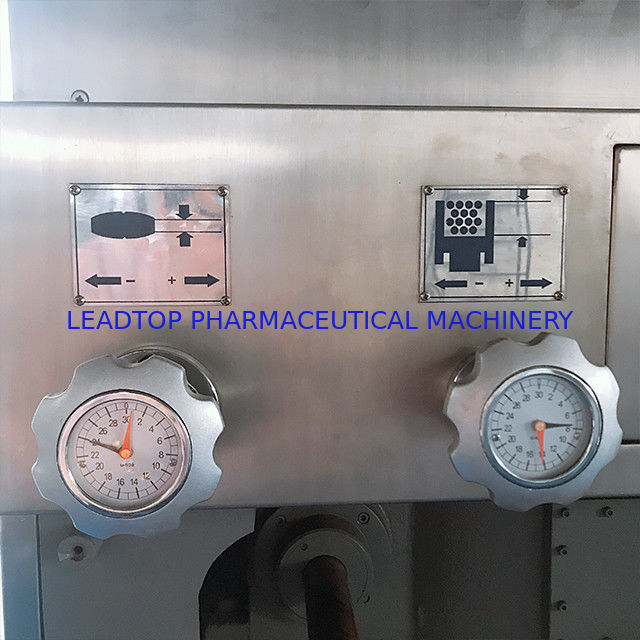

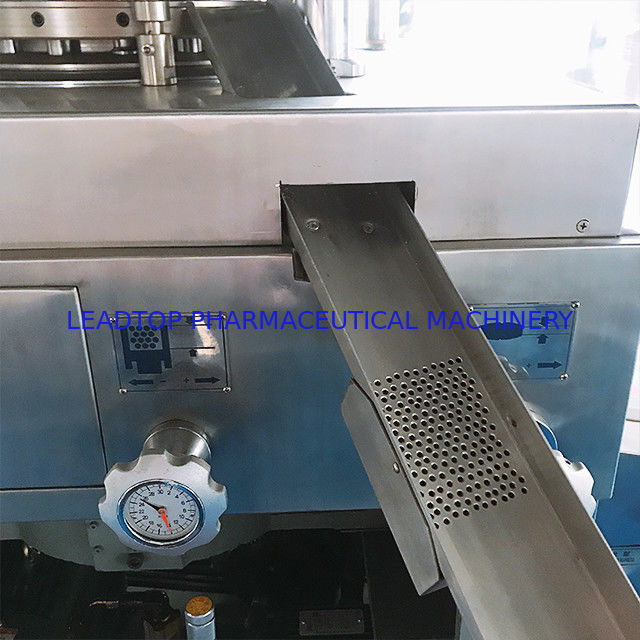

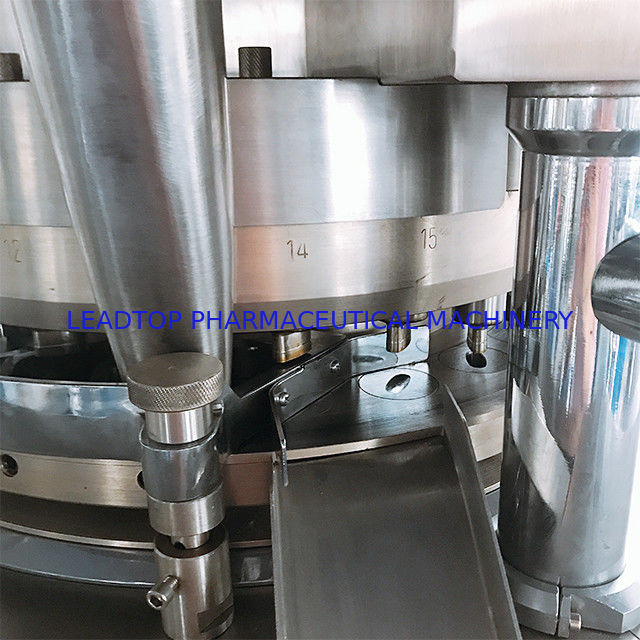

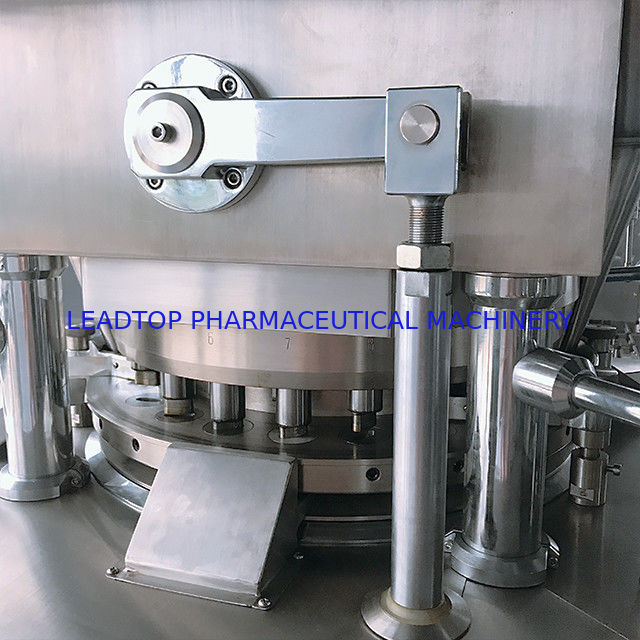

    Detailed Images
    Pharmaceutical Equipment Rotary Tablet Press Machine For Dishwsher Salt Tablets
    Pharmaceutical Equipment Rotary Tablet Press Machine For Dishwsher Salt Tablets
    Pharmaceutical Equipment Rotary Tablet Press Machine For Dishwsher Salt Tablets
    Pharmaceutical Equipment Rotary Tablet Press Machine For Dishwsher Salt Tablets
    Main Technical Parameter for ZP-17D Rotary Tablet Press Machine
    Model
    ZP-17D
    Capacity
    37700 tablets/hour
    Max.Dia of tablet
    20mm
    Max.Thickness of tablet
    15 mm
    Max. pressure
    60 KN
    Power supply
    380V 50Hz / 220V 60Hz
    Power consumption
    2.2kw
    Quantity of punching station
    17 stes
    Weight
    1000kgs
    Overall dimension
    980×780×1800mm
    Packing & Delivery

    Packaging
    Dimension
    (L*W*H)
    1100*900*2000mm
    Weight
    1200 Kg
    Packing Details
    The normal package is sea worthy wooden box. If export to european countries,the wooden box will be fumigated.If container is too tight,we will use PE film for packing or pack it according to customers special request.
