Manual Rotary Tablet Press Machine Single Punch Pill Presser With Different Moulds

Manual Rotary Tablet Press Machine Single Punch Pill Presser With Different Moulds

rotary tablet compression machine

tablet compression machine

Place of Origin:

China

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

TDP-5

Contact Us

Request A Quote
Product Details
Product Description



Manual Tablet Press Machine , Cheap Price Single Punch Press Machine





Quick Detail:



Max Filling Depth:18mm

Max Thinckness:7.5mm

Capacity: 3,000 pcs/hour

Max Diameter: Round Φ20  Irregular: Φ25mm

Motor Power:750w

Max. Pressure:60KN

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate





Description:

1. The material of the machine is made of iron, contact parts with stainless steel.

2. It is suitable for the industries of Chemical, Foodstuff, Electronic and etc.

3. It is adopts botton control

4. It is suit for aboratory and hospital fields





Applications:

The machine is suitable for the industries of Chemical, Foodstuff, Electronic and etc. It is used of pressing medicinal tablets, catalysts, sugar tablets, Calcium tablets, Coffee tablets, Powder Metallurgical, Electronic elements and various tablets of pesticide and fertilizer. etc. in such small-batch production, laboratory and hospital fields. Meanwhile, that machine also can press various abnormity and normal tablet, and press the tablets in two sides with printing as well.



Specifications:



Model TDP-5
Max. Pressure 60KN
Max. Dia. Round: Φ20 Irregular: Φ25mm
Max. Filling Depth 18mm
Max. Thickness 7.5mm
Capacity 3000pcs/hour
Motor Power 750W.1400r/min 380V 50Hz
Overall Dimension 750×380×695mm
Weight 135kg






Competitive Advantage:



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)

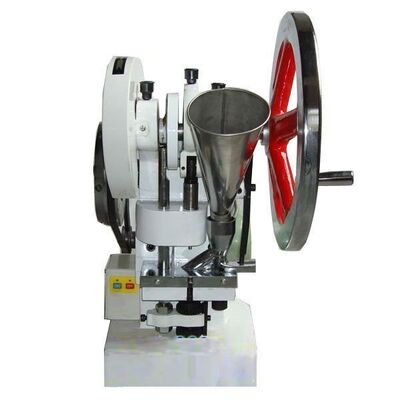

Manual Rotary Tablet Press Machine Single Punch Pill Presser With Different Moulds 0

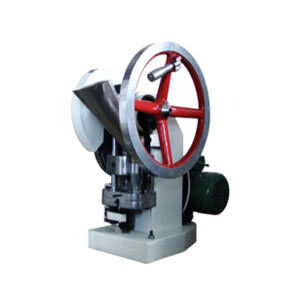

Manual Rotary Tablet Press Machine Single Punch Pill Presser With Different Moulds 1
