380V 50HZ Three Phase Mini Rotary Tablet Press Machine 10000 pcs/hour ZP-5D
|Place of Origin:||China|
|Brand Name:||LTPM China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Wooden Case|
|Delivery Time:||In 25 days after receiving the deposit|
|Payment Terms:||30% TT as deposit and 70% before shipping|
|Supply Ability:||40 sets/Month|
rotary tablet compression machine,
tablet compression machine

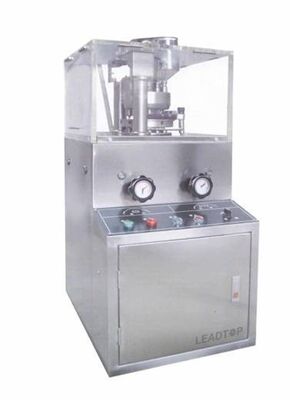

ZP-5D Mini Rotary Tablet Press Machine Used for R&D , Lab Scale
The Max Diameter Of The Tablet: 13mm
Max Thickness Of The Tablet: 6mm
Model No.: ZP-5D
Capacity: 10,000 pcs/hour
Material: Stainless steel 304
Thickness Of Die: 28mm
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate
1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.
2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
3. It is adopts the import Frequency Timing with Electromagnetism Clutch.
4. The system of Hydraulic Pressure keep the working pressure under steady, when the pressure over-loading, it will be stopped the machine automatically.
5. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
6. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust
This machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
|Maximum compression (KN)||80|
|Max. Diameter of tablet to be produced (mm)||13|
|Max. Filling depth (mm)||22|
|Max. Thickness of tablet (mm)||6|
|Diameter of the upper/lower shank (mm)||32|
|Length of the upper shank (mm)||175|
|Length of the lower shank (mm)||183|
|Diameter of the die (mm)||36|
|Thickness of the die (mm)||28|
|The diameter of the circle of the central pitch of upper &lower punches on the turret||320mm|
|Rotary speed of the turret (rpm)||10-40|
|Capacity of the tablets (max ten thousand tablets/hour)||2.5|
|Area to occupy (mm 2 )||930x950|
|Height of the machine (mm)||1550|
|motor power (kw)||2|
|Net weight of the machine (kg)||800|
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.

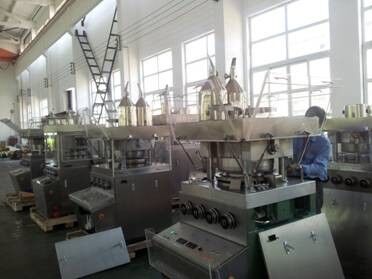

4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)
