PVC Blister Horizontal Carton Box Packaging Machine 130pcs/Min

PVC Blister Horizontal Carton Box Packaging Machine 130pcs/Min

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP, SGS, BV
Model Number: ZH-130

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: T/T, L/C, D/P
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Packaging Material: Paper Application: Food, Beverage, Chemical, Cigarettes, Tobacco
Driven Type: Electric Dimension(L*W*H): 3600*1200*1700mm( L*W*H)
Weight: 1300kg Working Pressure: ≥0.6mpa
Certification: CE, ISO Capacity: 30-130 Cartons/min
High Light:

PVC Blister Automatic Cartoning Machine

,

Carton Box Packaging Machine 130pcs/Min

,

400g/M2 Carton Box Packaging Machine

Product Description

PVC Blister Horizontal Carton Box Packaging Machine 130pcs/Min

Wholesales Automatic Horizontal Face Mask Carton Box Packing Machine

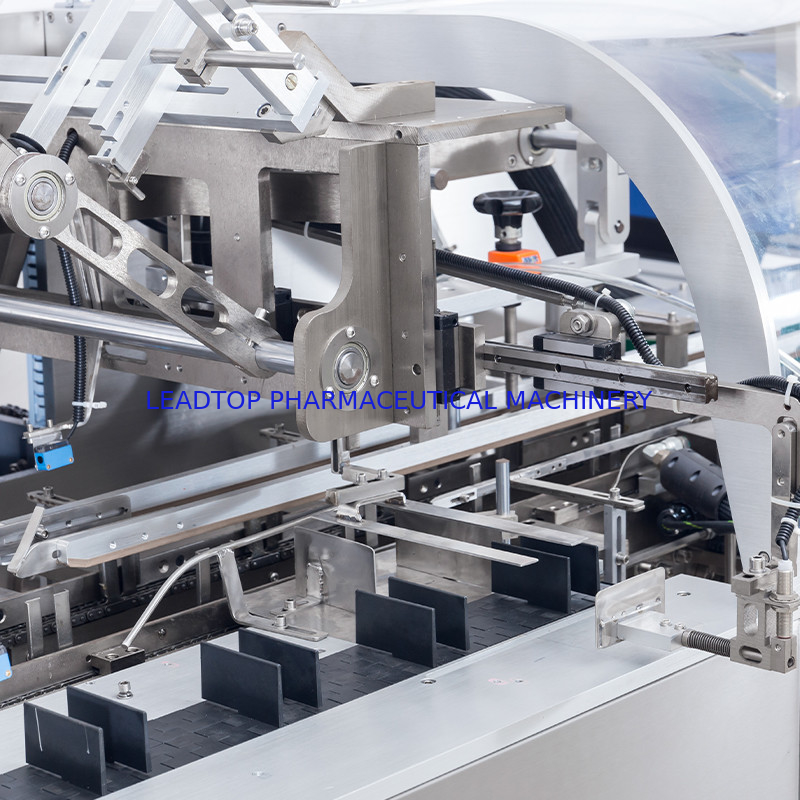

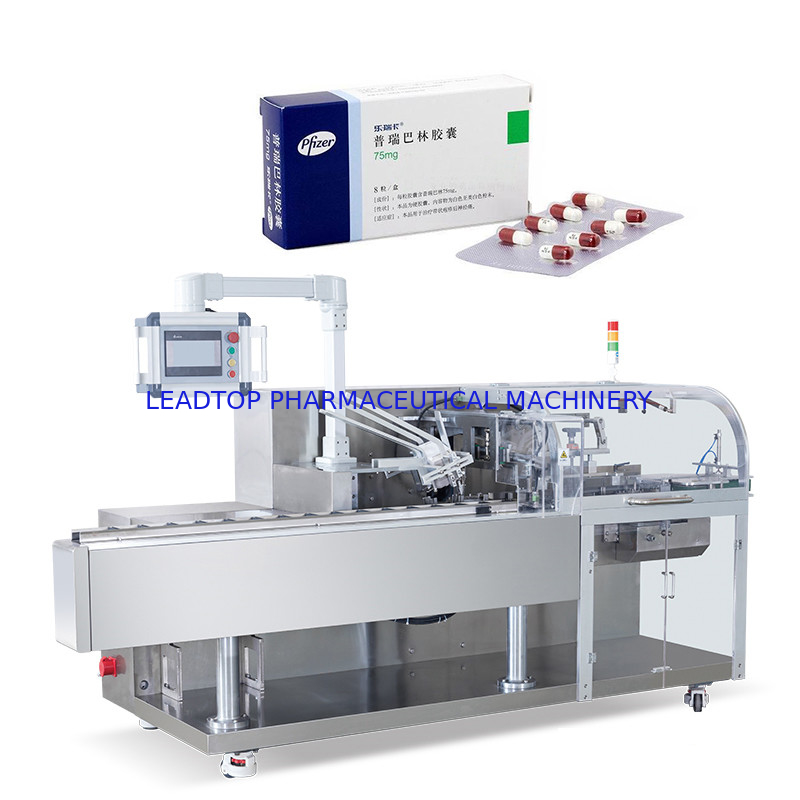

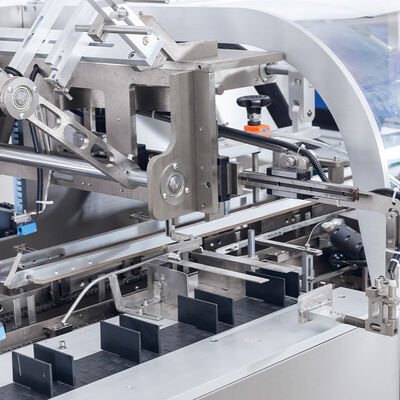

ZH Series Boxing Packing Machine is automatic high speed continuous cartoning machine which is high performance product incorporates pneumatic, photo, electric, mechanic in one. It suitable for automatic inserting ALU-PVC blister, bottle, soft tube, soft AL/AL strips and pouch into carton, also can link to matching machine to form production line.



Technical Parameters

Description Automatic cartoning machine
Model ZH-Series Cartoning machine
Speed 50-80 boxes/min
Carton specification Paper material 250-400g/m2 ( need flat surface)
Box size L*W*H(100-240)*(15-150)*(25-85)mm
Power supply 220V/380V,50HZ. Main motor 1.5kw
Dimension 3600*1200*1700mm( L*W*H)
Weight 1300kg
Air supply ≥0.6Mpa
Air consumption 20m3/H
Glue machine China Jingtai(optional )



Maintenance and inspection

1. Maintenance and clean for machine every day or every shift.
(1) Clean the machine each time after packaging.
(2) Turn off the power before cleaning the machine to low the temperature of heating part.
(3) Never spray the water or steam directly on the machine when cleaning.
(4) Main components to be cleaned:
* Remove the product chips store up in the conveyance line of the product by compressed air or in other way.
* Brush off the film chips adhered to the sealing surface by the wire brush applied with the silicone oil.
* Clear the dirt on the control panel, safety cover and operating surface by a piece of soft cloth.
* Conductive ring of the mid sealing tool and end sealers: clean it once a week or two weeks. Clean the conductive ring by the back
of the sandpaper with the master power off.

2. Maintenance and clean for machine every month.
(1) Apply the lubricating grease on the bearing of the end sealers.
(2) Apply the lubricating grease on the gear and chain (pulley) of the driving unit.
(3) Check the tightness of the chain and belt of the driving unit, and tighten the loosed one.
(4)Check the tightness of the fastening screw or nut of all parts, and tighten the loosed one.

3. Relevant inspection for machine once a half year.
(6) Check the wear intensity of the belt of the driving unit, and replace the worn-out one.
(7) Check the wear intensity of the rubber roller, and replace the one affecting the film advancing effect.
(8) Properly adjust the brake unit of the film-carrying roller.
(9) Check all wearing parts, and immediately replace the damaged one.
Check the fastness of the wiring on the electrical terminal plate, and tighten the loosed one. Check the inverter, programmable
controller and circuit board, and remove the dust or dirt on them by the compressed air.
