Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP, SGS, BV
Model Number: ZH-130

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: T/T, L/C, D/P
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Packaging Material: Paper Application: Food, Beverage, Chemical, Cigarettes, Tobacco
Driven Type: Electric Dimension(L*W*H): 3600*1200*1700mm( L*W*H)
Weight: 1300kg Working Pressure: ≥0.6mpa
Certification: CE, ISO Capacity: 30-130 Cartons/min
High Light:

SUS304 Food Beverage Cartoning Machine

,

130pcs/Min Carton Packing Machine

,

Integrated Food Beverage Cartoning Machine

Product Description



ZH Series Boxing Packing Machine is automatic high speed continuous cartoning machine which is high performance product incorporates pneumatic, photo, electric, mechanic in one. It suitable for automatic inserting ALU-PVC blister, bottle, soft tube, soft AL/AL strips and pouch into carton, also can link to matching machine to form production line.



Technical Parameters

Description Automatic cartoning machine
Model ZH-Series Cartoning machine
Speed 50-80 boxes/min
Carton specification Paper material 250-400g/m2 ( need flat surface)
Box size L*W*H(100-240)*(15-150)*(25-85)mm
Power supply 220V/380V,50HZ. Main motor 1.5kw
Dimension 3600*1200*1700mm( L*W*H)
Weight 1300kg
Air supply ≥0.6Mpa
Air consumption 20m3/H
Glue machine China Jingtai(optional )

Features

1, Adopt PLC automatic control system, frequency conversion. The electrical components adopt international famous brands.
2, Photoelectric system monitors all parts moving. If there is malfunction during the running, the wrong place will be shown and the machine can stop automatically.
3, Reject automatically the box which is lack of stuff or specification.
4, If the stuff or specification lack, the paper box will stop feeding.
5, Performance is stable. The operation is easy and convenience.
6, The machine can feed and box continually, the machine can instead of 15-20 the workload of workers.



Equipment Advantages
1, Integrated with box opening, box loading, box folding, and box sealing, compact and reasonable design, simple operation, and easy maintenance.
2, Can be added before and after the equipment, automatic feeding, automatic under the tray, instructions, print the word code flow number, pick waste, and other functions.
3, It can be quickly adjusted by dial scale within the same equipment to achieve multi-specification use.
4, SUS304 stainless steel is used for the contact part with products.
5, High degree of automation: PLC programmable control system, the human-machine interface shows the speed of carton loading, quantity, automatic alarm for lack of carton, no product not to open the carton, failure reason and other parameters.
6, The transmission and friction parts are strictly following the standard implementation, less wear and tear in the later stage, reducing the replacement of accessories.

SUS304 Food Beverage Cartoning Machine 130pcs/Min Carton Packing Machine 0

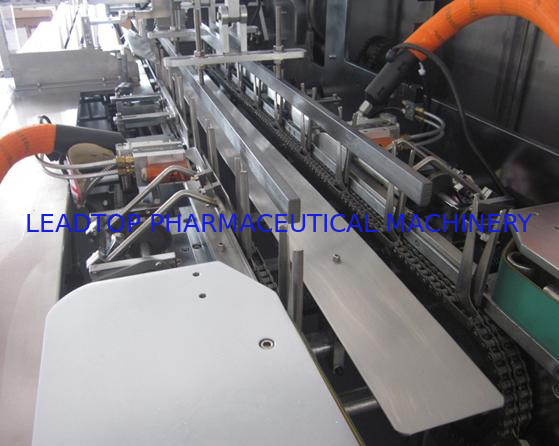

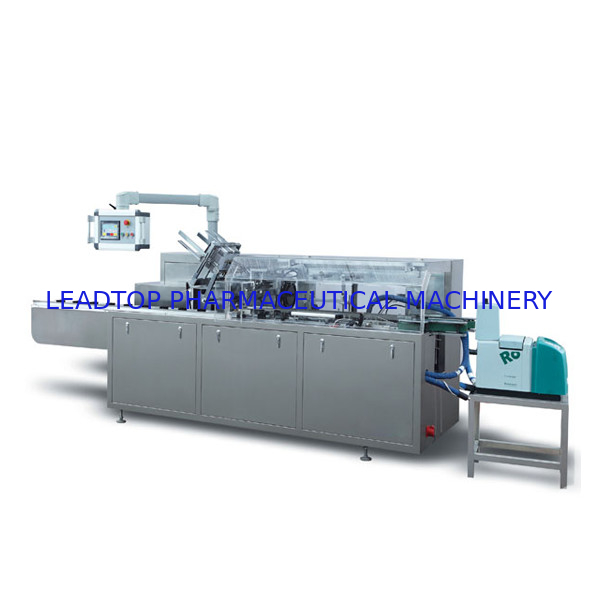

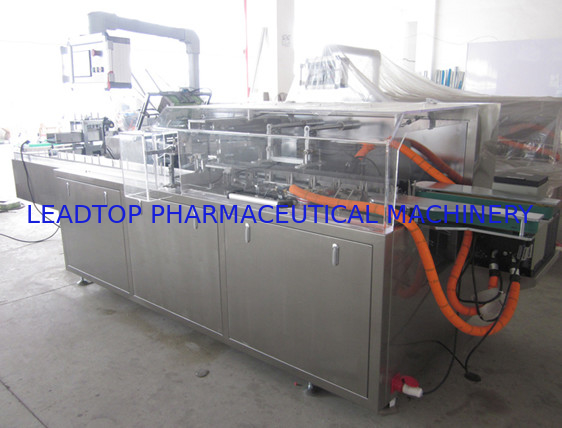

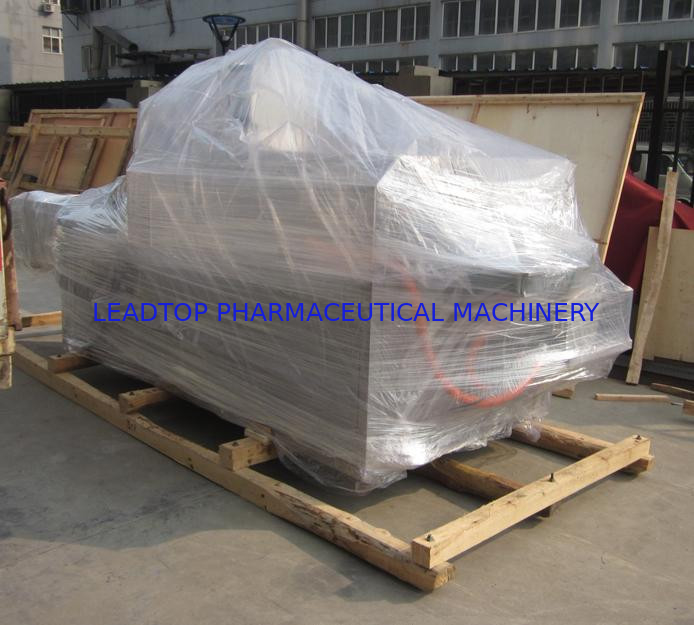

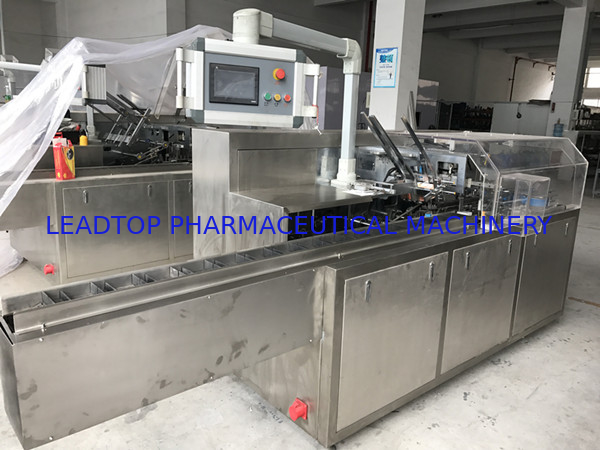

Machine Details

SUS304 Food Beverage Cartoning Machine 130pcs/Min Carton Packing Machine 1SUS304 Food Beverage Cartoning Machine 130pcs/Min Carton Packing Machine 2SUS304 Food Beverage Cartoning Machine 130pcs/Min Carton Packing Machine 3SUS304 Food Beverage Cartoning Machine 130pcs/Min Carton Packing Machine 4





Product Application
Mainly applicable to: automatic boxing of medical masks, food, medical supplies, toys, stationery, auto parts, cosmetics,hardware, daily necessities, and other small products

SUS304 Food Beverage Cartoning Machine 130pcs/Min Carton Packing Machine 5
