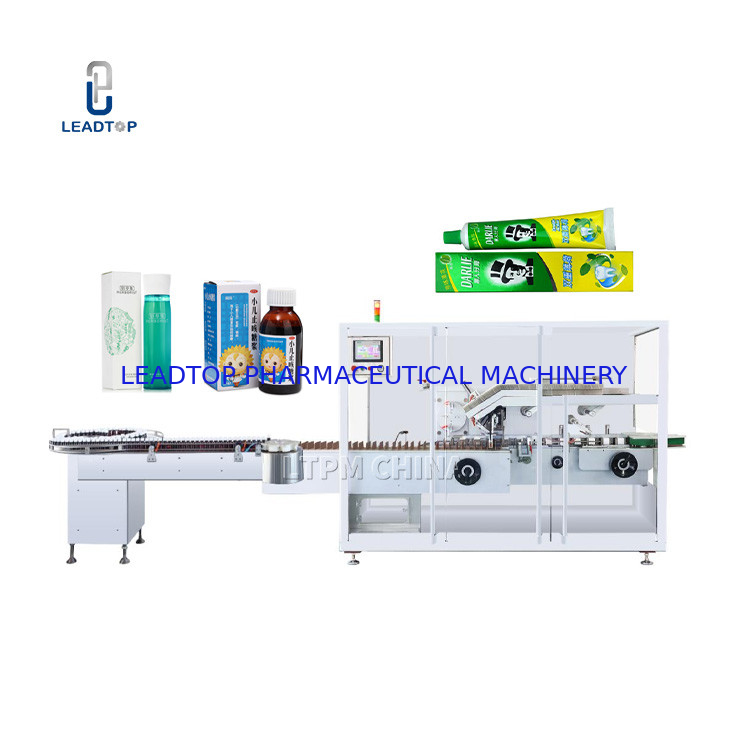

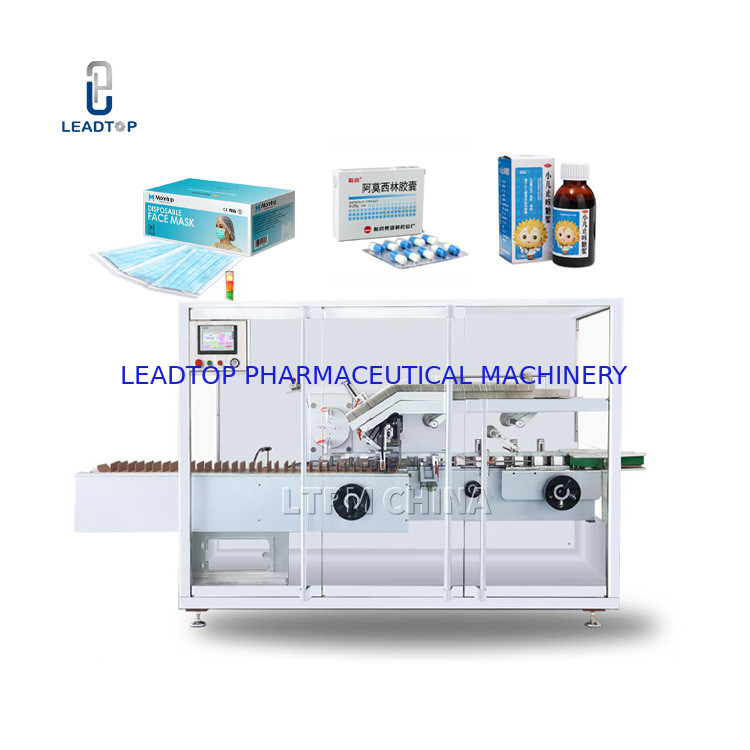

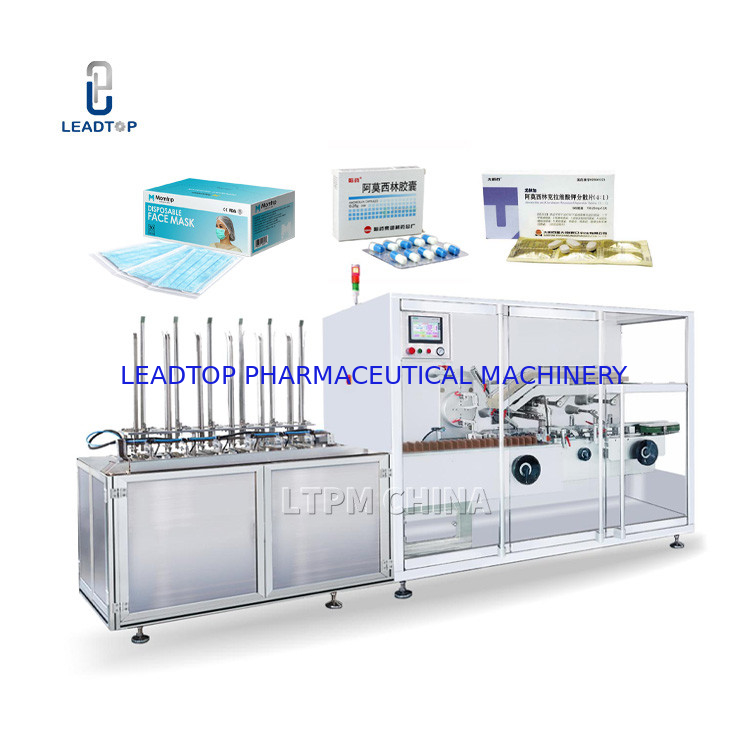

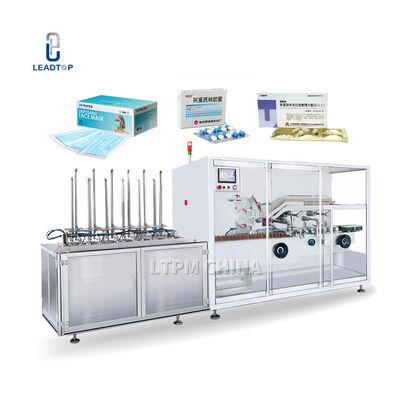

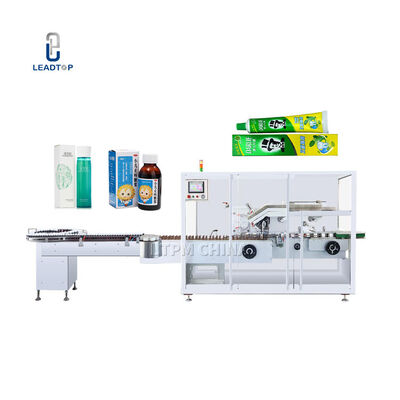

130pcs/Min Horizontal Type Automatic Cartoning Machine For Medicine Board

130pcs/Min Horizontal Type Automatic Cartoning Machine For Medicine Board

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP, SGS, BV
Model Number: ZH-130

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: T/T, L/C, D/P
Supply Ability: 25 sets/Month
Get Best Price Contact Now

Detail Information

Packaging Material: Paper Application: Food, Beverage, Chemical, Cigarettes, Tobacco
Driven Type: Electric Dimension(L*W*H): 4500*1210*1770mm
Weight: 2500 KG Working Pressure: ≥0.6mpa
Certification: CE, ISO Capacity: 30-130 Cartons/min
High Light:

130pcs/Min Horizontal Automatic Cartoning Machine

,

Medicine Board Automatic Cartoning Machine

,

1.5kw Automatic Cartoning Machine

Product Description

This LTPM CHINA ZH-Series Automatic Cartoning Machine is suitable for automatic filling and packing of products such as granular bags, soft double aluminum, plaster, band aid, facial mask, coffee bag, bottle, aluminum plastic plate and so on.





The whole process of on-line material detection, manual folding (1 to 4 times folding) and conveying, carton drawing forming and conveying, material feeding, embossing batch number, paper tongue packaging at both ends of carton (also applicable to hot melt adhesive)



Technical Parameters



Model
ZH-130
ZH-130D
ZH-130P
ZH-350C
Speed
30-130/min
30-80/min
30-130/min
30-130/min
Carton Dimension
(65-240)*(30-180)*(15-75)mm
(75-220)*(50-160)*(15-70)mm
(65-240)*(30-120)*(15-70)mm
/
Instruction Book:




Unfolded instruction leaflet specification
(90-250)*(90-170)mm
(90-250)*(90-170)mm
(90-250)*(90-170)mm
/
Fold range
[1-4](Fold)
[1-4](Fold)
[1-4](Fold)
/
Working pressure
≥0.6mpa
≥0.6mpa
≥0.6mpa
≥0.6mpa
Air consumption
120-160L/min
200-240L/min
120-160L/min
/
Power supply
380V50HZ
380V50HZ
380V50HZ
220V50/60Hz
Motor power
1.5kw
1.5kw
1.5kw
3.2Kw
Dimension(mm)
3250*1210*1770
4800*1210*1770
4500*1210*1770
4200*960*1520mm
Weight
2000kg
2400kg
2500kg
1200Kg



130pcs/Min Horizontal Type Automatic Cartoning Machine For Medicine Board 0



Features

130pcs/Min Horizontal Type Automatic Cartoning Machine For Medicine Board 1



01-
1.PLC automatic control system, frequency conversion and remonstration electrical components are all internationally renowned
brands ;
2.The touch interface makes parameter setting convenient and quick.

130pcs/Min Horizontal Type Automatic Cartoning Machine For Medicine Board 2
02-
It can automatically display, alarm and automatically remove the lack of material and paper jam in the carton, so as to ensure
100% qualified output of finished products at the outlet.
130pcs/Min Horizontal Type Automatic Cartoning Machine For Medicine Board 3
03-
Large carton storage capacity, reducing labor burden.

130pcs/Min Horizontal Type Automatic Cartoning Machine For Medicine Board 4
04-
1.Servo control system, more accurate speed adjustment;
2.The wires are neat and beautiful, and the maintenance is more convenient

130pcs/Min Horizontal Type Automatic Cartoning Machine For Medicine Board 5
05-
All parts in contact with material are made of stainless steel and non-toxic materials, which meet the requirements of "GMP".



130pcs/Min Horizontal Type Automatic Cartoning Machine For Medicine Board 6

06-
1.Structure surface is aluminum sandblasting and oxidizing ;
2.Pull and push protection door, higher safty .
