Place of Origin:
China
Brand Name:
LTPM CHINA
Certification:
CE
Model Number:
ZH-120
Contact Us

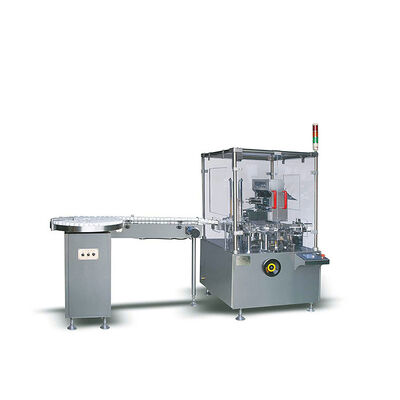

Fully Automatic Vertical Night Cream Ice Tube Encasing Box Packing Machine
This machine is high technology product incorporates of pneumatic-photo-electro-mechanic. It is suitable for inserting flow pack product ,ointment ,glass bottle, cosmetic and soft package(packed condoms) into carton in a range. The machine finishes running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes (1-4) folds leaflet automatic folding, canton suction and open, products and leaflet put into, printing batch number, sealing carton with tuck-in or hot melt glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three –Dimensional Packaging Machine, etc to form a production chain.
Some of product samples can be packaging by this machine
Main Features
The cartoning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum
No suction carton by missing product
Product will be manually loaded on conveyer by manual, then other things finished automatically.
Automatically displaying device for trouble, speed and finished products counting
Machine running without pressing if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return
Adopt human-machine operation system.
International famous brand of electric components such for PLC touch screen, frequency inverters, etc
Stable performance, operation is easy Controls
Product Parameters:
| Encasing speed | 30-120 boxes/min | |
| Box | Quality requirement | 250-350g/m2 |
| Dimension range (L*W*H) | (65-125)mm*(30-85)mm*(12-50)mm | |
| Quality requirement | 60-70g/m2 | |
| Leaflet | Unfolded leaflet specification (L*W) | (80-250)mm*(90-170)mm |
| Fold range | (1-4) fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power | 220V/380V | |
| Motor power | 0.75kw | |
| Machine dimension(L*W*H) | 2150mm*1140mm*1800mm | |
| Machine weight | 1100kg | |

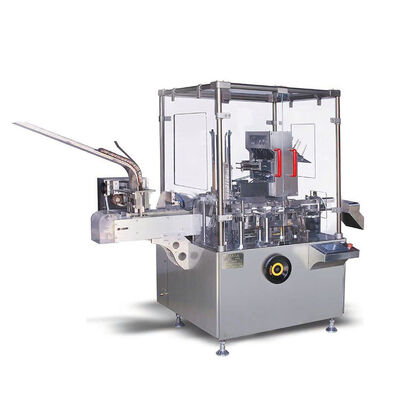

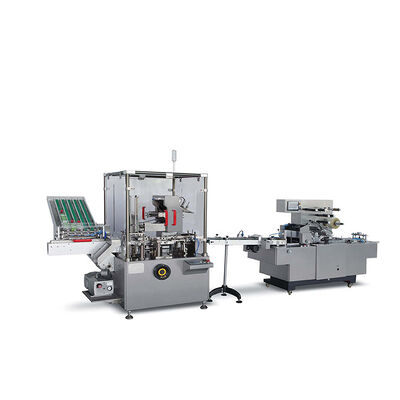

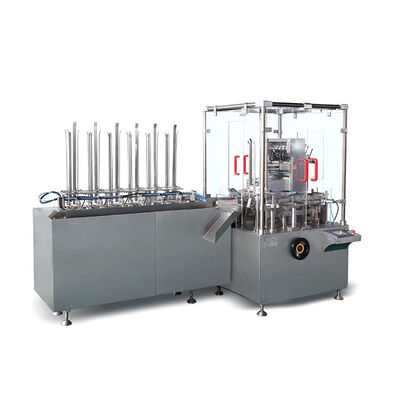

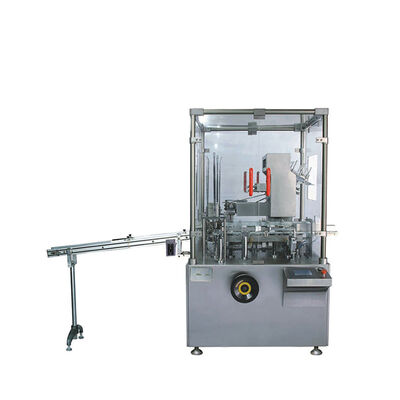

Detailed Images
Our Service
1, Five-YEAR warranty period for whole machine except of tubes and human factors etc, 18 months from the date when you received machine or 12 months when installation finished;
2, Consultant services for whole machine life, 24 hours technical support by email;
3, UPS-friendly English Soft-ware, user manual and send expericed technicians for installaton&debugging.
