Pipette Tip Vertical Bottle Cartoning Machine For Cosmetics

Pipette Tip Vertical Bottle Cartoning Machine For Cosmetics

Vertical Bottle Cartoning Machine

Pipette Tip Bottle Cartoning Machine

Cosmetics Bottle Cartoning Machine

Place of Origin:

China

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

ZH-120

Contact Us

Request A Quote
Product Details
Encasing Speed:
30-120 Boxes/min
Carton Gram Requirements:
250-350g/m3
Power:
220V / 380V
Motor Power:
≤80dB
Air Pressure:
0.75kw
Machine Dimension(L*W*H):
2150mm*1140mm*1800mm
Product Description

Leading Production High Speed Automatic 10 Microliter Pipette Tip Vertical Bottle Cartoning Machine



This equipment is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.


All of our machine can be Customized according to your request



The boxing machine can finish automatically folding leaflet, opening box, pushing product into box, printing batch number, and sealing etc. It is applicable for packing various solid regular objects like bags, eye-drop, medicine board, cosmetics, and cookies etc.

This machine is suitable for condom, pouch, soft al/al strips, wound plaster, ointment plaster, facial mask plaster, coffee bag into carton. On line product feeding and detecting, leaflet fold (1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.





Feature:(paper instruction inserting as a optional)
1. Different sizes of cartons can share one machine by adjusting, easy operation.
2. The leaflet can be 1-4 folders.
3. With detection and rejection function if no product or cartons.
4. Printing batch numbers synchronously, can print 2-4 lines
5. Shows malfunction, alarms and stops automatically, and shows how to operate and maintain it.
6. Shows speed and counts automatically.
7. Can be connected to other machines to form automatic packing line


Some of product samples can be packaging by this machine





Product Parameters:



Encasing speed 30-120 boxes/min
Box Quality requirement 250-350g/m2
Dimension range (L*W*H) (65-125)mm*(30-85)mm*(12-50)mm
Quality requirement 60-70g/m2
Leaflet Unfolded leaflet specification (L*W) (80-250)mm*(90-170)mm
Fold range (1-4) fold
Compressed air Working pressure ≥0.6mpa
Air consumption 120-160L/min
Power 220V/380V
Motor power 0.75kw
Machine dimension(L*W*H) 2150mm*1140mm*1800mm
Machine weight 1100kg





Product Application
It is widely used for different packing including drug, food, commodity and cosmetic. For drug industry such as: cover box for solid torch and capsule, soft box for liquid paste, grease and colloid, tray box for vial, ampule bottle, and injector, as well as bottle box for solid and liquid drug and bag bx for powder and grain products. For food field such as: carton for cans, sweet, chocolate, candy, biscuit, wine, and freezing food, and so on. For commodity and cosmetic industry such as: carton for cream, grease, lotion, colloid, soap, lamp, computer floppy disk.

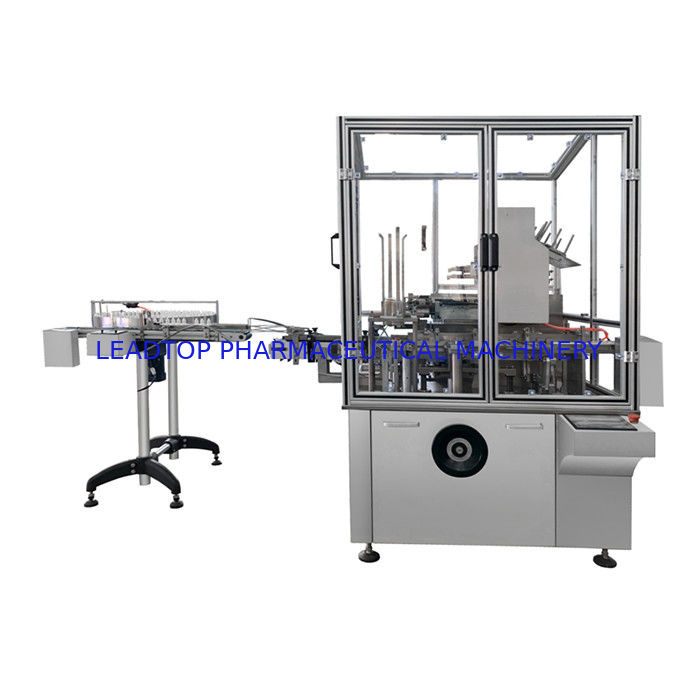

Pipette Tip Vertical Bottle Cartoning Machine For Cosmetics 0

Packing
Pipette Tip Vertical Bottle Cartoning Machine For Cosmetics 1
