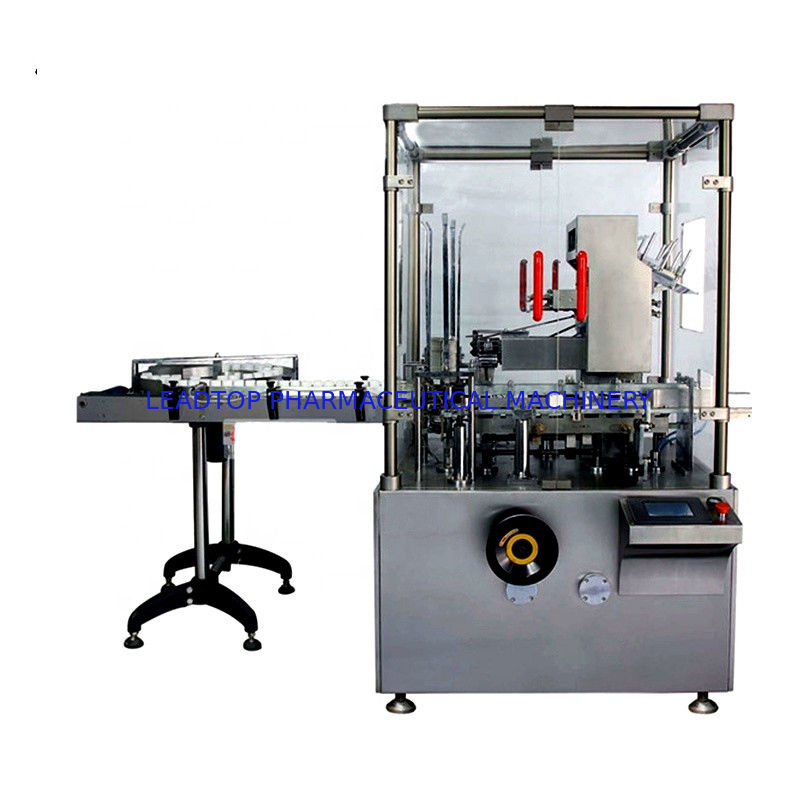

Vertical Automatic Cartoning Machine For Condom 120 Boxes/Min

Vertical Automatic Cartoning Machine For Condom 120 Boxes/Min

Brand Name:	LTPM CHINA
Model Number:	ZH-120
MOQ:	1 set
Price:	Negociation
Payment Terms:	30% TT as deposit and 70% before shipping
Supply Ability:	25 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Encasing Speed:

30-120 Boxes/min

Carton Gram Requirements:

250-350g/m3

Power:

220V / 380V

Motor Power:

≤80dB

Air Pressure:

0.75kw

Machine Dimension(L*W*H):

2150mm*1140mm*1800mm

Packaging Details:

Wooden Case

Supply Ability:

25 sets

Highlight:

Vertical Automatic Cartoning Machine

Condom Automatic Cartoning Machine

120 Boxes/Min Automatic Cartoning Machine

Product Description

Industry production Automatic Vertical Cartoning Machine For Condom and pharmaceutical equipment with china market best

This equipment is new model developping base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

This machine is suitable for condom, pouch, soft al/al strips, wound plaster, ointment plaster, facial mask plaster, coffee bag into carton. On line product feeding and detecting, leaflet fold (1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.

2. Features:

All the materials are madeof stainless steel and nickel-chromium platedmaterial stable chemicalperformance, corrosionresistance, non-toxicityand harmlessness. Thewelding position istempered and durable.
When the main motoroverload or foldingmachine failure, startprotection function toensure the safety of equipment and personnel.
Machine equipped multiple detection points,intelligence is highly,theloading accuracy is 100%
Lift the head to separatethe pull-down action,making it easier toseparate the paper
Easy to operate andmaintain equipment

Product Parameters:

Encasing speed		30-120 boxes/min
Box	Quality requirement	250-350g/m2
	Dimension range (LWH)	(65-125)mm(30-85)mm(12-50)mm
	Quality requirement	60-70g/m2
Leaflet	Unfolded leaflet specification (L*W)	(80-250)mm*(90-170)mm
Leaflet	Fold range	(1-4) fold
Compressed air	Working pressure	≥0.6mpa
Compressed air	Air consumption	120-160L/min
Power		220V/380V
Motor power		0.75kw
Machine dimension(LWH)		2150mm1140mm1800mm
Machine weight		1100kg

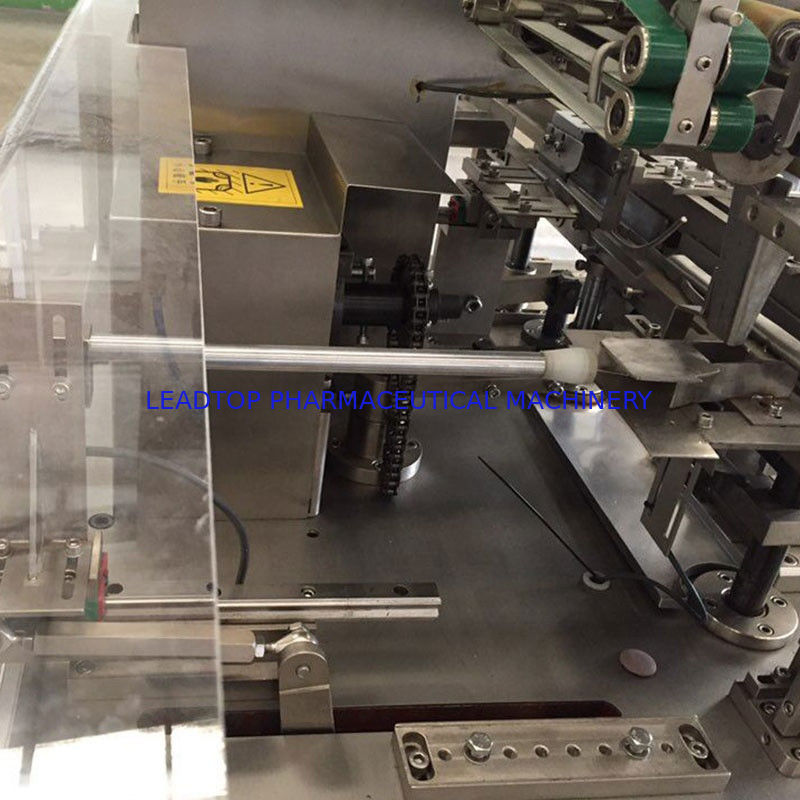

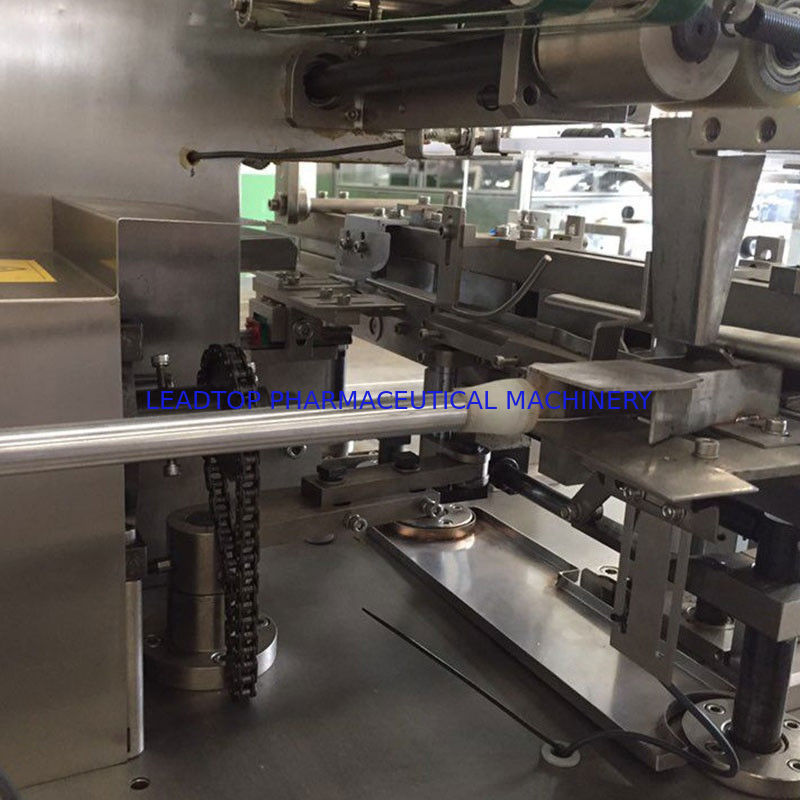

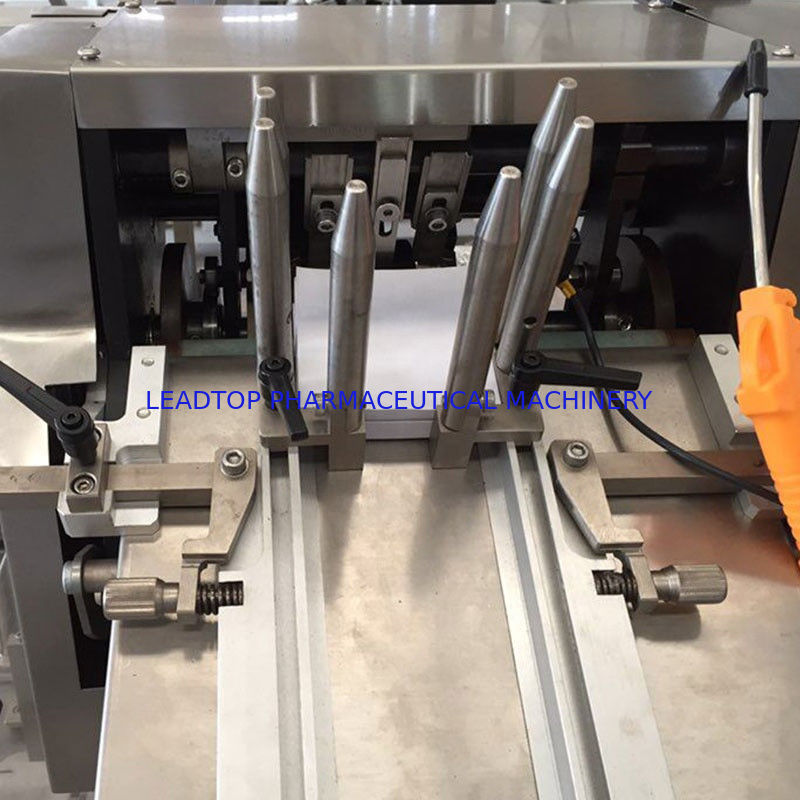

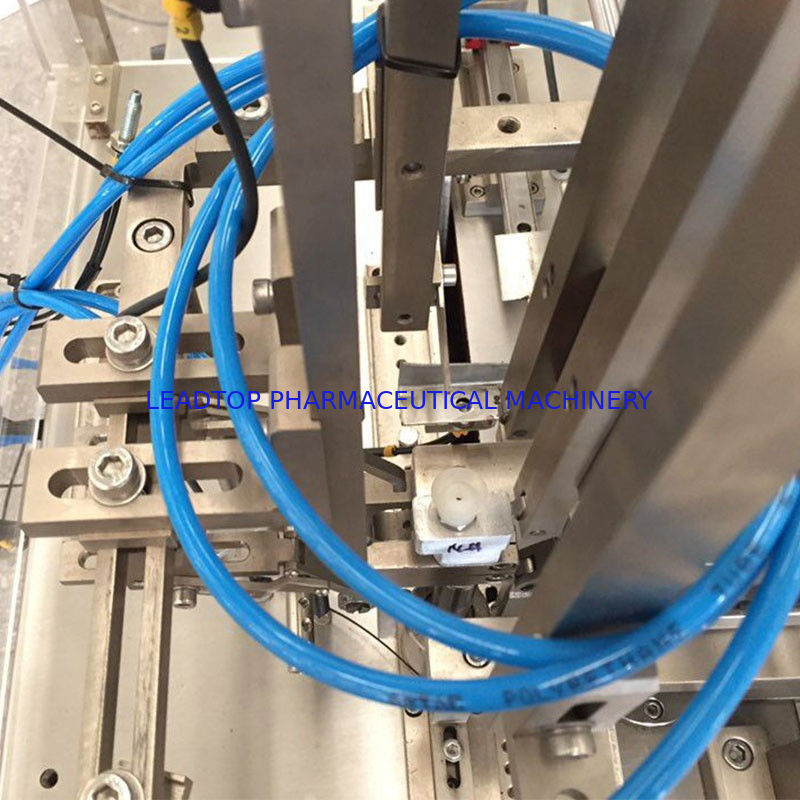

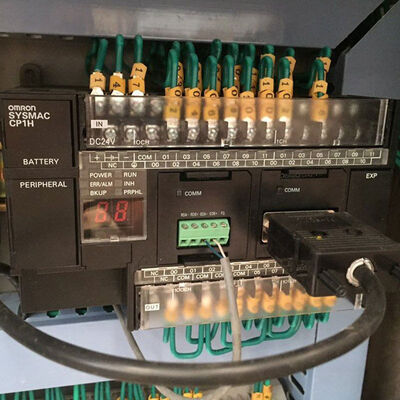

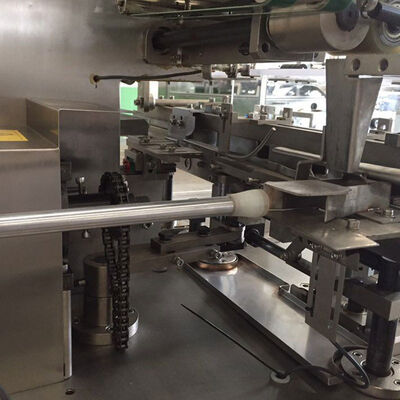

Machine Details

Product Application
It is widely used for different packing including drug, food, commodity and cosmetic. For drug industry such as: cover box for solid torch and capsule, soft box for liquid paste, grease and colloid, tray box for vial, ampule bottle, and injector, as well as bottle box for solid and liquid drug and bag bx for powder and grain products. For food field such as: carton for cans, sweet, chocolate, candy, biscuit, wine, and freezing food, and so on. For commodity and cosmetic industry such as: carton for cream, grease, lotion, colloid, soap, lamp, computer floppy disk.
