Place of Origin:
China
Brand Name:
LTPM CHINA
Certification:
CE
Model Number:
ZH-120
Contact Us

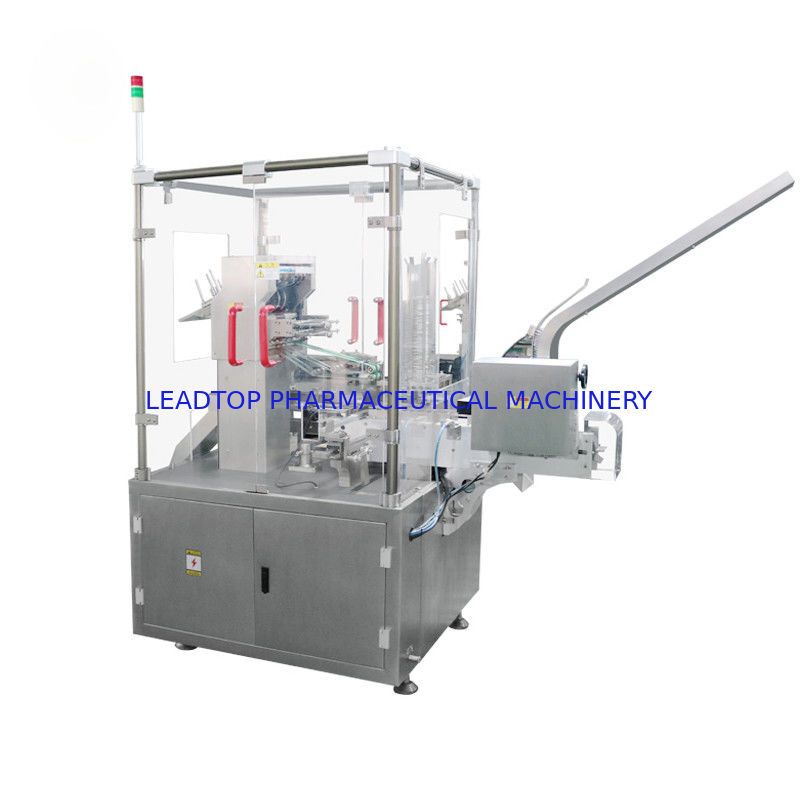

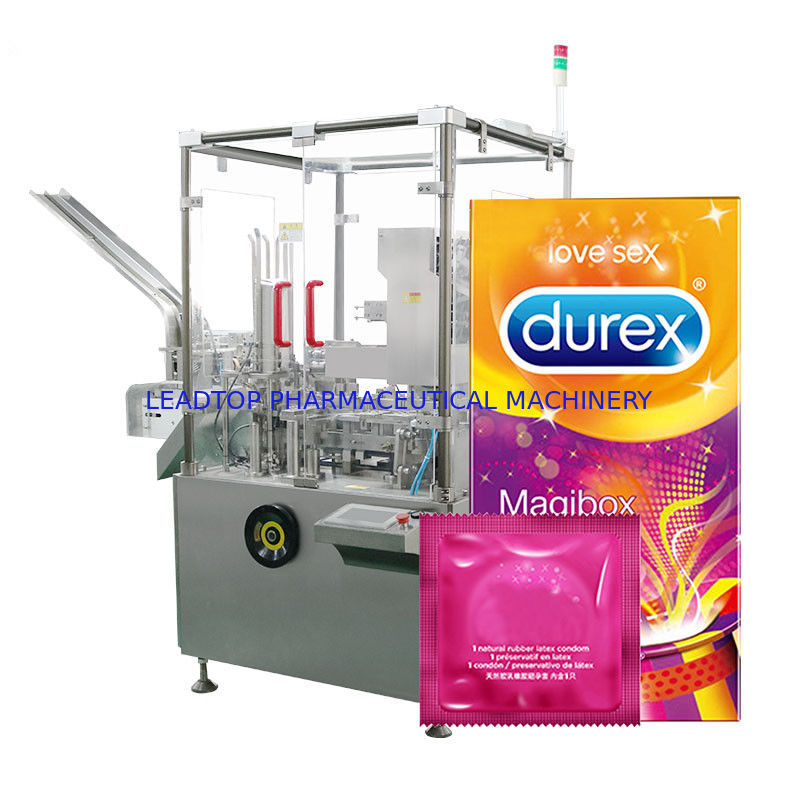

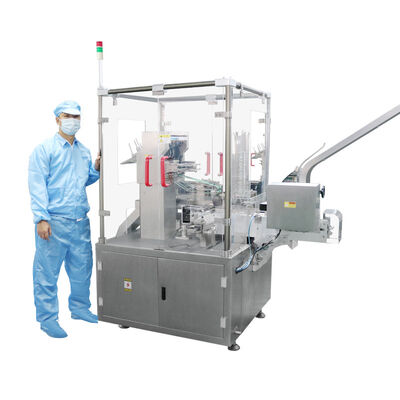

Condom Bag Sachet Cartoning Machine Vertical Cartoning Machine 125carton/Min
Automatic vertical cartoning packing machine can packed various products such as aluminum plastic plate and aluminum aluminum plate, electronic cigarette,facial cleanser,ointment,Sealed pouch various bottled products.120L vertical cartoning packing machine can be connected with the blister packing machine,three dimensional transparent film wrapping machine and strapping machine to form a production line.The automatic cartoning packing machine has strong compatibility and can pack products of various specifications on one machine.High degree of automation,from feeding,suction carton,forming,on line transmission,folding of leaflet(1-4 folds),material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed.
2. Features:
1: International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2: Adopt human-machine operation system.
3: Automatically stop when machine is overload.
4: Automatically reject lacking of package product and leaflet.
5: Automatically display trouble, Alarm and count finished products.
6: Stable performance,operation is easy.
Product Parameters:
| Encasing speed | 30-120 boxes/min | |
| Box | Quality requirement | 250-350g/m2 |
| Dimension range (L*W*H) | (65-125)mm*(30-85)mm*(12-50)mm | |
| Quality requirement | 60-70g/m2 | |
| Leaflet | Unfolded leaflet specification (L*W) | (80-250)mm*(90-170)mm |
| Fold range | (1-4) fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power | 220V/380V | |
| Motor power | 0.75kw | |
| Machine dimension(L*W*H) | 2150mm*1140mm*1800mm | |
| Machine weight | 1100kg | |
