Place of Origin:
China
Brand Name:
LEADTOP
Certification:
ISO
Model Number:
LTQF
Contact Us
Quote Subject: Wet wipes production line (40-120pcs/pack)
| Item | Description of the goods | Quantity | Price | Total Amount |
| 1 | LTQF-2800 High speed wet wipes folding machine | 1 Set | $60,000 | $180,000 |
| 2 | LTQP-360 Full-auto wet wipes packing machine (auto-splicing packing film) | 1 Set | $65,000 | |
| 3 | LTQL-5800B Full-auto Lid Applicator (SCARA) | 1 Set | $55,000 |

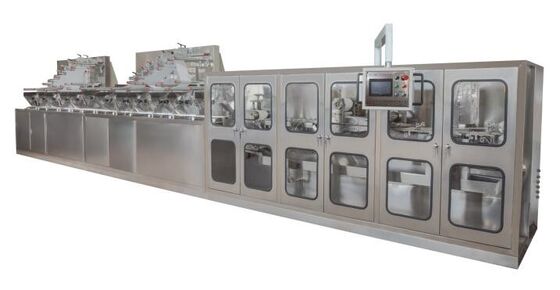

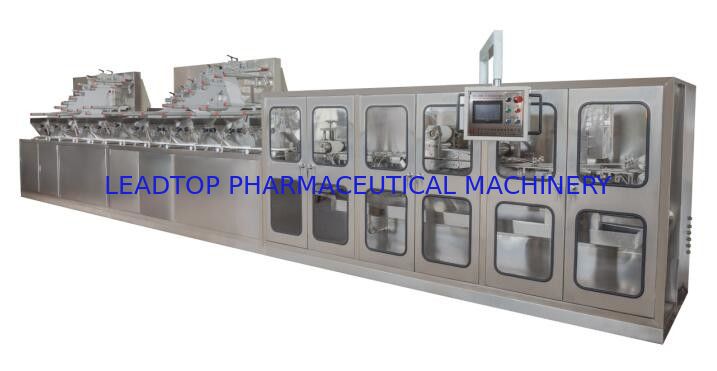

LTQF-2800 High SPEED WET WIPES FOLDING MACHINE
l Production flow: unrolling - slitting fabric into lanes - folding - wetting - cutting - pile&counting - delivering
l Main technical parameter
n Product type: wet wipes
n Product speed: 250-380 cuts/min (3000-4500 pcs/min )
n Suitable raw material: air laid paper, spunlace/hot-rolling nonwoven fabric
n Weight of raw material : 40-80g/㎡
n Folding way : “Z” shape (pop up and non-pop up)
n Cutting unite:. a.double paper shelves
l B.10 lanes or 12 lanes,2 rolls
l c. raw material roll width :900~1000mm
u Length of wet tissue:140-220mm (setting via touchscreen)
n Size of raw material: (1000-1250)×Ø1000 (mm,W×Dia)
n Wet tissue unfolded size: (140-220)×(150-250) (mm,L×W)
n Wet tissue folded size: (140-220)×(90-110) (mm,L×W)
n Material supply system: Servo motor
n Cutting system: Converter motor
n Piling system: Servo Motor
n Power supply: 380V 50HZ
n Power: 10KW
n Size of machine: 10200×3300×2000(mm,L×W×H)
n Weight of machine:5000 kg
n Water Tank:400L 2pcs
MACHINE IN DETAILS
ELECTRIC CONFIGURATION
| NO | Discription | Specification | Qty | Remarks |
| 1 | PLC | FX3GA-60MT | 1 | Mitsubishi(Japan) |
| 2 | Servo motor(control the distance of tissue | MR-JE-300A | 1 | Mitsubishi(Japan) |
| 3 | Servo motor(receiving tissue) | MR-JE-70A | 1 | Mitsubishi(Japan) |
| 4 | Turbine Worm Reducer Motor | WPDA120-1:10-Y100L2-4 | 1 | 3KW Nanjing Utton(China) |
| 5 | Inverter | 4KW | 1 | ARTRICH |
| 6 | Touch Screen | 7inch | 1 | Wecon |
| 7 | Air switch | 7 | SHANGHAI RENMIN | |
| 8 | Switching power supply | S-200-24 | 1 | Shanghai Mingwei |
| 9 | Indicator light | 1 | SHANGHAI RENMIN | |
| 10 | Emergency stop switch | 3 | SHANGHAI RENMIN | |
| 11 | Potentiometer | 5KΩ | 1 | |
| 12 | Rotary encoder | Incremental pole output | 1 | Koyo(Japan) |
| 13 | Relay | Omron | 4 | Omron(Japan) |
| 14 | Proximity switch | Autonics | 6 | Autonics (Korea) |
| 15 | Timing relay | CKHKC | 6 | China |
| 16 | Contactor | 3 | SHANGHAI RENMIN | |
| 17 | Servo electronic transformer | 4.5KW | 1 | China |
| LTQF-2800 Spare parts list | |||
| No. | Item | specification | Qty |
| 1 | Slitting blade(up) | 150×35×8 | 5 pcs |
| 2 | Slitting blade(down) | 150×30×10 | 3 pcs |
| 3 | Round Belt | φ5 | 2 pcs |
| 4 | Taper roller belt | 850×30×3 | 2 pcs |
| 5 | Cutting blade(up) | 8*29*150 | 2 pcs |
| 6 | Cutting blade(down) | 10*15*150 | 2 pcs |
| 7 | Clasp | 6 pcs | |
| 8 | Conveyor blet | 2220*18 | 2pcs |
| 9 | Conveyor blet | 2150(2140*18) | 2pcs |
| 10 | Tool box | 1 set | |

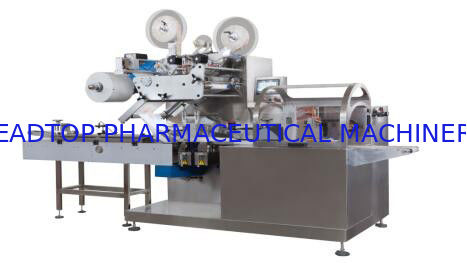

LTQP-360 Full-auto wet wipes Packing Machine(auto-splicing packing film)
Production type: baby wet tissue
Tip: equipped with 8 units of servo motors from Yaskawa brand
Production process : connect to folding machine → feeding wipe automatic →conveying to packing machine → setting packing film → setting window hole label → Central sealing →End sealing and reciprocating cut → Output finished products.
MainTechnical parameter:(Suitable to pack :40-120pcs/bag)
MACHINER IN DETAIL AFS:
FINISHED PRODUCT SAMPLE:
LTQP-360 Main electric configuration list
(YASKAWA(Japan) ELECTRICALLY (8 units servo motors form Yaskawa)
| NO | Item description | Specification | Qty(Pcs) | Remark |
| 1 | Motion controller | JEPMC-MP2300S-E | 1 | YASKAWA(JAPAN) |
| 2 | Extended module | R7K4FML-6-DCA32A | 1 | YASKAWA(JAPAN) |
| 3 | Servo motor/servo unit | SGMJV-08ADE6S /SGDV-5R5A11A | 5 | YASKAWA(JAPAN) 750w |
| 4 | Servo motor/servo unit | SGMGV-13ADC61 /SGDV-120A11A | 1 | YASKAWA(JAPAN)1.3kw |
| 5 | Servo motor/servo unit | SGMGV-20ADA61/SGDV-180A11A | 1 | YASKAWA(JAPAN) 1.8kw |
| 6 | Servo motor/servo unit | SGMGV-09ADC61/SGDV-7R6A11A | 1 | YASKAWA(JAPAN)0.85 kw |
| 7 | Power cable + encoder cable | JZZP-CVM09/JZSP-CVP02-05 | 1 | YASKAWA(JAPAN)850w |
| 8 | Power cable + encoder cable | JZSP-CMM00-05 JZSP-CMP00-05 | 7 | YASKAWA(JAPAN) 750w |
| 9 | Power cable + encoder cable | JZSP-CVM30-05 JZSP-CVP02-5 | 2 | YASKAWA(JAPAN)1.3kw YASKAWA(JAPAN)1.8kw |
| 10 | Communication cable | JEPMC-W6002-05 | 12 | |
| 11 | Terminal resistance | JEPMC-W6022-E | 2 | |
| 12 | Touch panel | Weinview | 1 | 7 inch |
| 13 | Air break switch | LG | 12 | |
| 14 | Residual current circuit breaker | CHINT | 1 | |
| 15 | Contactor (switch) | SCHNEIDER | 1 | |
| 16 | Power switch | M&W | 1 | 350w |
| 17 | Solod state Relay(SSR) | ANV | 6 | |
| 18 | Temperature controller | DTE10P | 1 | |
| 19 | Relay | OMRON | 4 |
| LTQP-360 spare parts list | |||
| Item | Name | Specification | Qty,pcs |
| 1 | punch cutter | standard 40mm×20mm | 1 |
| 2 | Longitudinal sealing heating wheel | 4 | |
| 3 | horizaontal sealing heating pipe | 4 | |
| 4 | taper roller belt | 2 | |
| 5 | thermocouple | 2 | |
| 6 | material pushing belt | 5 | |
| 7 | horizaontal sealing cutting blade | 1 | |
| 8 | Tool box | 1set | |

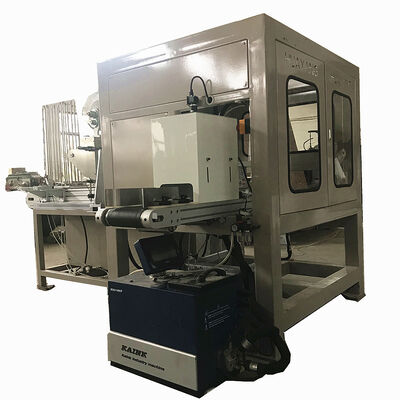

LTQL-5800B Full-auto Lid Applicator (SCARA)
I. Technical parameters
| Speed | 45-60 pcs/min(eg. Film length at 250mm) | ||
| Maxi. Packing film length | 300 mm (the film length will affect the actual production speed) | ||
| Wet wipes package Dimension | Length | Width | Height |
| 300mm | 45-120mm | 10-80mm | |
| Accuarcy | ±1.2 mm | ||
| Voltage require | 3 phases, AC380V 50/60 Hz | ||
| Power | 7.5 KW | ||
| Air Pressure | 0.4 - 0.6MPa, 1.0 m³/hr | ||
| Dimension | L 2000 * W 2650 * H 1650 mm | ||
| Weight | 1200 Kg | ||
II. Description
1. Adopting Delta's SCARA body widely used in 3C electronic products, SCARA body has superior speed, precision, linearity and verticality, which can quickly and accurately complete the operations of grabbing lids, coating lids and pasting lids on wet wipes package.
2. E-Vision system: Using Delta's DMV2000 E-vision system, a new generation of humanized operation interface, quickly establish an E-visual inspection system, using a high-level CameraLINK interface camera to achieve high-speed arithmetic processing, built-in PLC communication connection to automatically exchange data. The display and operation interface in the operation mode can be customized, and simplify for operation and maintains.
3. Touch screen: All the main commands via the7-inch touch screen, like setting position of lid grabbing , setting coating position, the track of glue spraying ( tack like rectangular, runway type, ellipse type), and other parameters compensation, all can be can be settable or modification by the touch screen.
4. Vision light source: It adopts industrial LED light source, which is more durable than civilian light source, prolongs the decay time, and the light source will NOT stroboflash, which improves the accuracy of photographing.
5. Display: It adopts 15-inch industrial display, which is more suitable for workshop use.
III. Main electrical configuration
| NO. | Item | Spec & Model | QTY | Mark |
| 1 | SCARA BODY | DRS40L3SS1BN002(included CVT) | 1 | DELTA |
| 2 | Controller #1 | DMV2000-CL2-HS | 1 | DELTA |
| 3 | Camera | DMV-CM4MCCL | 1 | DELTA |
| 4 | Camera Lens | DMV-LN16M06 | 1 | DELTA |
| 5 | Cables | DMV-CAF03CL | 1 | DELTA |
| 6 | Servo system | B2-750W | 3 | DELTA |
| 7 | Controller #2 | DVP32ES200T | 1 | DELTA |
| 8 | Touch screen | DOPB07E411 | 1 | DELTA |
| 9 | Hot-melt device | 1 | HS |
