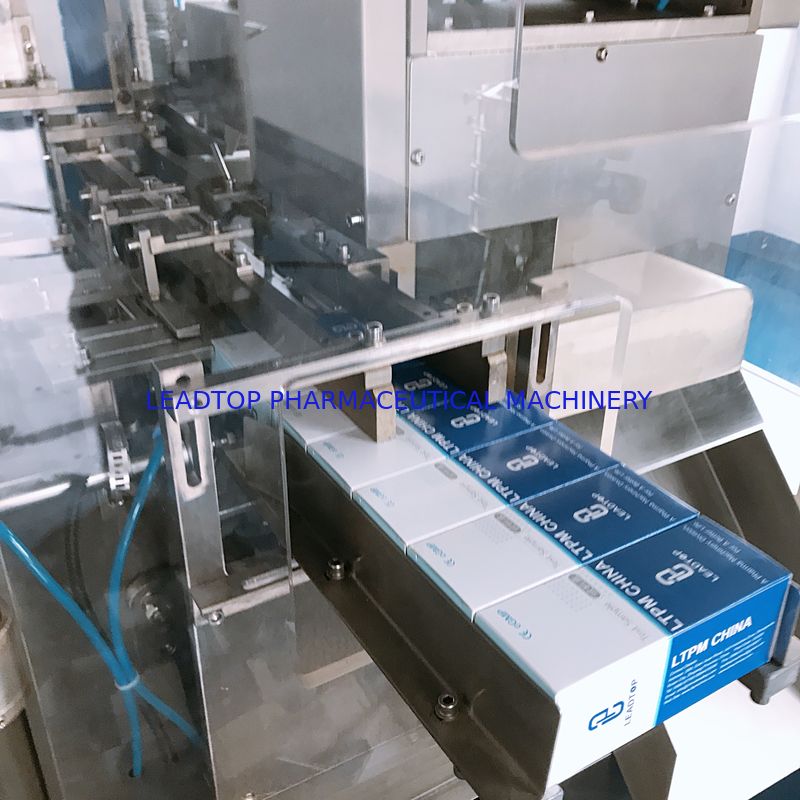

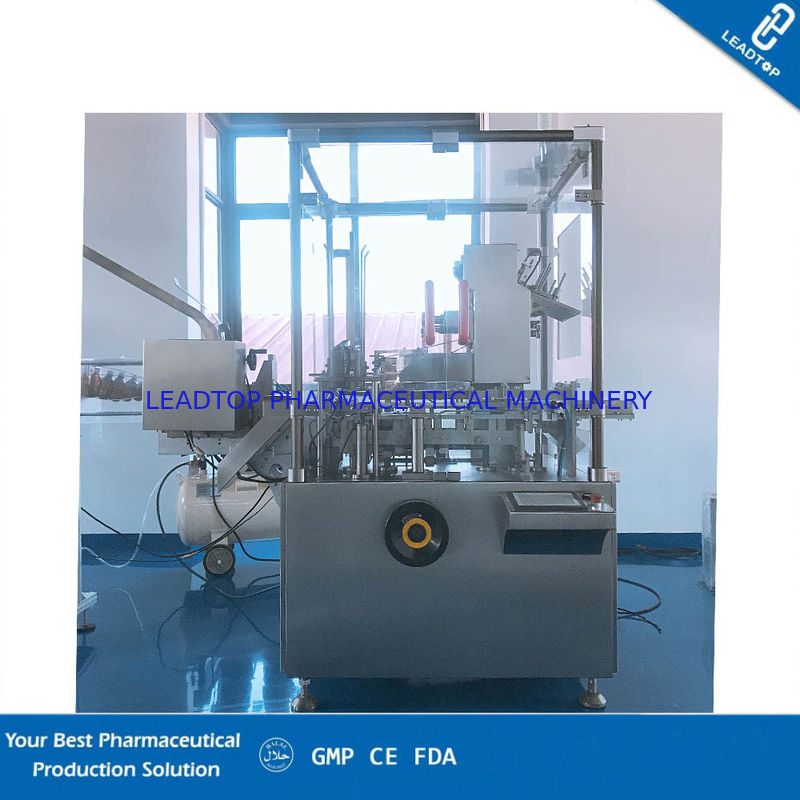

Vertical Interval Auto Cartoner Machine Pharmaceutical Blister Sachet Bottle Tube

Vertical Interval Auto Cartoner Machine Pharmaceutical Blister Sachet Bottle Tube

auto cartoning machine

cartoning equipment

Place of Origin:

China

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

ZH-120

Contact Us

Request A Quote
Product Details
Encasing Speed:
30-120 Boxes/min
Carton Gram Requirements:
250-350g/m3
Power:
220V/380V
Motor Power:
≤80dB
Air Pressure:
0.75kw
Machine Dimension(L*W*H):
2150mm*1140mm*1800mm
Product Description

ZH-120 Factory Price China Manufacturer Vertical Interval

Pharmaceutical Blister Sachet Bottle Tube Automatic Cartoning

Application:
It is suitable for ALU-PVC blister, ALU-ALU blister and similar product.
It is suitable for packing sachet, condom, adhesive bandage, soft alu strip, plaster, coffee bag and similar product.
It is suitable for medicine bottle (round bottle, flat bottle), eyedropper bottle and similar product.
It is suitable for soap, toothpaste, soft tube, pillow product, hardware and similar product.

Features:
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2. Adopt human-machine operation system.
3. Automatically stop when machine is overload.
4. Automatically reject lacking of package product and leaflet.
5. Automatically display trouble, Alarm and count finished products.
6. Stable performance, operation is easy.



Sample:






Product Parameters:



Encasing speed 30-120 boxes/min
Box Quality requirement 250-350g/m2
Dimension range (L*W*H) (65-125)mm*(30-85)mm*(12-50)mm
Quality requirement 60-70g/m2
Leaflet Unfolded leaflet specification (L*W) (80-250)mm*(90-170)mm
Fold range (1-4) fold
Compressed air Working pressure ≥0.6mpa
Air consumption 120-160L/min
Power 220V/380V
Motor power 0.75kw
Machine dimension(L*W*H) 2150mm*1140mm*1800mm
Machine weight 1100kg
