|Place of Origin:||China|
|Brand Name:||LTPM China|
|Model Number:||Custom Made|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Wooden Case|
|Delivery Time:||In 25 days after receiving the deposit|
|Payment Terms:||30% TT as deposit and 70% before shipping|
|Supply Ability:||25 sets/Month|
|Size:||Any Size According To Clients Requirement||Shape:||Round,oval,oblong,etc.|
Tablet Press Machine Mould
(Mould/punch size/shape can be designed as clients' requirement,feel free to tell us your Requirement!)

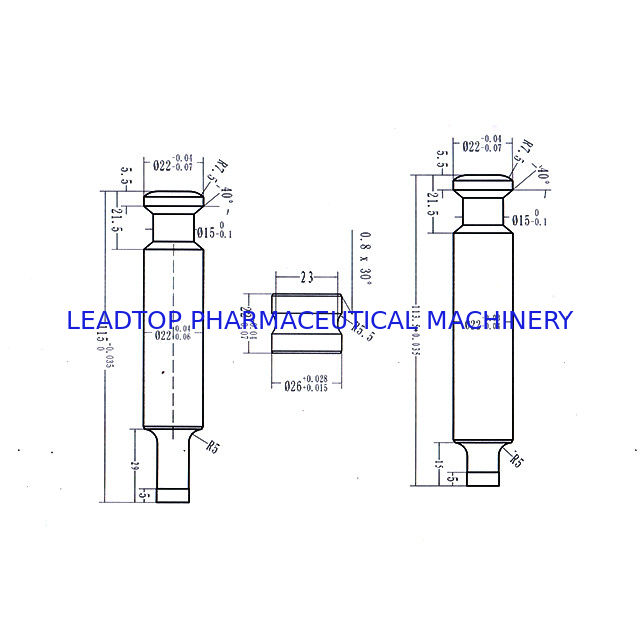

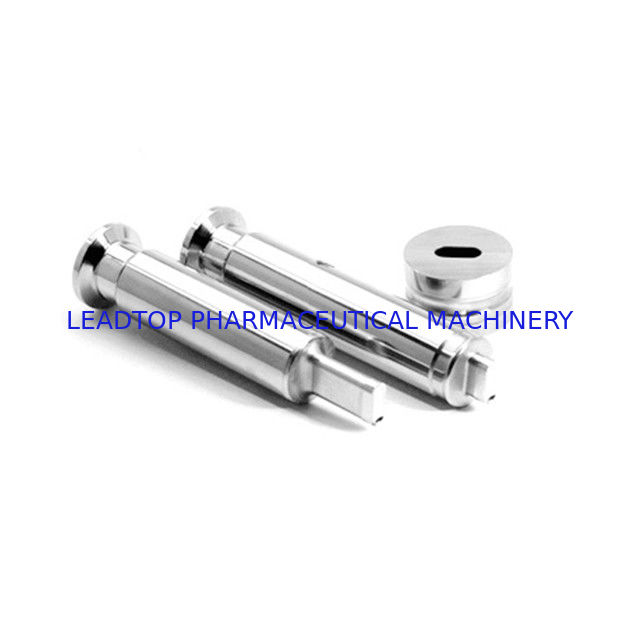

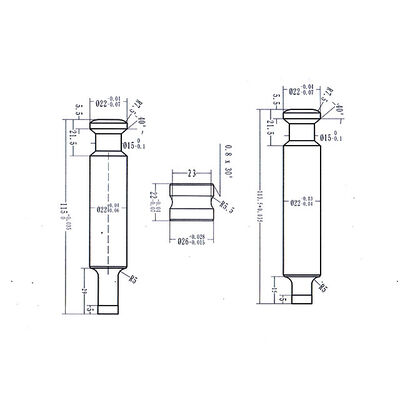

The die and punch are the most important parts in the tablet press machine, there is one set of die and punch, and they are upper punch, middle punch, lower punch.
1. Press Chinese and Western Medicine.
2. Press PTEE seal ring, camphor ball and other chemical product.
3. Press oxidation ceramic, ceramic balls and other electronic products.
4. Press magnetic bracelet baht, chain beads and other metallurgical product.
1. We have 41 years Die punch producing experience, the oldest mafanucturer of Die Punch in China.
2. Meeting the IPT standard.The die adopt carbon steel, bearing steel, chrome 12 materials.
3. Corrosion resistance, impact resistance, wear resistance, high temperature, long life.
4. 100% interchangeability.
5. Precision: 2 degree.
6. The roughness of surface can achieve Ra0.1, and the mating surface can achieve Ra0.4.
7. Hardness: Die: HRC58+2; Middle Die: HRC60+2.
|Type of P/D||Application||Standard reference|
|GZPK 100 series high speed rotary tablet press, GZPK 1000 series high speed rotary tablet press, GZPK3000 series high speed rotary tablet press, ZP1000 series rotary tablet press, KORCH, FETTE, HORN, KILIAN, MANESTY, STOCK, KIKUSUI and HATA press||IPT,EU|
ZP series tablet press
|ZP19, ZP33(ZP-17), ZP33B, ZP35, ZP35A, ZP35B Rotary tablet press||GB12253-90|
|HATA-FXSI Positive Pole Ring Former, DZIR6-1000-1 Positive Role Ring Former|
|TDP single punch tablet press, THP flower basket tablet press, ZPW21 rotary tablet press, ZPW21A Rotary tablet press, ZP15 Rotary tablet press, ZPY15 Rotary tablet press, ZP25 Rotary tablet press, ZPW23 rotary tablet press, ZPD25 Multifunctional rotary tablet press.|
