Name: CE Certified Rotary Tablet Press Machine Pill Maker With Great Performance
Brand: Leadtop Pharmaceutical Machinery
SKU: ZP-31D
Price: 32,505.00 USD
Availability: InStock

Home > products > Rotary Tablet Press Machine >

CE Certified Rotary Tablet Press Machine Pill Maker With Great Performance

rotary tablet compression machine

tablet compression machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

Model Number:

ZP-31D

Request A Quote

Product Details

Capacity:

45,000-110,000tablets/hour

Material Consist:

Painted Matel

Max. Thickness:

6mm

Max.Diameter:

12mm

Max.Pressure:

40KN

Power:

2.2Kw

1400r / Min Rotary Tablet Press Machine

Get Best Price

Video

Stainless Steel 304 Double Rotary Tablet Compression Machine Pharmaceutical Tablet Presser

Get Best Price

Video

380V 50HZ Three Phase Mini Rotary Tablet Press Machine 10000 pcs/hour ZP-5D

Get Best Price

Video

Automatic Pharmaceutical Single Punch Rotary Tablet Press Machine With 17 Stations

Get Best Price

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Contact Now

Product Description

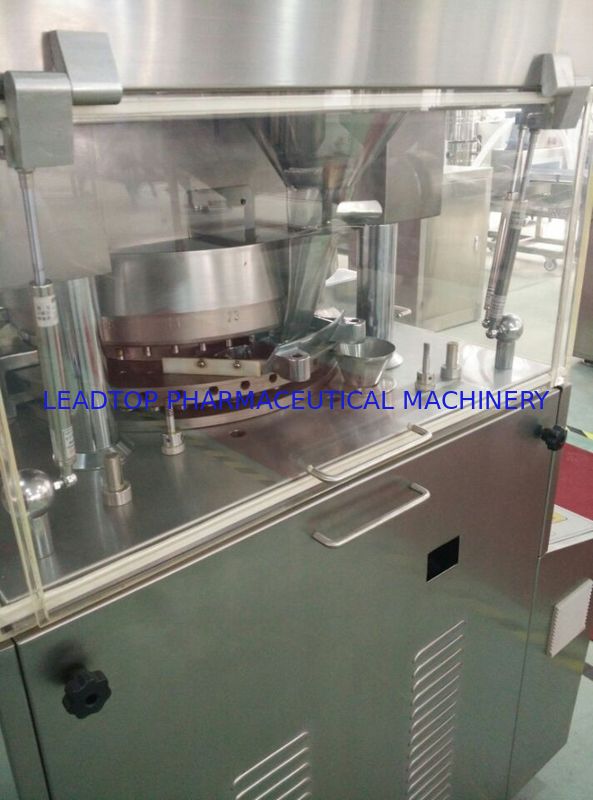

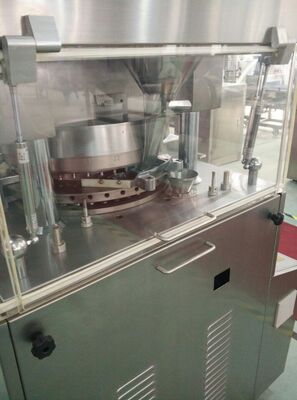

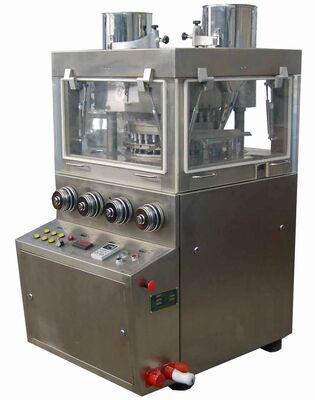

ZP-31D High Speed Rotary Mosaic Tablet Press

1. Machine Description

Tablet Equipment is a double press automatic rotation can be equipped with force-feeding system for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.

2. Some technical features

1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.

2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.
3. It is adopts the import Frequency Timing with Electromagnetism Clutch.
4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.
5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust

3. Main technical parameters

Dies	31 sets
Max. pressure	80KN
Max. Dia of Tablet	25mm
Max. Depth of Fill	15mm
Max. Thickness of Tablet	6mm
Min. Capacity	50000tablets/hour
Motor	4KW
Dimensions	11401000 1650mm
Weight	1850kg

CE Certified Rotary Tablet Press Machine Pill Maker With Great Performance 0

For more informations, please contact us by mail or telephone call, you are the most welcome here.

LTPM CHINA, Your Best Pharmaceutica Production Solution!
