Single Column Lifting Machinery Bin Stand Mixer Blender Mixer Machine

Single Column Lifting Machinery Bin Stand Mixer Blender Mixer Machine

powder mixing equipment

powder mixer machine

Place of Origin:


Brand Name:



CE Certificate

Model Number:


Contact Us

Request A Quote
Product Details
Mixing Speed:
3~12 Rpm
Working Area:
2600×3175×2800 Mm
Mixed Precision:
Loading Coefficient:
Product Description

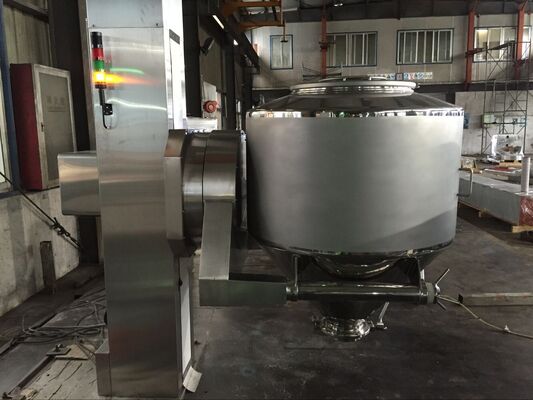

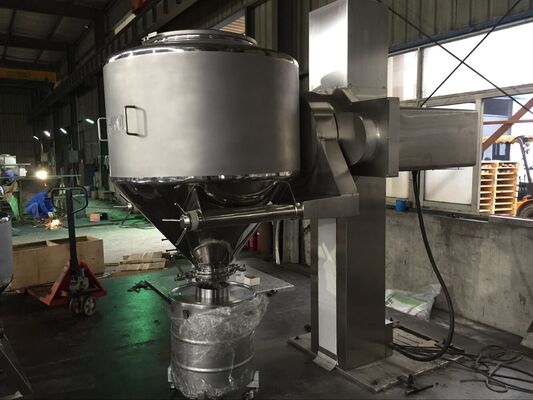

Single Column Lifting Machinery Bin Stand Mixer Blender Mixer Machine



  • The machine can automatically complete all actions including lifting,clamping,mixing ,lowering,etc.An automatic lifting hopper mixer and several mixing hoppers of different specifications can meet the mixing requirements of large batches and diversified vatieties of producst.It is an ideal machine for mixing in pharmaceutical plants.It is also widely used in such inductries as medicine,chemical industry,food,etc.


  • 1. The mining co efficiency reaches to 99%, and charging coefficient ranges from 50% to 80%
  • 2. Applying infrared appliances to gain an isolated working area, and butterfly valve against wrong way operation, controlled by PLC control system.
  • 3. It can clamp bins of different model and volume, so it adapts to the mixing demands of large output and diversity products.
  • 4. This machine is easy and quickly to operate. All operations were simplified in an automatic operation process.
  • 5. It could save space, and it is light than original mixer, thus fit for building floor installation.
  • 6. it’s equipped with safeguard system to ensure the center of gravity always balanced within the safety range. Thus it always works stably and reliably without vibration.
  • 6. Mixing extent is large, which improves the motion of material inside bin and avoids material separation, enhancing mixing uniformity.
  • 7. It has lifting function. After mixing procedure, it could discharge material in place thus saving the transfer procedures and reduce the working strength.
  • 8. It can work with weighting system according to the requirements of clients. This system could be connected with PLC.
  • 9. Control the material discharging uniform automatically, easy to control and calculate the batch of transportation.
  • 10. Automatic pneumatic discharge control which avoid the operator to climber with un-safety.
  • 11. Separated control cabinet which avoid any hurt of the workers.
  • 12. Double layers skirts type discharging device with no powder leakage, and confirms to GMP requirements.


  • The machine is composed of machine base,gyrator,driving system,lifting and lowering system,braking system and control system.
  • When it works,push the mixing hopper into the gyrator.
  • Enter the automatic operation program,and input the set parameter group program code.
  • Press the "confirm" button on the touch screen to automaticallly lift the mixing hopper to the designated position and automatically clamp it.
  • After the PLC control system receives the clamping signal,the driving system works and carries out mixing according to the set time and rotation speed.
  • After the set parameters are reached,the gyrator will automatically stop vertically.At the same time,the braking system works and the mixing is finished.
  • Then enter the manual operation program,press the "lower" button,the mixing hopper in the gyrator will fall to the designated position and stop automatically,and process data will be printed.
  • Then the mixing hopper is pushed out and transferred to the next procedure.

Main Technical Data:


Total Power (KW) 5.1
Frequency (Hz) 50
Voltage (V) 380
Recommended Coefficient of charge (%) 50~70
Dimension (L*W*H) (mm) 2350×1200×2500
Working area (L*W*H) (mm) 2350×2600×2500
Working speed (rpm) 3~12
Rotation direction Bothway
Max. lifting height (mm) Undetermined
Lifting speed (mm/min) 780
Max. rotating dia. (mm) 2600
Max. working load capacity (material net weight) (Kg) 350
Total weight (exclusive tank) (Kg) 1400
Apply to tank spec (MCL series) (L) ≤800
Noise, dB(A) ≤75
