Name: Drum Holder With Manual Z-axis Lift And X-axis Calibration For Precise Bin Mixer Operations
Brand: Leadtop Pharmaceutical Machinery
SKU: BlenTop-2S
Price: 32,505.00 USD
Availability: InStock

Home > products > Powder Mixing Machine >

Drum Holder With Manual Z-axis Lift And X-axis Calibration For Precise Bin Mixer Operations

Manual Z-axis Drum Holder

Precise Drum Holder

Bin Mixer Drum Holder

Place of Origin:

Zhejiang，China

Brand Name:

LTPM CHINA

Certification:

Model Number:

BlenTop-2S

Request A Quote

Drum Holder With Manual Z-axis Lift And X-axis Calibration For Precise Bin Mixer Operations

Product Details

Product Name:

Bin Blender

Functional Uses:

Experimental Scenarios

Application:

Chemical, Food And Other Industries

Voltage:

220V

Warranty:

5 Years

Structural Designs:

The Material Bucket Can Be Installed Up And Down

Country Of Origin:

China

Experimental Scenarios 220V Bin Blender For Chemical Food Industries

Get Best Price

Video

V Shape Dry Powder Flour Blender Mixer Machine For Pharmaceuticals

Get Best Price

Video

180L Barrel Pharmaceutical Powder Mixer Machine 15rpm V Series

Get Best Price

Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer

Get Best Price

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Contact Now

Product Description

Product Description

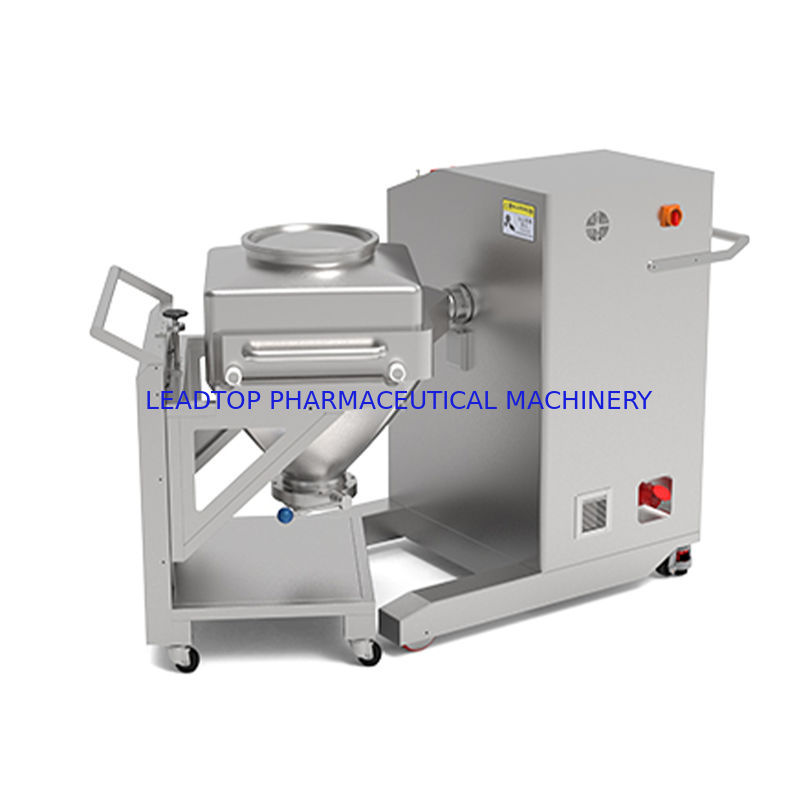

This mobile drum holder is designed for experimental mixers, providing efficient material handling in R&D and small-scale production. It enables vertical lifting and precise positioning of drums (bins) for seamless feeding into mixers, supporting powders, granules, and liquids. The manual Z-axis lift ensures accurate height adjustment, while the X-axis ±1° alignment system guarantees perfect coaxiality with the mixer for spill-free operation. Its portable trolley design allows easy movement between workstations, improving workflow efficiency. Ideal for chemical, food, and industrial applications, this drum holder enhances mixing precision while maintaining flexibility in lab and pilot-scale environments.

Design Points

Z-Axis Manual Lift Design
Lifting mechanism: manually rotate the T-screw to realize the manual lifting and lowering of the drum in the direction of Z-axis.Simple structure, high transmission efficiency and accurate positioning.

Guiding devices: To ensure the stability of the drums during lifting and lowering, it is necessary to set up guiding devices,suchas guide wheels and or chutes. The drums are placed through the drums with the guide device to ensure that they will not shake orshift during the lifting process.

X-Axis ±1° Corrected Axis Design
Calibration principle: When the mixer is loading and unloading the barrels, the coaxiality between the mixer shaft and the barrel shaft ≤ φ0.05 can be loaded and unloaded. x-axis ±1° correction of the axis can be realized by setting an adjustable support structure on the trolley. When the material barrel is mounted on the cart, by adjusting the angle of the support structure, the axis of the material barrel can be aligned with the axis of the mixer, and the error can be controlled within ±1°.
