Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer

Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer

3a Magnetic Mixer Agitator

Sanitary Bottom Magnetic Stirrer

Stainless Steel Bottom Magnetic Stirrer

Place of Origin:

Zhejiang, China

Brand Name:

LTPM China

Certification:

CE

Model Number:

MagMix-Series

Contact Us

Request A Quote
Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer
Product Details
Working Temperature:
-30-200℃
Product Name:
Bottom Magnetic Mixer
Range Of Spindle Speed(r.p.m):
180 - 380 R.p.m
Voltage:
230V/50Hz
RELATED PRODUCTS
Good price 180L Barrel Pharmaceutical Powder Mixer Machine 15rpm V Series online Video

180L Barrel Pharmaceutical Powder Mixer Machine 15rpm V Series

Get Best Price
Good price Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer online

Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer

Get Best Price
Good price Industrial Mixer Agitators Stirrer 380 r.p.m Dosing System For Sewage Water online

Industrial Mixer Agitators Stirrer 380 r.p.m Dosing System For Sewage Water

Get Best Price
Good price Stainless Steel Mixing Agitator Emulsifying Homogenizer Silicone Sealant Mixer online

Stainless Steel Mixing Agitator Emulsifying Homogenizer Silicone Sealant Mixer

Get Best Price
Contact Us
86-0577-65158955
info@chinaleadtop.com
86-0577-65158944
Contact Now
Product Description
Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer 0
Magnetic Stirring
Working Principle: The Outer Magnet Is Driven By The Gear Motor To Rotate, And The Magnetic Field Of The Outer Magnet Is Transmitted To The Inner Magnet Through The Isolation Sleeve The Inner Magnet And The Outer Magnet Attract Each Other To Generate Torque For Synchronous Operation Then The Inner Magnetic Steel Drives The Stirring Shaft And The Paddle To Rotate To Meet The Stirring Requirements Features: 1. The Original Shaft Dynamic Rotary Seal Is Replaced By The Isolation Sleeve To Isolate The Dead Seal. There Is No Wear, Heat, Deformation, Aging, Damage, High Temperature And High Pressure Problems To Ensure That The Seal Has No Leakage. 2. The Magnetic Stirring Torque Can Be Configured According To The Power To Protect The Motor From Overload And Damage To Ensure Safe Operation. 3. Long Service Life And Less Wearing Parts. Frequent Replacement Without Shaft Seal Mission Issues. Ensure The Safety Of Sealing In The Environment Where The Reaction And Reverse Fermentation Work Continuously For a Long Time. High Vacuum Sealed Environment Without Leakage
Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer 1

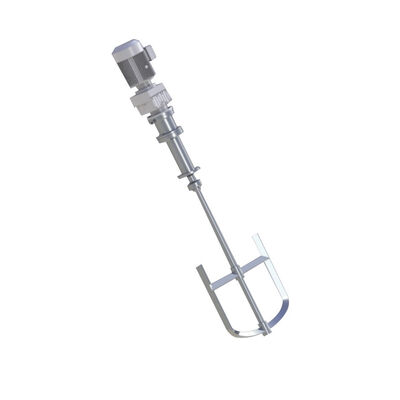

MagMix-S Magnetic Stirring On Magnetic Suspension (External Magnetic Drive Structure)
Scope Of Application: 1. Equipment Agitators Such As Fermentation Tanks, Reactors, Liquid Dispensing Tanks, Etc. In The Pharmaceutical And Biological Industries 2. High-Pressure, Flammable, Explosive, Toxic And High-Pressure Equipment Agitators Such As Reaction Kettles And Hydrogen Reaction Reactors In The Chemical Industry

Features:

1. The Original Shaft Dynamic Rotary Seal Is Replaced By The Isolation Sleeve To Isolate The Dead Seal. There Is No Wear, Heat, Deformation, Aging, Damage, High Temperature And High Pressure Problems To Ensure That The Seal Has No Leakage. 2. The Magnetic Stirring Torque Can Be Configured According To The Power To Protect The Motor From Overload And Damage To Ensure Safe Operation. 3. Long Service Life And Less Wearing Parts. Frequent Replacement Without Shaft Seal Mission Issues. Ensure The Safety Of Sealing In The Environment Where The Reaction And Reverse Fermentation Work Continuously For a Long Time. High Vacuum Sealed Environment Without Leakage 4. According To The Needs Of The Process And Medium, Different Forms And Quantities Of Agitators Can Be Combined To Meet The Requirements 5. The Magnetic Stirring On The MagMix Type Magnetic Suspension Is Magnetic Suspension In The Axial Direction, So The Support Bearing Only Bears The Radial Force Without The Axial Load, Which Greatly Improves The Bearing Life And Improves The Efficiency. 6. The Imported Ceramic Bearing Has No Reaction With The Medium And No Corrosion 7. Online CIP Cleaning And SIP Sterilization Can Be Used To Ensure Hygiene Without Dead Ends.

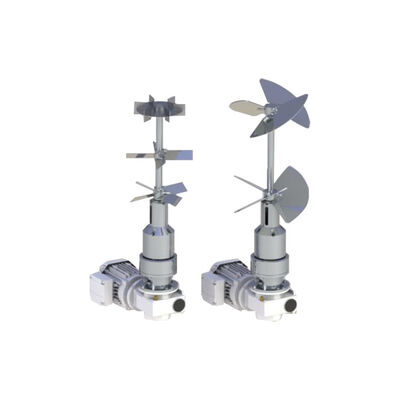

MagMix-L Magnetic Stirring On Magnetic Suspension (Internal Magnetic Drive Structure)
Scope Of Application: Fermentation Tanks, Reactors, Liquid Dispensing Tanks And Other Equipment Agitators In The Pharmaceutical And Biological Industries
Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer 2

Features:

1. Compared With The MagMix-S External Magnetic Drive, It Is Easy To Disassemble And Assemble, And The Sterilization Is More Thorough. 2. Compared With The MagMix-S External Drive, The Shaft Length Is Shorter And The Shaft Stability Is Better. 3. Long Service Life And Less Wearing Parts. Frequent Replacement Without Shaft Seal Mission Issues. Ensure The Safety Of Sealing In The Environment Where The Reaction And Reverse Fermentation Work Continuously For a Long Time. High Vacuum Sealed Environment Without Leakage 4. According To The Needs Of The Process And Medium, Different Forms And Quantities Of Agitators Can Be Combined To Meet The Requirements 5. The Imported Ceramic Bearing Has No Reaction With The Medium And No Corrosion 6. Online CIP Cleaning And SIP Sterilization Can Be Used To Ensure Hygiene Without Dead Ends.
Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer 3

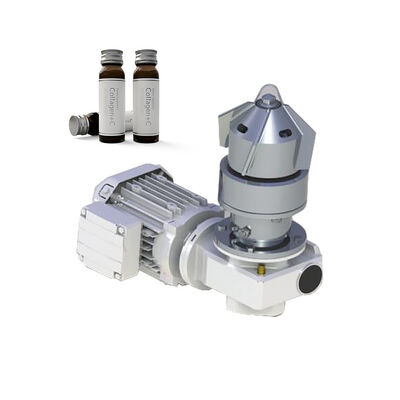

MagMix(Magnetic Force Below)
Hygienic Lower Magnetic Stirring Is a Bottom-Mounted Lower Stirrer Through Magnetic Transmission. It Is a Fully Enclosed, Leak-Free And Pollution-Free Stirring Method. Because It Is a Non-Contact Transmission Torque Without a Transmission Shaft Through Magnetic Transmission, It Is The Static Seal Of The Isolation Sleeve Isolation Method Replaces The Dynamic Seal Of The Drive Shaft, Which Can Completely Solve The Leakage Problem That Cannot Be Solved By The Mechanical Seal. The Equipment Is Mainly Used For Dissolving, Mixing And Ingredients In The Pharmaceutical, Food And Other Industries. Its Structure Is Composed Of Inner Magnetic Steel (With Stirring Paddle), Spacer Sleeve, Movable Bearing, Outer Magnetic Steel, Driving Device, Etc.
Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer 4



MagMix-A
The spacer can be removed from the tank. It is convenient for the maintenance inspection of the spacer sleeve. Avoid damage to the spacer sleeve resulting in the event that the tank needs to be cut.
Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer 5



MagMix-B
Can be disassembled as a whole from the tank. More convenient than MagMix-A type Maintenance, repair and installation are more convenient. Suitable for small diameter tanks.
Sanitary 3a Magnetic Mixer Agitator Stainless Steel Bottom Stirrer 6



MagMix-C
The isolation sleeve is welded with the tank to reduce the maintenance and cleaning of the sealing ring.

Features:

1.Replacing The Mechanical Seal Of The Transmission Shaft With The Static Seal Of The Welded Isolation Sleeve Can Completely Solve The Leakage Problem That Cannot Be Solved By The Mechanical Seal. 2.Simple Structure, Low Maintenance Cost, Easy Disassembly, Easy Cleaning, No Dead Ends, 3.The Bottom Device Is Stirred, Which Can Be Stirred When The Material Is Small. The Unique Design Of The Stirring Blade Can Be Suitable For Stirring And Mixing Of Various Media. 4.Can Be Idling For a Short Time

Application: Stirring Devices For Manufacturing Large Infusions, Small Injections, Vaccines, Blood Products, Insulin, Oral Liquids And Other Stainless Steel Reaction Tanks, Fermentation Tanks, Batching Tanks, And Liquid Storage Tanks
