Professional 15 kg/batch Freeze Dryer with 70 mm Shelf Spacing and Touch Screen Operation for Industrial Food Processing

Professional 15 kg/batch Freeze Dryer with 70 mm Shelf Spacing and Touch Screen Operation for Industrial Food Processing

Brand Name:	LTPM China
Model Number:	LTDG-Series
MOQ:	1 Set
Price:	Negotiation
Payment Terms:	L/C,T/T
Supply Ability:	15 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Weight:

1200kgs

Item Name:

Freeze Dryer

Dry Area:

1.08 Square Meter

Tray Area:

1.02 Square Meter

The Total Volume Of Dehydration:

15 Kg/batch

Shelf Spacing:

70 Mm

Heating Mode:

Conduction Mode

Operation System:

Touch Screen

Packaging Details:

Export Standard Wooden Case

Supply Ability:

15 Set/Month

Highlight:

15 kg/batch Freeze Dryer

70 mm shelf spacing Lyophilizer

Touch Screen Operation Vacuum Freeze Drying Machine

Product Description

Professional Industrial Vacuum Drying System

This food-grade freeze dryer combines reliable vacuum freeze-drying technology with a hygienic design to gently dehydrate food under low-temperature conditions. It effectively preserves the natural color, flavor, nutritional content and original shape of various food products, including fruits, vegetables, meat, seafood, herbs and functional foods. Manufactured with food-safe stainless steel and user-friendly control systems, it ensures stable operation, easy cleaning and high drying efficiency, making it widely suitable for small-scale processing, experimental production and industrial food manufacturing.

Key Features

Hygienic and Easy-to-Clean Structural Design: The chamber and key components are made of SUS304 stainless steel with surface roughness Ra≤0.6μm via fine polishing; no components are installed at the bottom of the chamber and frozen library, which facilitates thorough cleaning and maintenance and meets sterile production requirements.
Stable and Durable Key Components: The shelf is made of aluminum alloy D31 (6363) with anode oxidation treatment, featuring high strength, good flatness and long service life; the pipelines adopt argon arc welding technology and undergo multi-procedure leakage tests to ensure long-term stable and leak-free operation.
Efficient and Energy-Saving Circulation System: The circulation system adopts Danish GRUNDFOS circulating pump with no leakage and low noise; the electric heating is controlled by PID mode with high energy efficiency and stable temperature, and the heat exchange components select Swedish SWEP/Alfa Laval products to improve heat exchange efficiency and reduce energy consumption.
Humanized and User-Friendly Operation Design: The equipment is equipped with multiple observation windows with 12V lighting on the chamber and condenser for real-time observation of the internal working status; the door opening direction is user-selectable, and the material handling system adopts a hanging rail design, making the ground cleaner and the material transmission more efficient.
Complete Spare Parts and Verification Support: The equipment is provided with a full set of matching spare parts including refrigerant, refrigeration oil, filters and sensors for emergency replacement; a complete set of verification documents and technical manuals are supplied, covering IQ, OQ, PQ and other links, which is convenient for customers to carry out equipment verification and daily maintenance.

Technical Specifications

Power	167Kw, 380V±10%, 50HZ, 3 Phase, 5 Wire
Vacuum Function	19.8kw
Refrigeration Function	92kw
Heating Function	55.5kw
Compressed Air	≥40L/min (P=0.5~0.8Mpa)
Cooling Water Quantity	≥50m³/h (T≤30℃, P=0.2-0.3Mpa)
Defrost Water Quantity	≥4000kg (T≥30℃, P=0.1-0.2Mpa)
Whole Volume	Dry chamber and Condenser: D=φ2100mm L=6650mm Freeze system vacuum system control system: L=2600mm W=2200mm H=2000mm Final dimension based on design
Structure	Split
Total Weight	15T (Approx.)

Applications

Machine Details

Chamber

Cabinet, board level, and hose are tested after multiple procedures to ensure without leakage.

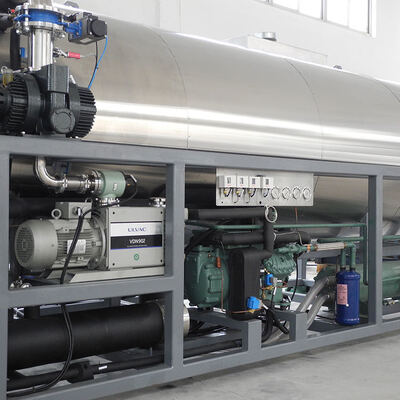

Vacuum System

According to the characteristics of freeze-dried fruit, use rotary vane vacuum pump + roots pump unit, the pumping speed is larger and more efficient.

Condense Pipes

Argon welding, forming an internal and external, to ensure pipes cleanly and without leak.

Shelves

Shelf through a dedicated machining, can guarantee high demand flatness.
