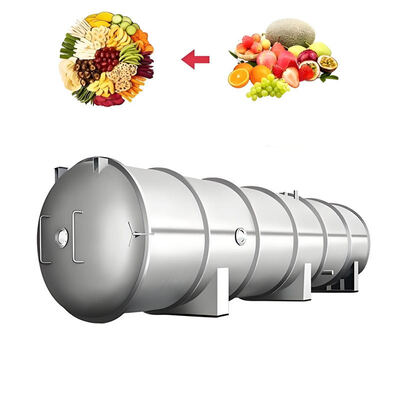

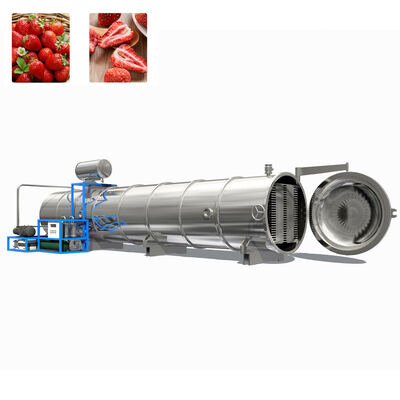

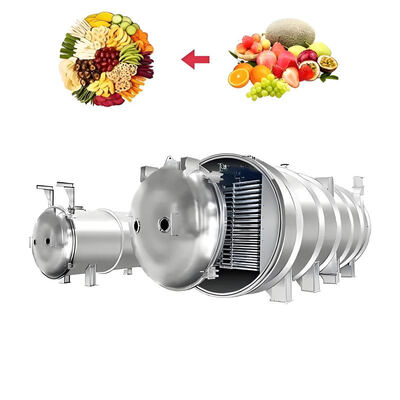

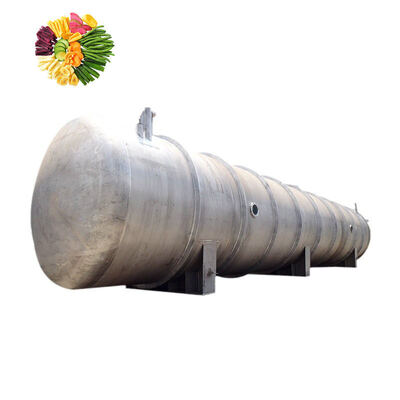

Factory Direct Price Commercial Vacuum Freeze Drying Equipment for Various Food Materials Freeze Dry Machine

Factory Direct Price Commercial Vacuum Freeze Drying Equipment for Various Food Materials Freeze Dry Machine

Brand Name:	LTPM China
Model Number:	LTDG-Series
MOQ:	1 Set
Price:	Negotiation
Payment Terms:	L/C,T/T
Supply Ability:	15 Set/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Weight:

1200kgs

Item Name:

Freeze Dryer

Dry Area:

1.08 Square Meter

Tray Area:

1.02 Square Meter

The Total Volume Of Dehydration:

15 Kg/batch

Shelf Spacing:

70 Mm

Heating Mode:

Conduction Mode

Operation System:

Touch Screen

Packaging Details:

Export Standard Wooden Case

Supply Ability:

15 Set/Month

Highlight:

commercial vacuum freeze dryer

food freeze drying machine

pharmaceutical freeze drying equipment

Product Description

This professional food-grade freeze dryer is an ideal industrial solution for food processing, fruit and vegetable processing, meat processing, seafood, snack food, health food and pet food production. Adopting advanced vacuum low-temperature freeze-drying technology, it can effectively retain the original nutrition, color, aroma and shape of materials, with excellent rehydration and long storage life. Made of food-safe stainless steel, it complies with international food hygiene standards, featuring stable operation, high efficiency, energy saving and easy cleaning. Suitable for factories, manufacturers and food enterprises, it is widely used in small-batch trials and large-scale industrial production, and well received by global customers.

Key Features

LTDG-100 vacuum freeze drying machine for global industrial use
BITZER compressor high efficiency freeze dryer 415V/380V
CGMP FDA EU compliant freeze dryer for food pharmaceutical
110.16㎡ shelf large capacity vacuum freeze dryer
Global after-sales service freeze drying equipment supplier
Energy saving vacuum freeze dryer for tropical fruit processing
High precision PID temperature control freeze drying machine
Customizable industrial freeze dryer for SEA Middle East Europe
2000KG/batch condensate ice commercial freeze dryer
ULVAC vacuum pump low failure rate freeze dryer
One-stop freeze drying solution for biotech health products
FOB Shanghai global shipping industrial freeze dryer
SUS304 sterile structure vacuum freeze drying equipment
Long-term maintenance service industrial freeze dryer
High value-added material processing vacuum freeze dryer

Technical Specifications

Power	167Kw, 380V±10%, 50HZ, 3 Phase, 5 Wire
Vacuum Function	19.8kw
Refrigeration Function	92kw
Heating Function	55.5kw
Compressed Air	≥40L/min (P=0.5~0.8Mpa)
Cooling Water Quantity	≥50m³/h (T≤30℃, P=0.2-0.3Mpa)
Defrost Water Quantity	≥4000kg (T≥30℃, P=0.1-0.2Mpa)
Whole Volume	Dry chamber and Condenser: D=φ2100mm L=6650mm Freeze system vacuum system control system: L=2600mm W=2200mm H=2000mm Final dimension based on design
Structure	Split
Total Weight	15T (Approx.)

FREEZE-DRYING OPERATION PROCESS

1.Clean and organize the materialsthoroughly

2.Slice or chop the materials

3.Arrange the materials on a tray and placethem into the freeze-drying chamber

4.Set the freeze-drying programand let it run intelligently

5.After the freeze-drying program ends,just pack the materials into bags

Tags:

Stable Durable Industrial Grade 15 kg/batch Vacuum Freeze Drying Machine with 70 mm Shelf Spacing and Touch Screen Operation
