Name: Stainless Steel 316L Sanitary Flat Vane Pump CIP SIP Compatible Low Shear Design for Pharmaceutical Food Beverage Industries
Brand: Leadtop Pharmaceutical Machinery
SKU: BOBP-Series
Price: 32,505.00 USD
Availability: InStock

Home > products > Pump Agitator >

Stainless Steel 316L Sanitary Flat Vane Pump CIP SIP Compatible Low Shear Design for Pharmaceutical Food Beverage Industries

CIP SIP Flat Vane Pump

Sanitary Flat Vane Pump

Low Shear Flat Vane Pump

Place of Origin:

Zhejiang，China

Brand Name:

LTPM Boao

Certification:

Model Number:

BOBP-Series

Request A Quote

Stainless Steel 316L Sanitary Flat Vane Pump CIP SIP Compatible Low Shear Design for Pharmaceutical Food Beverage Industries

Product Details

Mixer Type:

Agitator

Material Processed:

Food, Other, Cosmetics, Liquid

Product Type:

Cosmetic, Food, Liquid, Shampoo, Soap, FERTILIZER, Other

Voltage:

220V

Warranty:

5 Years

Range Of Spindle Speed(r.p.m):

180 - 380

Material:

SUS304, SUS304L, SUS316, SUS316L, Ti

Additional Capabilities:

Emulsify

Agitator Mixer Type 316L Stainless Steel Self-Priming Pump For Sensitive Fluids In Biopharma Dairy And Cosmetic Manufacturing

Get Best Price

220V Sanitary Self-Priming Pump Bubble-Tolerant Design Zero Dead Legs and Emulsifying Capabilities for Viscous Media

Get Best Price

Stainless Steel 316L Sanitary Flat Vane Pump CIP SIP Compatible Low Shear Design for Pharmaceutical Food Beverage Industries

Get Best Price

High Viscosity Fluid Handling Sanitary Flat Vane Pump Gentle Product Protection No Dead Space for Dairy Cosmetic Chemical

Get Best Price

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Contact Now

Product Description

Product description

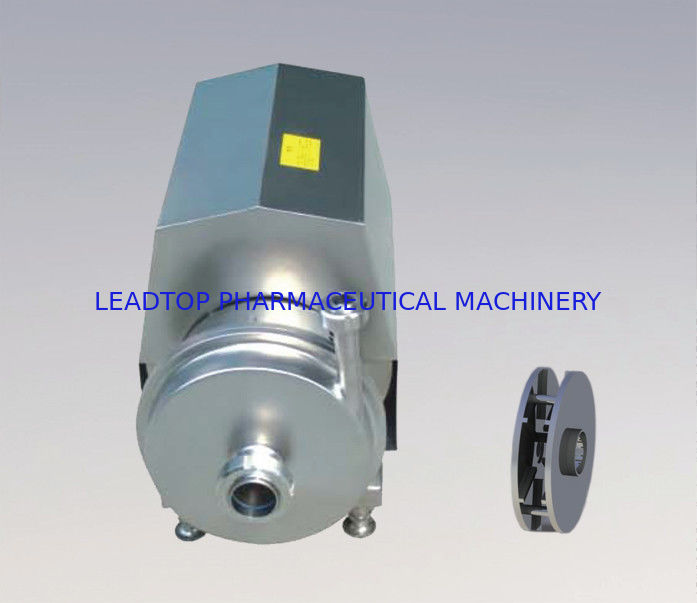

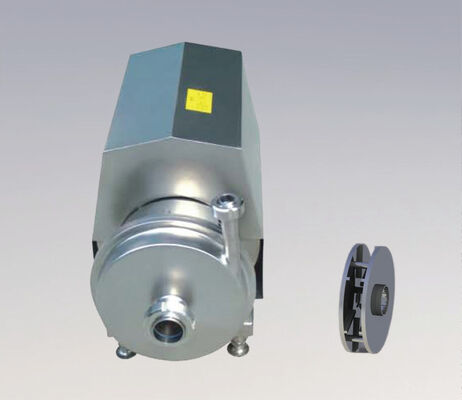

The principle is that the special flat board is adopted as the vane.through the physical viscous driving and the special structure of flat vane,the medium will form laminar flow to pull the medium from the inlet and push it to the outlet.BOBP model centrifuga flat vane pump is designed to transport fluid medium through the physical viscosity driving and the laminar flow formed by the medium.Therefore,the medium will make bar-shaped flow inside the pump without impact,the medium contacting the vane and the flow layer or tube wall are static to the vane,andthey can move synchronously without friction,so that there is no medium impact that may damage the product,and the laminar flow of pump can be protected. Therefore,the flat vane pump can absolutely solve the common problems of prodct damage,abrasion of vane and pump body caused by media,vane blocking and occurrence of cavitation etc.The special functions of flat vane pump enable the pump to work under severe conditions more reliably ,more excellently,more economically and more efficiently.Most important of all,it will not damage the medium.It is applicable for transporting media of different viscosity,media of high viscosity,media with solid particles,media requinng that the particles should be protected from being damaged and media requiring soft transportation and not beeasily impacted by high speed centrifugal impact.

First class product protection

This is a sanitary flat vane pump used for transporting blood plasma, fruit juice and milk products, and the product loss reaches the minimum. The fruit juice is very sensitive to the impact and abrasion, and users require there shall have no destroy. The product loss of any other pump reaches 20-40%, but use our flat vane pump, this figure decreases to zero.

Corrosion

These rocks (10-80mm) are put into the 4 inches of the flat vane pump. After continuous operation for several days, there is no damage or abrasion on the internal surface of pump. The flat vane pump has no large abrasion under the working conditions of strong corrosion, which is the rea-son of the service life of our pump is so

Solid particles

This is a flat vane pump used for transporting kelp in a factory. Many media may be blocked in the common pump cavity, butthere is no such occurrence in our flat vane pump.

Media containing gas and air

Because of the non-impact and sheet flow, even the bubbles will not be broken during the transportation. They can pass through the flat vane as smoothly as solid particles. Even if the transported fluid contains gas of more than 70%, there will have no occurrence of explosion and cracking of bubbles and there will have no occurrence of cavitation, noise and vibration etc
