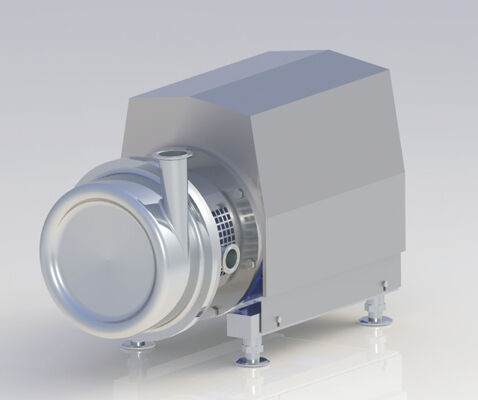

Name: 220V Sanitary Self-Priming Pump Bubble-Tolerant Design Zero Dead Legs and Emulsifying Capabilities for Viscous Media
Brand: Leadtop Pharmaceutical Machinery
SKU: ZTSP-Series
Price: 32,505.00 USD
Availability: InStock

Home > products > Pump Agitator >

220V Sanitary Self-Priming Pump Bubble-Tolerant Design Zero Dead Legs and Emulsifying Capabilities for Viscous Media

Bubble-Tolerant Self-Priming Pump

Emulsifying Capabilities Self-Priming Pump

220V Sanitary Self-Priming Pump

Place of Origin:

Zhejiang，China

Brand Name:

LTPM Boao

Certification:

Model Number:

ZTSP-Series

Request A Quote

220V Sanitary Self-Priming Pump Bubble-Tolerant Design Zero Dead Legs and Emulsifying Capabilities for Viscous Media

Product Details

Mixer Type:

Agitator

Material Processed:

Food, Other, Cosmetics, Liquid

Product Type:

Cosmetic, Food, Liquid, Shampoo, Soap, FERTILIZER, Other

Voltage:

220V

Warranty:

5 Years

Range Of Spindle Speed(r.p.m):

180 - 380

Material:

SUS304, SUS304L, SUS316, SUS316L, Ti

Additional Capabilities:

Emulsify

Agitator Mixer Type 316L Stainless Steel Self-Priming Pump For Sensitive Fluids In Biopharma Dairy And Cosmetic Manufacturing

Get Best Price

220V Sanitary Self-Priming Pump Bubble-Tolerant Design Zero Dead Legs and Emulsifying Capabilities for Viscous Media

Get Best Price

Stainless Steel 316L Sanitary Flat Vane Pump CIP SIP Compatible Low Shear Design for Pharmaceutical Food Beverage Industries

Get Best Price

High Viscosity Fluid Handling Sanitary Flat Vane Pump Gentle Product Protection No Dead Space for Dairy Cosmetic Chemical

Get Best Price

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Contact Now

Product Description

Product Description

ZTSP axial flat vane pump is to improve the inlet front to the end of the shaft based on the flat vane pump,so the seal will not be damaged when working under the neg ative pressure.can solve the mechanical seal's problem of wearresistant the pump will be workingbetter,bettr, safety,safety and widely used

The difference with the common centrifugal pump

1. The inlet of the common centrifugal pump is front of the casing. The inlet of the ZJSP pump in the behind of the casing, the direction is the same as the drive shaft. The advantage of this structure as below:

1.) the inlet is in the negative pressure when the pump is working, so the shaft seal will not leak. To lower the request of the shaft seal.

2.) the motor shaft will not be bounced as for the different pressure of the outlet to rub the casing by the impeller.

2. The common centrifugal pump’s shaft seal is using mechanical seal.

ZJSP is using the lip seal.The advantage of this structure as below:

1.) the seal will not be broken by the engine race.

2.) the seal will not be broken by the liquid with particle.

3.) it’s easy to change the seal.

4.) the cost of the seal is only 20% of the mechanical seal.

5.) the seal is much easier to be clean than mechanical seal.
