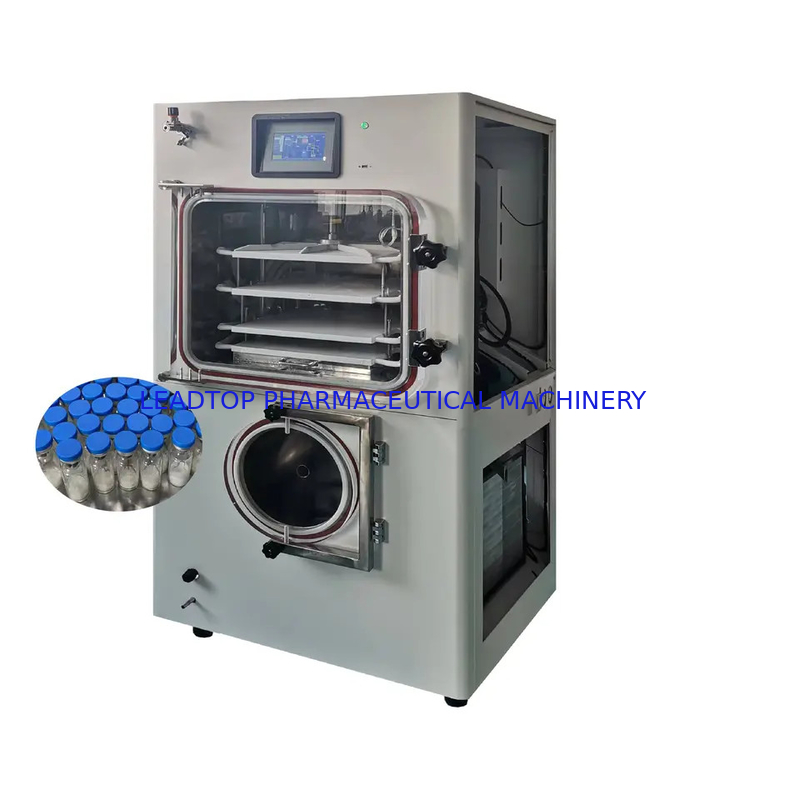

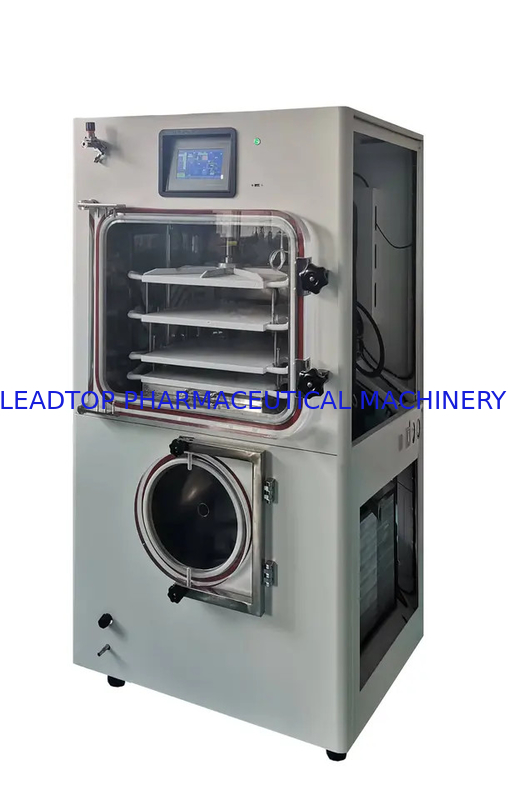

The pilot-scale freeze-drying machine is also called the research-and-development freeze-drying machine, which refers to the ideal vacuum freeze-drying equipment for the intermediate test and small-scale production. Pilot-scale freeze-drying machine is a small in-situ freeze-drying equipment, which is suitable for pilot-scale workshops of pharmaceutical factories and small-scale production use. It can also be used for freeze-drying treatment of food,Chinese medicinal materials, etc. It realizes the automation of drying and sublimation. The pilot-scale freeze-drying machine has shelf heating and programming functions, and can memorize the freeze-drying curve, which is convenient for users to explore the production freeze-drying process. The products are divided into ordinary type and gland type(Capping type), which are widely used in pharmaceutical factories, food factories, life sciences and other places that require freeze-drying process.
| No | Item | Data |
| 1 | Effective area of the trays | 0.5m2 |
| 2 | Materials | 5-6kg |
| 3 | power | 3PH /380V/50hz |
| 4 | Effective layer size | 410mm*410mm |
| 5 | Number of layers | 3＋1 |
| 6 | Minimum temperature of cold trap | ≤-75℃(No load) |
| 7 | Space between tray | 100mm |
| 8 | Layer material | AISI 304 Stainless Steel |
| 9 | System ultimate vacuum | ≤ 5 Pa |
| 10 | Total power | 5.5kw |
| 11 | Stoppering function | overhead , hydraulic |
