Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE
Model Number:
LTDG-Series
Contact Us

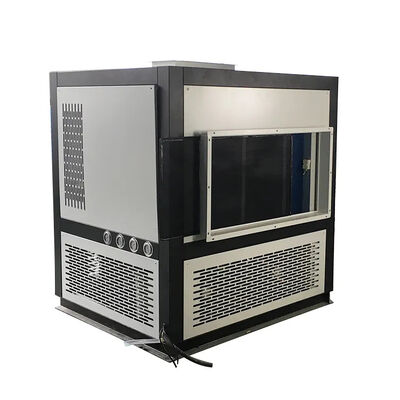

Freeze drying machine system by the refrigeration system,vacuum system,heating system,electrical instrumentation control system.Freeze drying machine main components for drying oven,condenser ,refrigeration units,vacuum pump,heating/coolingdevices.etc.
Freeze drying (hereinafter referred to as the freeze-dried) is to aquifer material,first freeze into solid,and then make the
moisture from the solid sublimate to gas ,to remove moisture and ways of preserving material .In the process of compressed air drying ,the freeze drying is by lowering the temperature of compressed air,make the moisture in the compressed air precipitation.The working principle of freeze drying machine (person) like refrigerator,compressed air after frozen compressed air piping,compressed air temperature drop to the required temperature,as to meet the requirement of drying .
| Model no. | LTDG-Series | Working condition | 5~38℃ |
| Dehumidifying capacity | 30 kg/h | Serve area | 150~220 sq.m |
| Power supply | 380v/50Hz | Circulating air flow | 4000 m³/h |
| Max input power | 18.5 Kw | Overall size | 1540x1400x1740 mm |
| Max input current | 30.0 A | Net weight | 400 KG |
| Compressor | Dakin | Packed weight | 500 KG |
| Cooling type | Air cooled | Heating type | Condensing |
| Structure | Box iron frame-type | Control panel | Touch screen |
