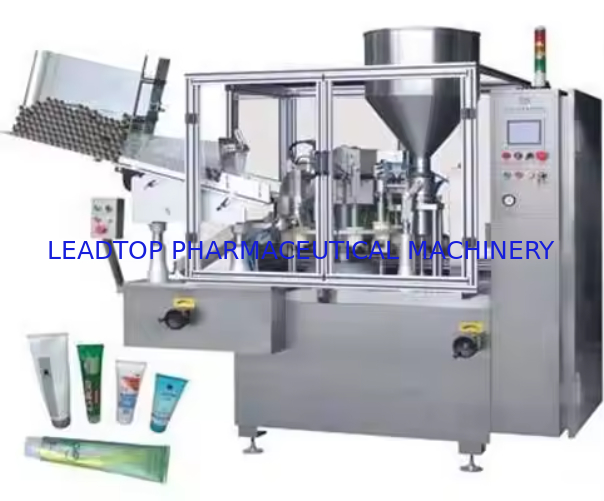

This model machine adopts 12station design. Suitable for all kinds of folding Packing for metal tube. can easily realize the plastic tube and the metal tubePacking by replacing the moulds and parts. It is an ideal equipment for ALU tube, plastic tube and multiple tube filling and sealing in cosmetic, foodstuff, adhesives etc industries, and it complies with the standard of GMP.
Technical characters
1. High grade operation screen with LCD display and PLC control, easy operation and more humanization By stepless speed adjust, parameter set, output count, pressure index and failure display.
2. Automatically executing tube supply,photocell register, inert gas filling (optiona1), material filling and sealing, batch number printing, final products output.
3. High prevision photocell register, that reduces the chromatic aberration scope.
4. Adjustment parts external in position, position digital display, convenient and accurate adjust (suitable for variable products producing).
5. Mechanical, photoecectrical, electric, pneumatic integrative controlling, reaches no tube no filing function: warning if tube error positioned or pressure too 10w, it will automatic stop while open the protective door.
Technical parameters
| Product |
Automatic Tube Filling And Sealing Machine |
| Total Power |
2Kw 380V/220V 50Hz |
| Heat sealing power |
3Kw |
| Tube material |
Plastic Tube, Laminate Tube |
| Tube diameter(ram) |
φ10-φ60 |
| Tube length(mm) |
50-300 (customizable) |
| Filling volume |
5-800ml/pcs (Adjustable) |
| Filling accuracy |
≤±1% |
| Speed(r/min) |
2.5-7 |
| Product capacity(pc/min) |
30-70 (Adjustable) |
| Air supply |
0.55-0.65Mpa 0.1 m 3 /min |
| Overall dimension |
2620×1020×1980mm |
| Machine weight |
1100kg |
| Certificate |
CE ISO |
| Warranty |
1 Year |
Feature highlights
The LTPMCHINA Automatic Soft Tube Filling and Sealing Machine is designed for industrial use, suitable for filling and sealing cosmetic, foodstuff, and adhesive products. It features a 12-station design with PLC control, LCD display, and stepless speed adjustment for efficient operation. The machine supports various tube materials, including plastic and aluminum, with customizable tube length and adjustable filling volume. It ensures high precision with ≤±1% filling accuracy and operates at speeds of 30-70 tubes per minute. Additional functions include automatic tube supply, inert gas filling (optional), batch number printing, and safety mechanisms like automatic stop if the protective door is opened.
Supplier highlights
This supplier is both a manufacturer and trader, collaborating with Fortune 500 companies and providing quality control. They offer full customization and design-based customization. Main exports are to Taiwan, Mexico, and Vietnam. Customer satisfaction stands at 100.0%.
